Waterproof IP67 ODVA-SC UPC APC to ODVA-SC CPRI Fiber Patch Cord for 4G,LET Mobile Network,1M,SM,G657A1,7.0mm,2Core,LSZH Jacket

Waterproof IP67 ODVA-SC UPC APC to ODVA-SC CPRI Fiber Patch Cord for 4G,LET Mobile Network,1M,SM,G657A1,7.0mm,2Core,LSZH Jacket

Regular price $47.00
Regular price $35.00 Sale price $47.00
Sale Sold out
Shipping calculated at checkout.

Waterproof IP67 ODVA-SC UPC APC to ODVA-SC CPRI Fiber Patch Cord for 4G,LET Mobile Network,1M,SM,G657A1,7.0mm,2Core,LSZH Jacket

Remind: Fiber Connector can be ST,SC,FC,LC , Ferrule can be APC or UPC

When you place the order,please remark your detailed requirements

Description:

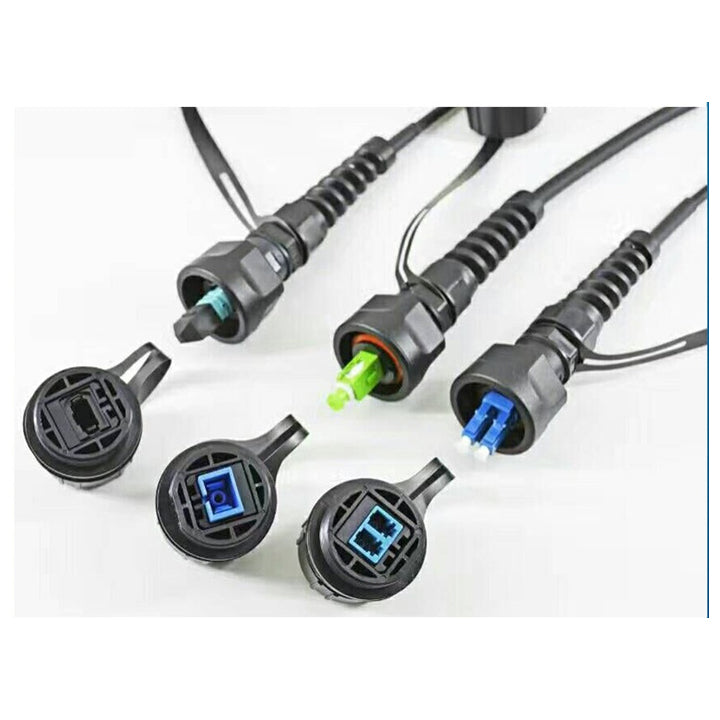

IP67 ODVA Duplex Fiber Optic Connectors

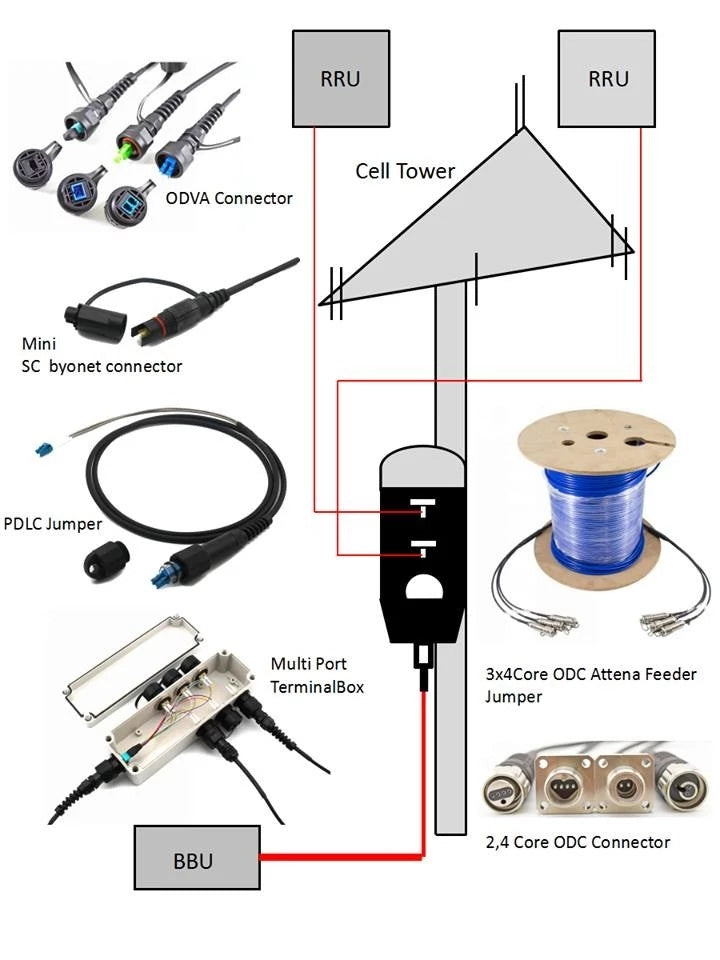

ODVA PDLC BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

ODVA PDLC BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

With the development of distributed antenna syatems(DAS), ODVA,PDLC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.

Typical Usages

FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE

Typical Advantage

IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof

Performance Parameters

Connector End A Compact RRH/BBU Helix Cover Connector
End B DLC (duplex LC),or SC,FC,ST,MPO,MTP......
Fiber Core 2,4…12
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.2 0.3
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
