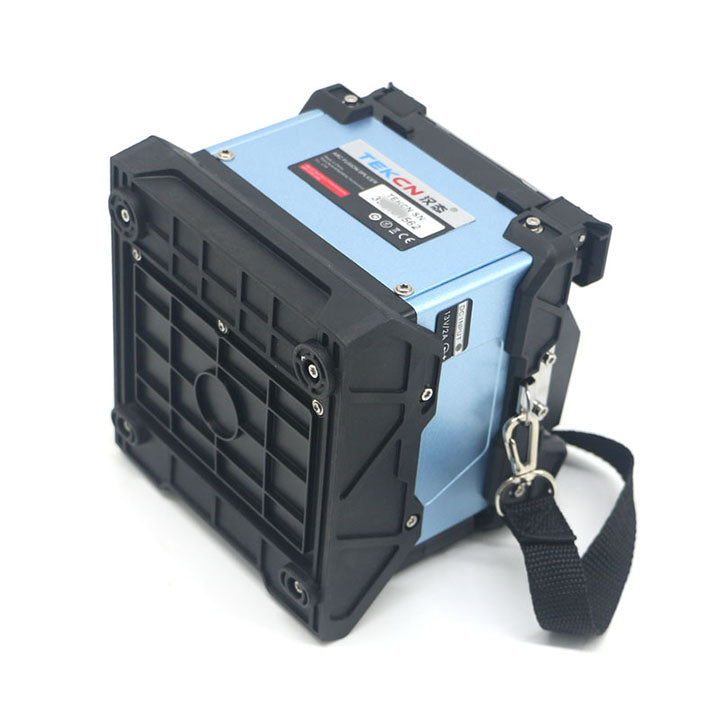

TEKCN TC-600 6 Motores Core Alignment Fusion Splicer

TEKCN TC-600 6 Motores Core Alignment Fusion Splicer

Regular price $2,099.00
Regular price $2,199.00 Sale price $2,099.00
Sale Sold out
Shipping calculated at checkout.

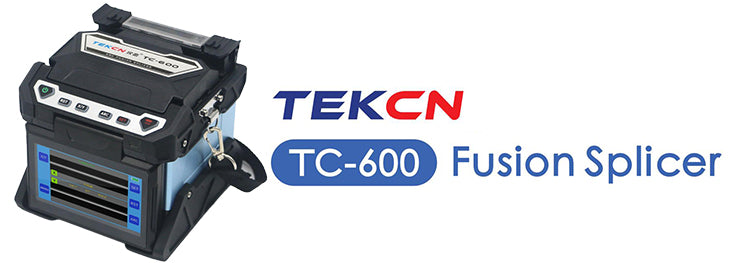

Fusion Splicer TEKCN TC-600 Price


Cost-Effective Investment, Most Valuable Return

  • 6 Motors Core Alignment;
  • Smart Anti-Counterfeit Electrodes;
  • Ultra Low Splice Loss;
  • GPS Track;
  • Stable performance, long duration;
  • New GPU System, energy Saving;
  • Full HD capacitive touch screen.

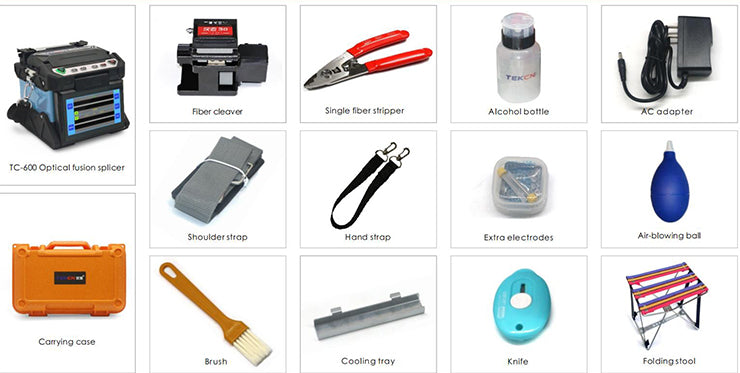

Package Includes

TEKCN TC-600 Fiber Fusion Splicer -
  1. TC-600 Optical fusion splicer
  2. Carrying case
  3. Fiber cleaver
  4. Single fiber stripper
  5. Alcohol bottle
  6. AC adapter
  7. Shoulder strap
  8. Hand strap
  9. Extra electrodes
  10. Air-blowing ball
  11. Brush
  12. Cooling tray
  13. Knife
  14. Folding stool


Fiber alignment

6 Motors core alignment

Applicable Fibers Single fiber. SMF (G.652/G.657), SMF(G.651), DSF (G.653), NZDSF(G.655), BI(G.657)
Cladding Diameter 80~150μm
Sheath Diameter 100~1000μm
Cleave Length 8~16mm
Splice Mode Total 100 modes, supports self-defined mode and parameters
Typical Splice Time 6 Sec. SM FAST
Typical Splice Loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS) and 0.02dB(BI)
Return Loss >>60dB
Heating Mode Max. 20
Heating Time 16 Sec.
Applicable Protection Sleeve 10~60mm
Splice Result Storage Last 20,000 splices
Splice Image Storage Max.800
Viewing Methods 2 axis CMOS camera with 4.3” HD color capacitive touchscreen
Magnification Supports X / Y or both X and Y simultaneously, maximum up to 760X magnification
Port MicroSD and USB port for software upgrade / data management
Electrode Lfe Typical 5000 splices
Battery Compacity 4000mAh battery, more than 220 times splicing and heating; Standard charging time 3 hours (up to 80% electric quantity in 2 hours)
Power Supply AC100-240V, 50/60Hz
Tension Test 2N
Operating Condition Temperature: -10 to 50°C; Humidity: 0 to 95%RH; Altitude: 0 to 5,000m above sea level, Wind: 15m/sec
Storage Condition Temperature: -10 to 80°C (Battery: -10 to 40deg C)
Humidity: 0 to 95%RH
Size / Weight 133W x 144D x 133H (mm) / 1.5kg (1.8kg including battery)
GPS(Option) GPS positioning and tracking system through inbuilt SIM card
