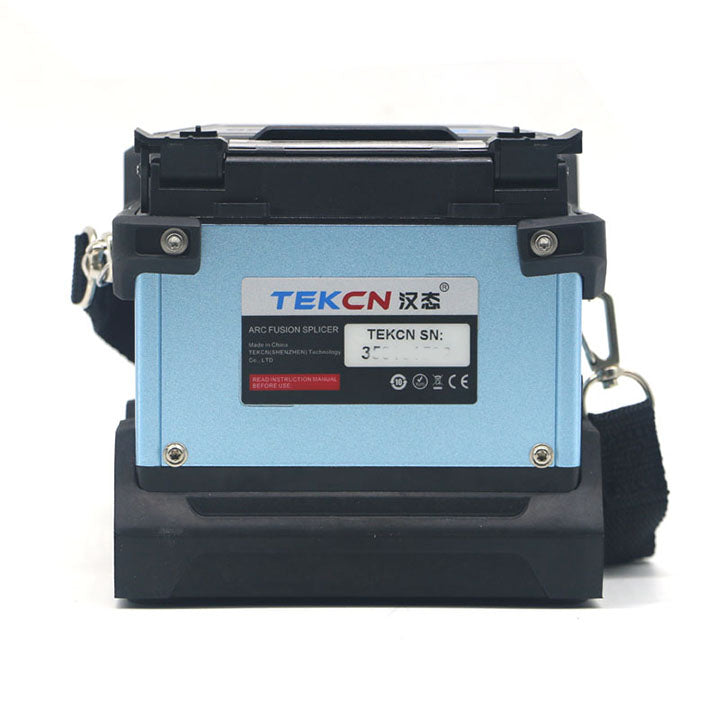

TEKCN TC-400 PAS Core Alignment Fusion Splicer

TEKCN TC-400 PAS Core Alignment Fusion Splicer

Regular price $1,099.00
Regular price $1,200.00 Sale price $1,099.00
Sale Sold out
Shipping calculated at checkout.
TEKCN TC-400 Fiber Optic Fusion Splicer Machine

TEKCN FUSION SPLICER TC-400

Cost-Effective Investment, Most Valuable Return

  • PAS Core Alignment;
  • Smart Anti-Counterfeit Electrodes;
  • Ultra Low Splice Loss;
  • GPS Track;
  • Stable performance, long duration;
  • New GPU System, energy Saving;

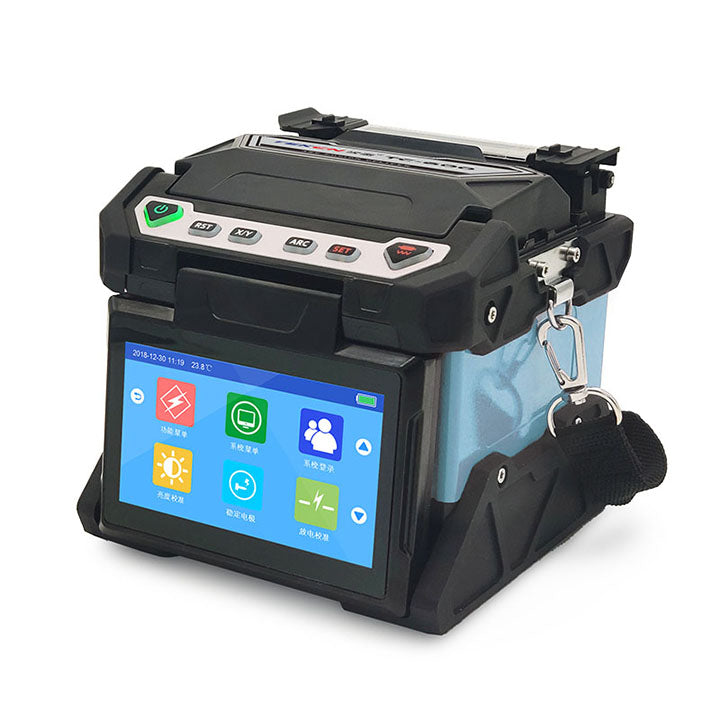

  • Full HD capacitive touch screen.

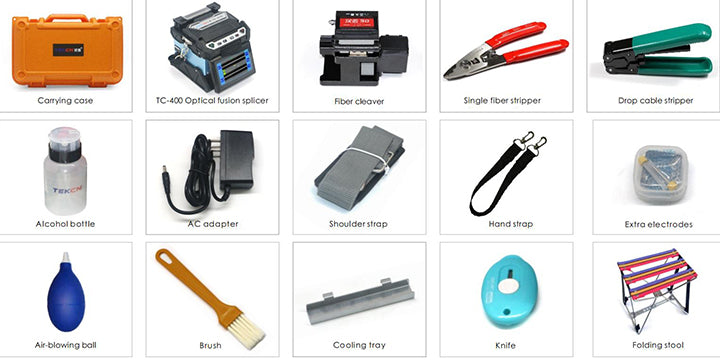

Package Includes

TC-400 optical fusion splicer - Splicing Machine
  1. Carrying case
  2. TC-400 Optical fusion splicer
  3. Fiber cleaver
  4. Single fiber stripper
  5. Drop cable stripper
  6. Alcohol bottle
  7. AC adapter
  8. Shoulder strap
  9. Hand strap
  10. Extra electrodes
  11. Air-blowing ball
  12. Brush
  13. Cooling tray
  14. Knife
  15. Folding stool

Specifications

Fiber alignment

PAS core alignment

Applicable Fibers Single fiber. SMF (G.652/G.657), SMF(G.651), DSF (G.653), NZDSF(G.655), BI(G.657)
Cladding Diameter 80~150μm
Sheath Diameter 100~1000μm
Cleave Length 8~16mm
Splice Mode Total 100 modes, supports self-defined mode and parameters
Typical Splice Time 6 Sec. SM FAST
Typical Splice Loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS) and 0.02dB(BI)
Return Loss >>60dB
Heating Mode Max. 20
Heating Time 16 Sec.
Applicable Protection Sleeve 10~60mm
Splice Result Storage Last 20,000 splices
Splice Image Storage Max.800
Viewing Methods 2 axis CMOS camera with 4.3” HD color capacitive touchscreen
Magnification Supports X / Y or both X and Y simultaneously, maximum up to 760X magnification
Port MicroSD and USB port for software upgrade / data management
Electrode Lfe Typical 5000 splices
Battery Compacity 4000mAh battery, more than 220 times splicing and heating; Standard charging time 3 hours (up to 80% electric quantity in 2 hours)
Power Supply AC100-240V, 50/60Hz
Tension Test 2N
Operating Condition Temperature: -10 to 50°C; Humidity: 0 to 95%RH; Altitude: 0 to 5,000m above sea level, Wind: 15m/sec
Storage Condition Temperature: -10 to 80°C (Battery: -10 to 40deg C)
Humidity: 0 to 95%RH
Size / Weight 133W x 144D x 133H (mm) / 1.5kg (1.8kg including battery)
GPS(Option) GPS positioning and tracking system through inbuilt SIM card
