Sumitomo ER-10 Fusion Splicer Replacement Electrodes | TYPE-39/66/81C/82C/82C+/600C Compatible

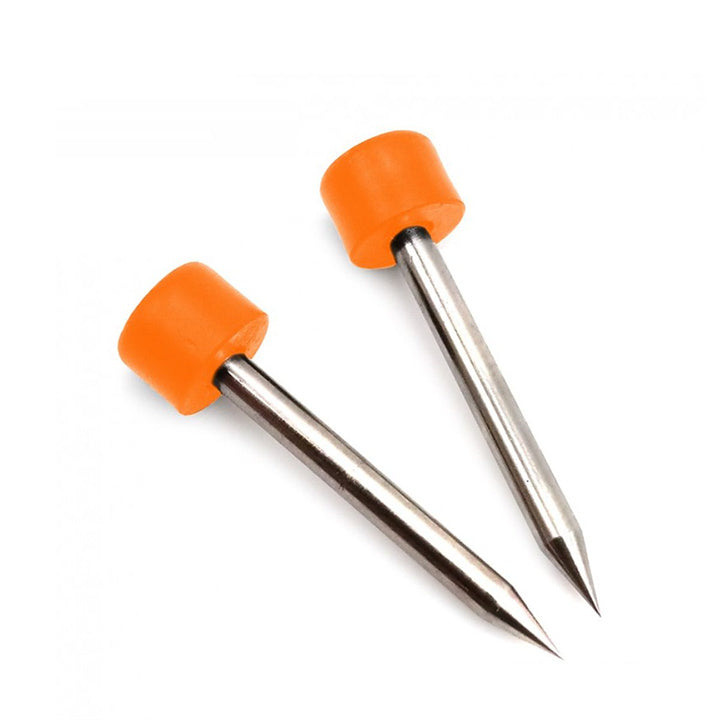

Sumitomo ER-10 Fusion Splicer Replacement Electrodes – TYPE-39 / TYPE-66 / TYPE-81C / TYPE-82C / TYPE-82C+ / TYPE-600C

Electrodes are the most critical consumable in any fusion splicer — and worn electrodes are the leading cause of high splice loss, arc instability, and calibration failures in the field. The Sumitomo ER-10 is the OEM-compatible replacement electrode set for Sumitomo Electric fusion splicers, covering six popular models: TYPE-39, TYPE-66, TYPE-81C, TYPE-82C, TYPE-82C+, and TYPE-600C.

Replacing your ER-10 electrodes at the recommended interval restores arc symmetry and stability, brings splice loss back to factory-spec levels, and protects your splicer’s arc chamber from damage caused by degraded electrode tips. Fresh electrodes are the single most cost-effective maintenance action you can take to keep your Sumitomo splicer performing at its best.

Compatible Sumitomo Fusion Splicer Models

• Sumitomo TYPE-39
• Sumitomo TYPE-66
• Sumitomo TYPE-81C
• Sumitomo TYPE-82C
• Sumitomo TYPE-82C+
• Sumitomo TYPE-600C

Key Features

• OEM-Compatible Design: Engineered to Sumitomo Electric specifications for consistent arc performance, splice quality, and splicer compatibility
• Restores Arc Stability: Fresh ER-10 electrodes eliminate arc asymmetry, high splice loss, and frequent calibration errors caused by electrode wear
• Protects Splicer Components: Regular replacement prevents arc chamber damage and extends the overall service life of your Sumitomo splicer
• Broad Model Coverage: One part number covers 6 Sumitomo splicer models — ideal for teams and service centers managing multiple units
• Easy Field Replacement: Standard electrode format for quick swap with minimal downtime during installation or maintenance operations
• Consumable Item: No warranty — standard for all fusion splicer electrodes across all brands

When to Replace Your Sumitomo ER-10 Electrodes

Sumitomo Electric recommends replacing ER-10 electrodes every 3,000–5,000 arc discharges under normal operating conditions. Most Sumitomo splicers display the current arc count in the maintenance or diagnostic menu. Replace your electrodes sooner if you observe any of the following warning signs:

• Increasing average splice loss despite correct fiber preparation and cleave quality
• Frequent arc calibration failures or arc check errors
• Visible electrode tip erosion, pitting, or asymmetric wear when inspected
• Splicer error messages related to arc power, arc position, or electrode condition
• Inconsistent splice results on fiber types that previously spliced reliably

How to Replace Sumitomo ER-10 Electrodes

Electrode replacement on Sumitomo TYPE-series splicers is a straightforward field procedure. Open the wind protector and V-groove cover, then carefully remove the worn electrodes using the electrode removal tool included with your splicer. Insert the new ER-10 electrodes and ensure they are fully and evenly seated. Close the covers and run the splicer’s built-in arc calibration (arc check) routine before resuming splicing. Always handle electrodes by the body — never touch the tungsten tips with bare hands, as skin oils can contaminate the arc surface.

Specifications

Package Contents

• Sumitomo ER-10 Replacement Electrode Set × 1 pair

Frequently Asked Questions

Q: Are ER-10 electrodes compatible with all Sumitomo TYPE-82C variants?
A: Yes. The ER-10 is compatible with both the TYPE-82C and TYPE-82C+ (Plus) variants, as well as the TYPE-39, TYPE-66, TYPE-81C, and TYPE-600C models.

Q: How often should I replace the electrodes on my Sumitomo TYPE-82C or TYPE-600C?
A: Sumitomo recommends replacing ER-10 electrodes every 3,000–5,000 arc discharges. Check the arc count in your splicer’s maintenance menu. If you notice increasing splice loss, arc instability, or calibration failures before reaching this interval, replace the electrodes immediately.

Q: Why do worn electrodes cause high splice loss?
A: Fusion splicer electrodes erode gradually with each arc discharge due to the extreme temperatures involved (over 2,000°C). As the tungsten tips erode, the arc becomes asymmetric and unstable, resulting in poor fiber alignment during fusion, higher splice loss, and inconsistent results. Fresh ER-10 electrodes restore the symmetric, stable arc required for low-loss splices.

Q: Do I need to run arc calibration after installing new ER-10 electrodes?
A: Yes. After installing new ER-10 electrodes, always run the splicer’s arc calibration (arc check) routine before resuming splicing. This allows the splicer to characterize the new electrodes and optimize arc power for your current altitude and environmental conditions.

Q: Why are fusion splicer electrodes sold without a warranty?
A: Fusion splicer electrodes are consumable items that wear out through normal use — similar to printer ink cartridges or cutting blades. No warranty coverage for consumables is the industry standard across all brands including Sumitomo, Fujikura, INNO, and Furukawa. For bulk pricing or technical questions, contact us at info@splicermarket.com.
