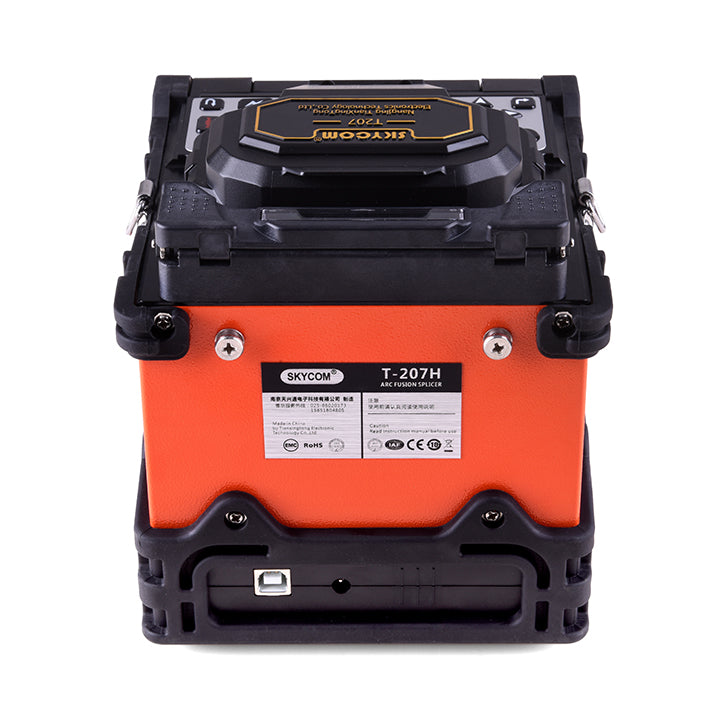

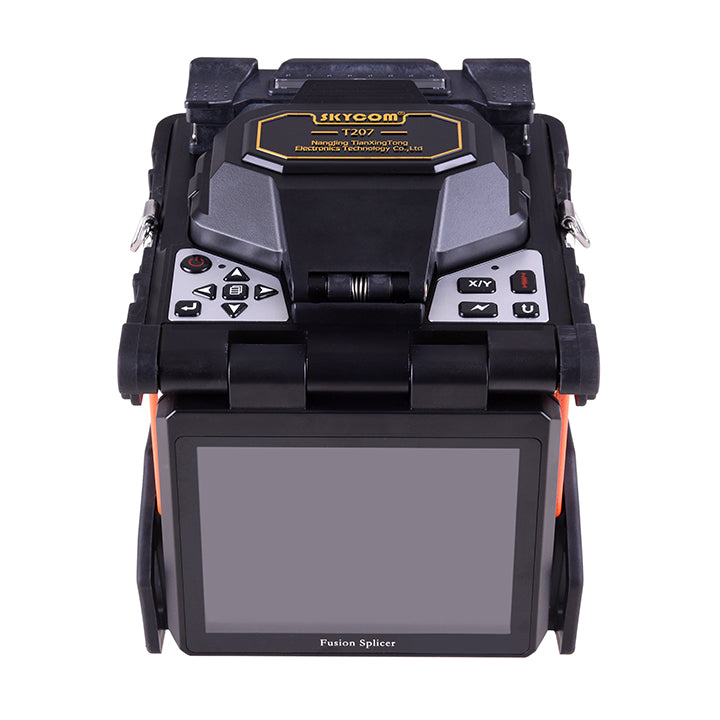

Skycom Muti-function Fusion Splicer T-207X
Skycom Muti-function Fusion Splicer T-207X
Couldn't load pickup availability
SKYCOM FUSION SPLICER T-207X
- Display: 5 inches high resolution colorful LCD monitor;
- Average Splice Time & Tube-heat Time: 10 Secs & 30 Secs;
- Lithium Battery: up to 180 times of continuous splice and heat;
- Magnification: Simultaneous X and Y views with 300 times;
- 400 times magnification of fiber core views;
- Splicing Mode: Auto & Manual & Full-Automation
- Storage: up to 6,000 groups of splice results
- New developed technology providing wind and dust resistance
- New technology of fiber core alignment, enhanced accuracy
- New 3-in-1 cutting fixture for rubber-insulated wire (Patented)
Specifications
|
Applicable Fibers |
SM, MM, NZ-DS, EDF, Pigtail, FTTH drop cable SC/LC/FC connector (optional function) |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Return Loss |
≥60dB |
|
Quick Splicing Time |
8 seconds |
|
Quick Heating Time |
25 seconds |
| Tension Test | 2.0N(200gf)(Standard) |
| Splicing Program | 50 groups |
|
Operating Language |
Chinese, English, French, Portuguese, Spanish, Italian, Russian, Indonesian |
|
Operating Conditions |
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
|
Monitor |
5 inches high resolution colorful LCD display |
| Fiber Image Magnification | X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times |
|
Storage of Splice Result |
6,000 groups of latest splice results |
|
Optical Fiber Fixture |
3-in-1 cutting fixture; Multipurpose 1+N fixture (Optional for SC/LC/FC connector) |
|
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2Ah |
|
Dimensions |
130(W)*135(D)*130(H)mm; Package size: 52*32*30cm |
|
Weight |
2.1kg (without battery pack) |
Package Includes
Fusion Splicer T-207X | Fiber Cleaver | Spare Electrode
Fiber Stripper | Carrying Case | Wire Stripper
Cooling Tray | Straps | Charger| Instruction CD
