Skycom Core-to-Core Alignment Fusion Splicer T-308X
Skycom Core-to-Core Alignment Fusion Splicer T-308X
Couldn't load pickup availability
SKYCOM FUSION SPLICER T-308X
- High Precision: 6 Motors Core to Core Alignment;
- High Speed: 8 Secs Rapidly Splicing, 18 Secs Quick Heating;
- Greater Accuracy: Digital Imaging and Vision Processing Metrology;
- New Developed Technology for Smaller Size and Convenient Multipurpose Clamps;
-
5200mAh, Ultra-high Battery;
- Multistage Amplification, Magnification up to 520X Which Makes Clear Image
Specifications
|
Applicable Fibers |
SM, MM, NZ-DS, EDF, Pigtail, FTTH drop cable SC/LC/FC connector (optional function) |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Return Loss |
≥60dB |
|
Quick Splicing Time |
8 seconds |
|
Quick Heating Time |
18 seconds |
|
Operating Language |
Chinese, English, French, Portuguese, Spanish, Russian |
|
Operating Conditions |
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
|
Monitor |
Dual cameras, 90° bi-dirctional view |
|
Fiber Image |
X or Y Separately 400 times or Simultaneously 200 times |
|
Estimated Splice |
Available |
|
Cleaving angle |
Available |
|
Automatic Setting |
Automatic camera and motor forward adjustment |
|
Power Supply |
Inner lithium battery: 11.1V, 5.2 Ah, 5200mAh, Up to 180 times splice and heat |
|
Dimensions |
120(W)*120(D)*130(H)mm |
|
Weight |
1.29kg(without battery pack) |

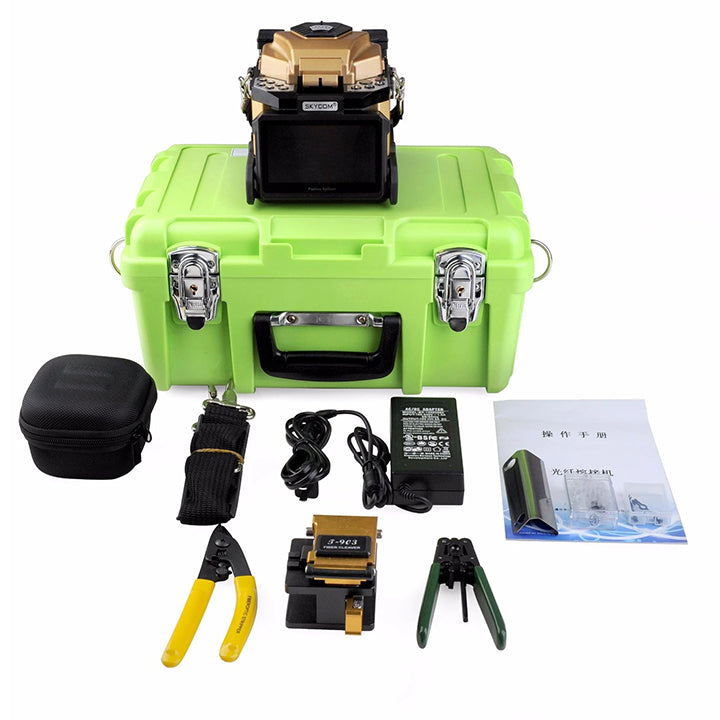

Package Includes
Fusion Splicer T-308X | Fiber Cleaver | Spare Electrode
Wire Stripping Pliers | Miller Stripper | Carrying Case
Cooling Tray | Straps | Power Adapter | User Manual
