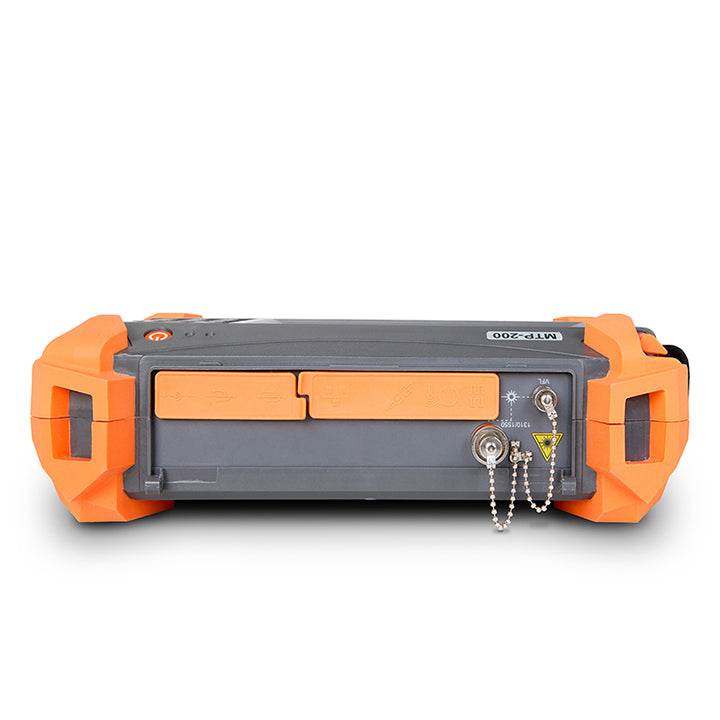

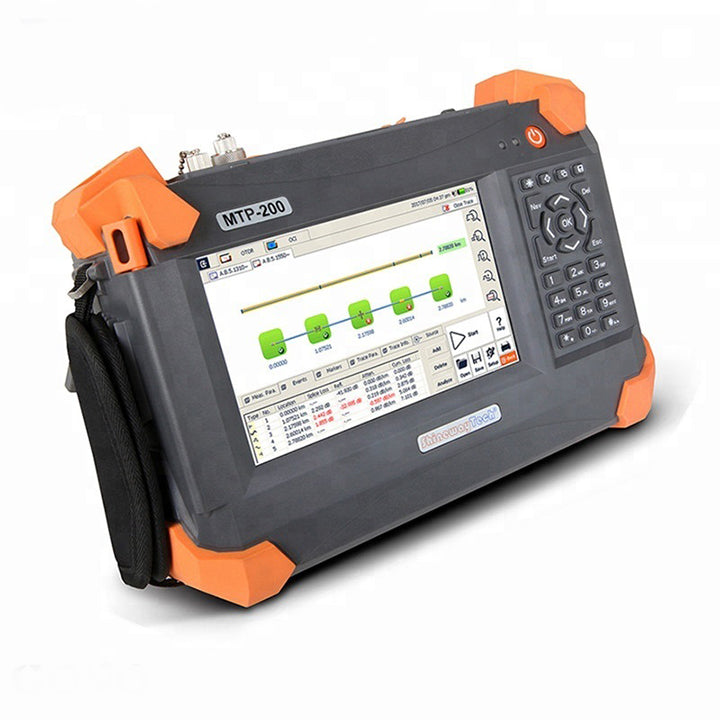

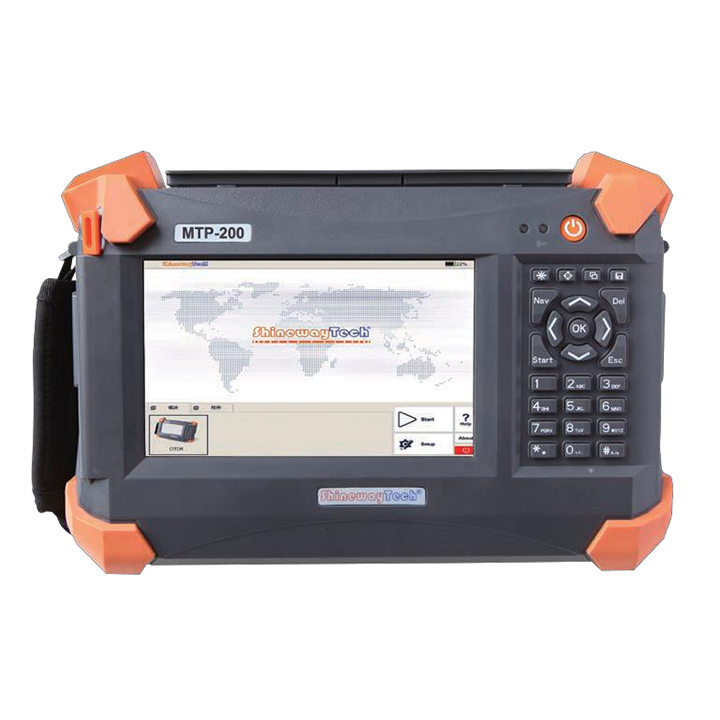

ShinewayTech OTDR MTP-200 CWDM / DWDM / PON 3-in-1

ShinewayTech OTDR MTP-200 CWDM / DWDM / PON 3-in-1

$19,500.00
$28,500.00 $19,500.00
Sale Sold out
Shipping calculated at checkout.

ShinewayTech MPT-200 Hand-held High Performance OTDR

  • Unique combination of 96λ DWDM OTDR + 18λ CWDM OTDR + 1625nm PON OTDR
  • Dynamic range up to 38dB (DWDM/PON OTDR), 36dB for CWDM OTDR
  • Short zone: EDZ 1m, ADZ 4m
  • Tunable laser source with 50/100GHz spacing
  • Auto/manual test and analysis
  • Multi-wavelength testing
  • Visible laser source function
  • Fault locating, fiber length/loss/return loss measurement, connector/ splice/ splitter/ macro bend/fiber-end detection
  • GR-196-CORE (.SOR) file format
  • SOR and JPG file format
  • Flexible file naming
  • LinkImage smart graphic analysis

Specifications

MTP-200 Series

Display

7 inch TFT Touch Screen (800×480)

Connectivity

USB×2; 10/100Mbit/s RJ-45×1

Memory

2GB

Power Supply

Rechargeable Li-Ion Battery/AC Adapter

Battery Life

10 hours continuous operation

Working Temp.

-20°C - 50°C

Storage Temp.

-40°C - 60°C

Humidity

0 - 95% (Non-Condensing)

Weight

2.1kg

Dimensions (L×W×H )

290×175×75mm





OTDR Module

Wavelength

MTP-200-T100

DWDM: 1528.77-1566.72nm @ 0.4nm Spacing

CWDM: 1270 -1610nm @ 20nm Spacing

PON: 1625nm

Dynamic Range(1)

38dB (DWDM / PON) ; 36dB (CWDM)

Dead Zone(2)

EDZ: 1m, ADZ: 4m

Selectable Range

SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km

Pulse Width

SM: 5ns,10ns, 30ns, 100ns, 300ns,1µs, 2.5µs,10µs, 20µs

Sampling Points

256000

Averaging Time

Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s

Connector

FC/PC (Interchangeable SC, ST and LC )

Distance Accuracy

±(1m + 5x10-5 x distance +sampling resolution)

Attenuation Accuracy

±0.05 dB/dB

Reflection Accuracy

±4 dB

Visible Laser Source

Output Power: ≥ -3dBm

MOD Frequency: 1Hz

Detecting Range: 5Km



Tunable Laser Source

Frequency Range

191 - 196 THz

Wavelength Range

1528-1566nm

Accuracy

2.5 GHz

Line Width

10 MHz

SMSR

40 dB

Output Power Range

+9 dBm to +13 dBm (C Band)

Power Setting Resolution

0.01 dB

Power Variation over Wavelength Range

±0.5 dB

Minimum Channel Spacing

50 GHz (0.4nm)

Reflection Accuracy

±4 dB

Relative Intensity Noise

-140 dB/Hz



MCI100 Optical Connector Inspector Module (Optional)

Field of View

400µm×300µm

Resolution

≤1.5µm

Focusing

Manual Focus

Microscope Dimensions

Ø32×175mm



PM100 Normal Power Meter Module (Optional)

Calibrated Wavelength

850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm

Measurement Range

-70dBm - +6dBm (-60dBm - +6dBm @ 850nm)

Detector Type

InGaAs

Display Resolution

0.01dB

Accuracy

± 5% ± 0.01nW (±0.5dB@850nm)



Notes
(1)   Dynamic range measurement at 20µs pulse width and 180s averaging time;
(2)   Dead Zone measurement at 0.6Km and reflection <-45dB; EDZ measurement at 5ns, ADZ measurement at 10ns.
Order Information:
Standard Package

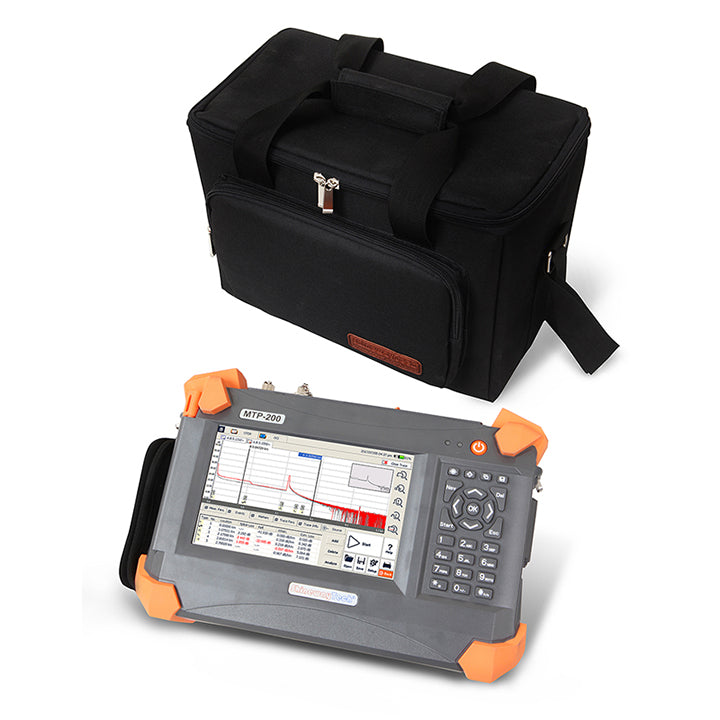

MTP-200, Lithium Battery, CD (User’s Manual and MTP Suite Software), Carrying Case, Warranty card, Calibration Certificate
Optional Modules:
PM100: Optical Power Meter Module
MCI100: Optical Connector Inspector Module RC100: Remote control Module
LM100: Link Image Module

Warranty : 1year.
