PON Power Meter Tester PON Optical Fiber Tester Basic Version

PON Power Meter Tester PON Optical Fiber Tester Basic Version

Regular price $157.00
Regular price $175.00 Sale price $157.00
Sale Sold out
Shipping calculated at checkout.

PON Power Meter Tester PON Optical Fiber Tester Basic Version

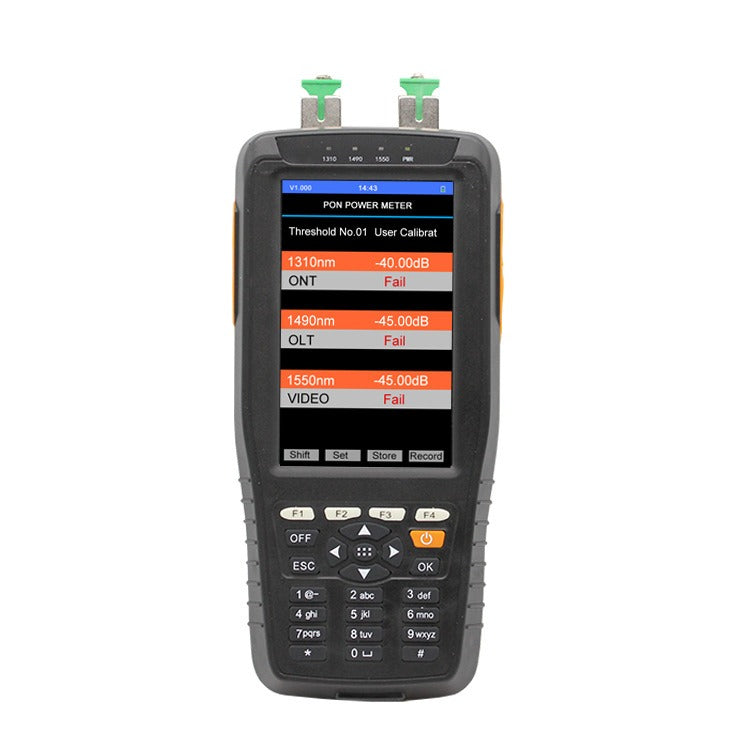

TM70B PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data,  video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.

Main Features

1. Handheld, easy to operate
2. Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,
3. Can test the burst mode signal of 1310nm
4. True color screen
5. Friendly operation interface, human message management and operation function
6. Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
7. Relative value choice and edit function
8. Can set the threshold value, upload data, and calibrate wavelength through management software
9. Auto shut off (according to set value)
10. Auto backlight off(according to set value)
11. 6600mAh Lithium battery
12. Power saving design (Low voltage self check and power off)
13. Real-time clock display
14. Optical Power Meter (Optional Function)

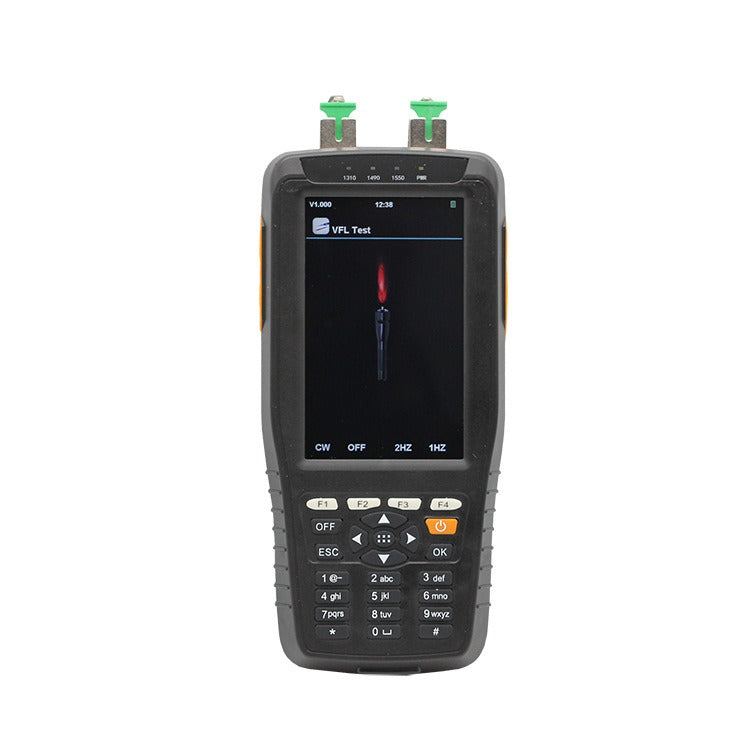

15. Visual Fault Locator ( Optional Function)


PON Power Meter

   Standard   wavelengths   1310nm    1490nm    1550nm
  ( upstream)   ( downstream)   ( downstream)
   Pass   zone(nm)    1260~1360    1470~1505    1535~1570
   Range(dBm)   - 50~+10   - 50~+10   - 45~+23
   Isolation  @ 1310nm(dB)     > forty   > forty
   Isolation  @ 1490nm(dB)   > forty     > forty
   Isolation  @ 1550nm(dB)   > forty   > forty
   Uncertainty(dB)    ±0.5
   Polarization   Dependent   Loss  ( dB)   < ±0.25
   Linearity(dB)    ±0.1
   Through   Insertion   Loss(dB)   < one point five
   Resolution    0.01dB
   Unit    dBm/xW

LCD: 480*800, True color touch screen
Battery: 3.7V 6600mAH rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions(mm) : 185*80*50
Weight(g): about 370g

Warranty : 6 months.
