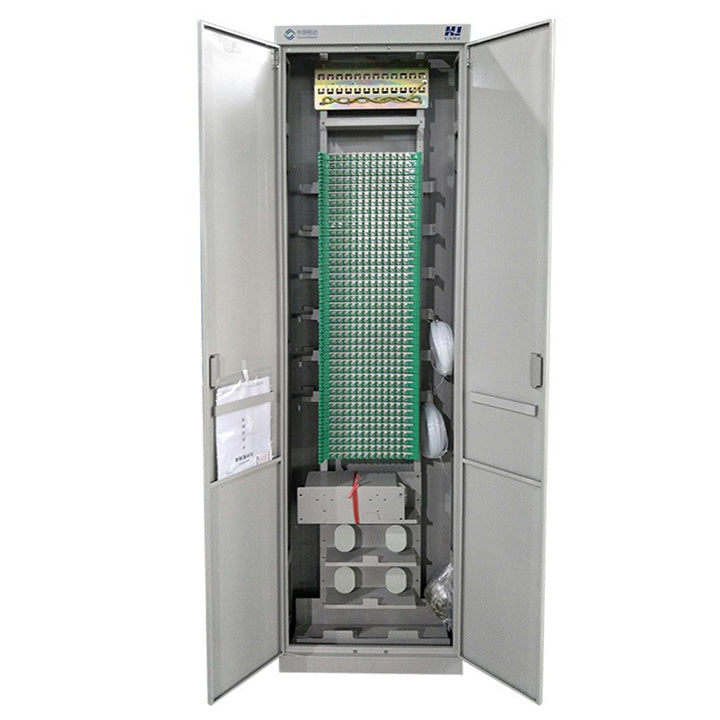

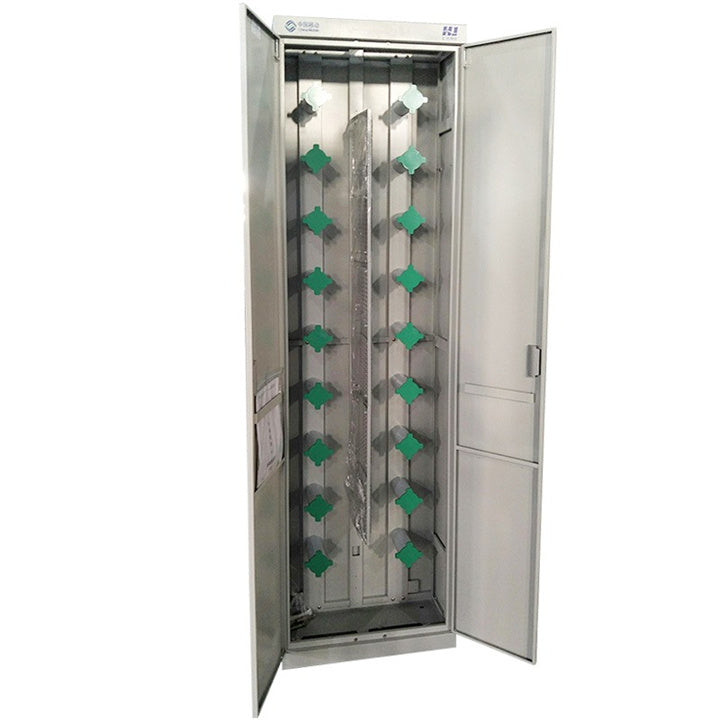

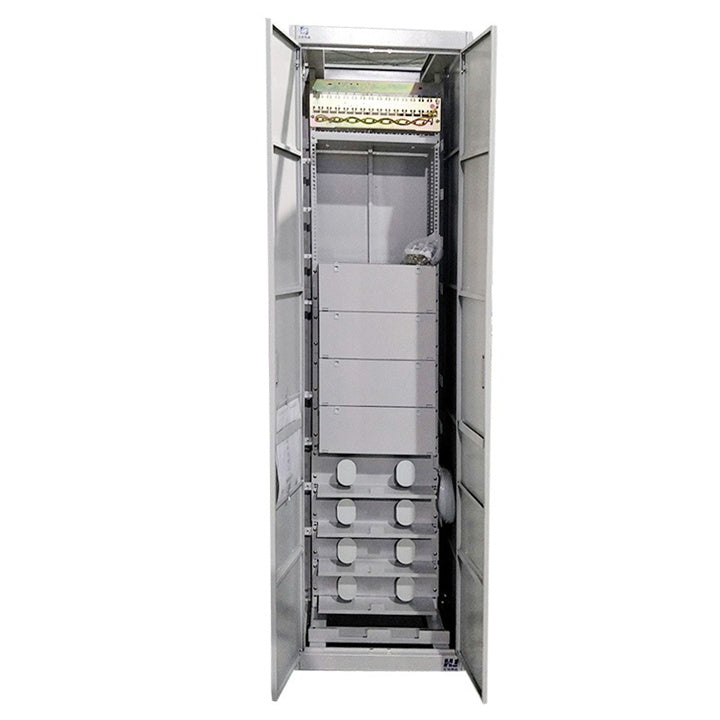

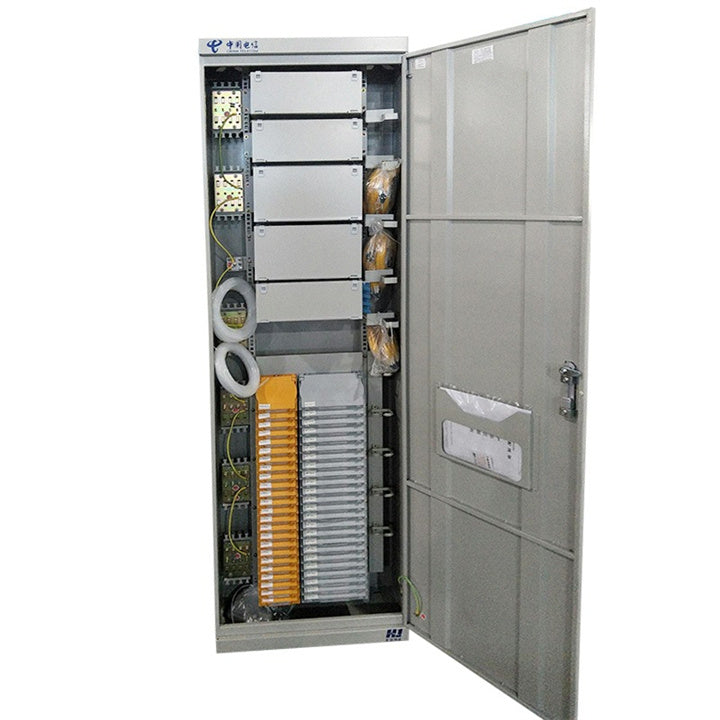

ODF FTTH Optical Fiber Distribution Frame odf with sc connectors network cabinet

ODF FTTH Optical Fiber Distribution Frame odf with sc connectors network cabinet

Regular price $310.00
Regular price Sale price $310.00
Sale Sold out
Shipping calculated at checkout.

ODF FTTH Optical Fiber Distribution Frame ODF network cabinet

It is convenient for the connection and distribution of fiber optic cable and also good at distribution in the large capacity exchange bureau,CATV fiber system and fiber optic communication system.

Features

1. 19”standard cabinet,large capacity and high density of full modular design;
2. Unit box sets molten, storage and distribution for on;
3. Could install FC,SC adapter;
4. All the side doors could be dismantled,convenient for splice and installation;
5.Optical cables could be lead in or out from the top and the bottom of the frame, also equipped with cable fixtures
6. The clear mark of fiber pigtail,jumper is convenient for controlling and managing


Material

SPCC, anti-corrosion material

Thickness

1.2mm and etc are all available to be designed for the material used

ODF unit

12/24/48/72/96cores

Processing

Laser cutting, CNC punching, CNC bending, welding, stamping, etc

Surface treatment

Painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc

Certification

ISO 9001:2000
ISO 9001:2008
QS-9000
ISO 14001:2004
TL 9000
RoHS
CE

Deliver time

15-20 days after deposit received

Files available

Solid works, Auto CAD, PDF

Brand

J-NET

IP

IP65&66

Main customers

China Unicom, China Telecom, CMCC, Eaton Industries Pty. LTD, FOTUSA Limited Complete-Comms Pty. LTD, Eden Island Development Company and etc.

Application fields

Used for FTTZ, FTTB, FTTR, and wireless base station

Structure

H: 2600mm, 2200mm, 2000mm and etc. W: 800mm; D: 360mm, 450mm are recommended.

The structure can be designed to satisfied the customers’ requirements

Insulation Resistance

>1000MV/500VDC

Withstand Voltage

>3000VDC/min and no breakdown fly arc

Package

Package with hard paper box, Plywood box, wooden box, Fumigation wooden box sealed free from insects,Neutral packing, Bubble wrap inside package, PE,EPE carton, pallet and etc.And all of our package forms are upon customer's requests

Contract Manufacturing

OEM Service, Design Service, Buyer Label Offered

Installation Method

Complete module installation

Capacity

1,200 lines

The capacity could be designed to satisfied the customers’ requirement.

Corrosion resistant performance

All the materials selected are with high  corrosion resistance performance



Warranty : This is a consumable without warranty.

If you need big quantity or
any question please do not hesitate contact us email jack@splicermarket.com
