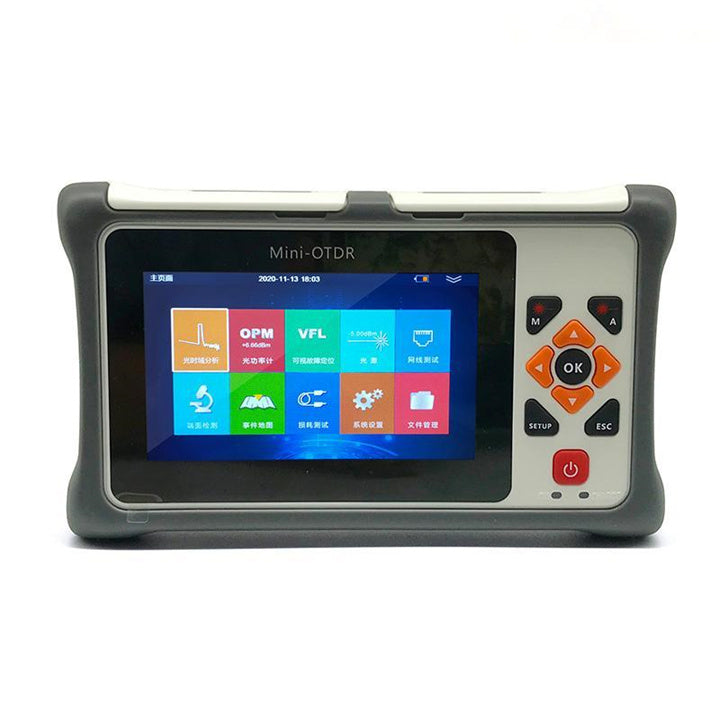

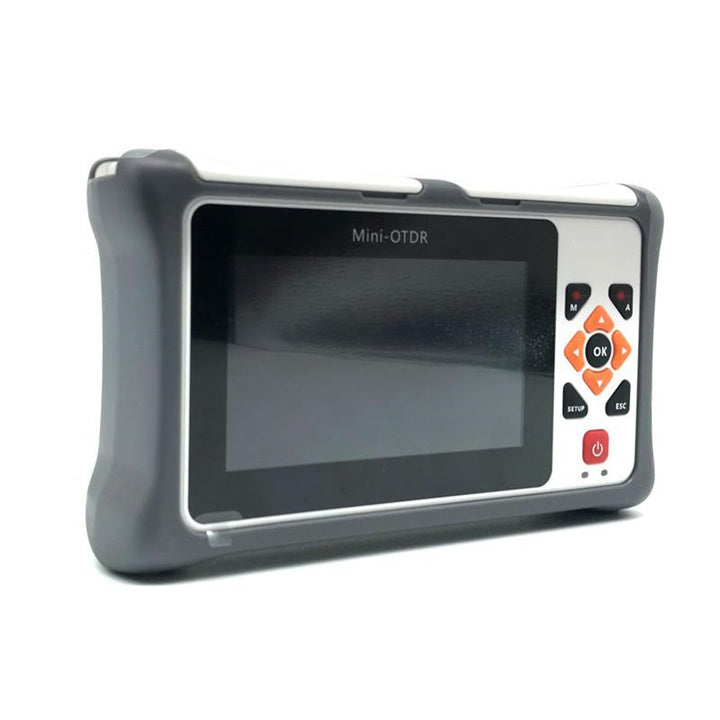

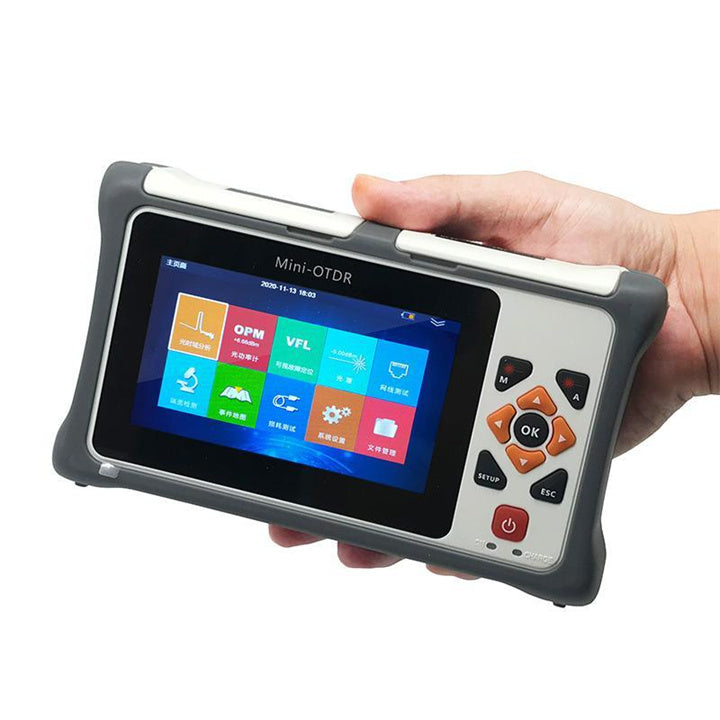

MINI hand-held OTDR optic fiber tester SM OTDR

MINI hand-held OTDR optic fiber tester SM OTDR

Regular price $429.00
Regular price $550.00 Sale price $429.00
Sale Sold out
Shipping calculated at checkout.

MINI hand-held OTDR optic fiber tester SM OTDR

MINI hand-held OTDR optic fiber tester SM OTDR

 Features
• OTDR, OPM, VFL, LS, Network Cable Test, Fiber Inspection, Event Map, Loss Test, All in One OTDR
• Plate type tempered glass panel, don't worry about screen scratch
• Support horizontal screen and vertical screen, for different usage habit
• Support power bank charging,
• Support Screen capture

wavelength(nm)

 1310/1550

Dynamic Range(dB)

22/20

Measuring range

80km

Sampling resolution

Minimum: 0.2m

The sampling point

64,000 point

linearity

≤0.05dB/dB

Loss threshold

0.01dB

Loss resolution

0.001dB

Range resolution

0.01m

Range accuracy

±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error)

Memory

>100000

VFL

10mW,CW/2Hz

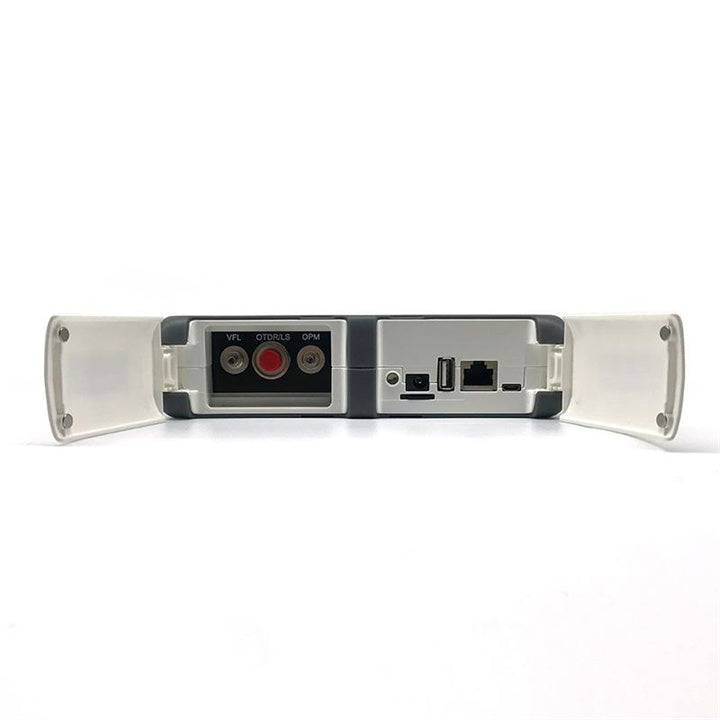

Data interface

2个USB(Type A×1,Micro usb×1),SD card

Screen

4.3-inch TFT-LCD (Standard distribution capacity touch screen)

Battery

3.7V/5200mAh

temperature

Working temperature:-10℃~+55℃;Storage temperature:-20℃~+80℃

humidity

≤95%(No condensation)

Size/Weight

175x105x45mm / 0.56kg(Contain the battery)

Attachment

Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package

OPM

Type A:+10dBm~-70dBm;Type B:+26dBm~-50dBm

LS

The output power:-5dBm,Modulation frequency:CW/270Hz/1KHz/2KHz

Network Cable test

Support network wire sequence testing and wire alignment


Warranty : 1 year.
