Jilong KL-300T Core Aglignment Fusion Splicer
Jilong KL-300T Core Aglignment Fusion Splicer
Couldn't load pickup availability
Jilong Core Aglignment Fusion Splicer KL-300T
● 9s Splicing, 18s heating
● 5000 times Electrodes life
● Average splice loss: 0.01dB
● 7800mAh battery capacity, recyclable 260 times splice + heat
● Storage of splice results: 10000 results, 100 sets of Images
● 5″ 800x480 HD LCD display
● 360X/180X Magnification, fiber core extremely clear
● Suitable for SM/MM/DS/NZDS/BIF single core fiber
● 3-in-1 universal fiber holder. Suitable for jump fiber, pigtail fiber, bare fiber，flat cable
Specifications
|
Fiber types |
SM (G652) / MM (G651) / DS (G653) / NZDS (G655) / BIF (G657) |
|
Number of fiber |
Single fiber |
|
Fiber aligning method |
Meticulous; Core; Clad; Maunal |
|
Splicing mode |
Auto; Calibrate; Normal; Special |
|
Average splicing loss |
SM: 0.02dB MM: 0.01dB DS: 0.04dB NZDS: 0.04dB |
|
Typical splicing time |
Typical 9s (standard SM fiber) |
|
Typical heating time |
Typical 18s |
|
Splicing program |
100(user mode) 53(factory mode) |
|
Tube heating program |
40(user mode) 11(factory mode) |
|
Heating control mode |
Automatic/Maunal |
|
Storage of splice result |
10000 results, 26 parameters per result, 100 sets of iamges |
|
Tension test |
1.96 ~ 2.25N |
|
Terminal |
USB |
|
Electrode life |
5000 times |
|
Fiber image magnification |
360X / 180X |
|
Monitor |
5″ color LCD display |
|
Battery capacity(splice/tube heat) |
260 cycles(typical) |
|
Power supply(inner Li-battery) |
7800mAh |
|
Charger |
Internal |
|
Power supply |
AC: 100~240V Lithium battery voltage: DC 13.5V |
|
Operation condition |
Altitude: 0~5000m |
|
Temp: -10~50℃ |
|
|
Max wind velocity of 15m/s |
|
|
Dimension(L*W*H) |
168 x 150 x 165（mm） |
|
Weight |
1.94kg(without battery) 2.28kg(with battery) |

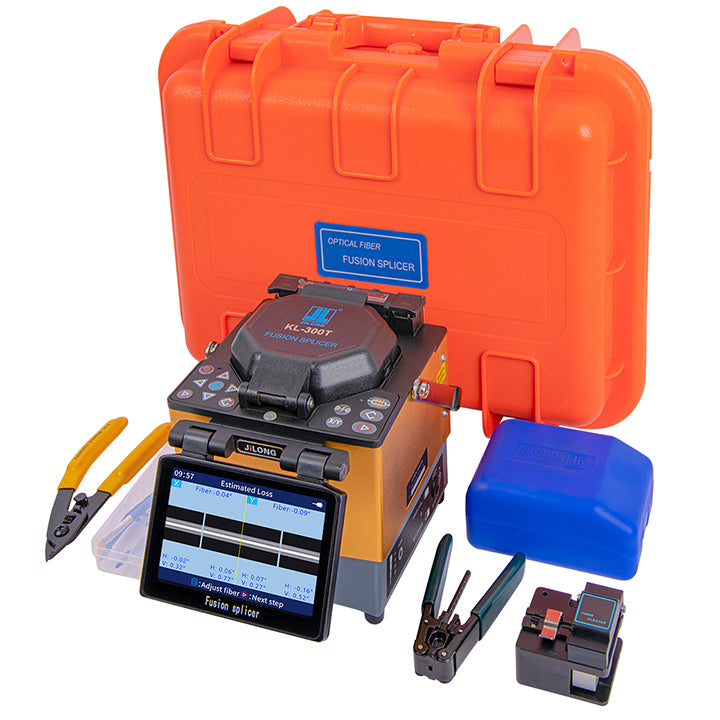

Package Includes
Fusion Splicer AI-8C | Fiber Cleaver | Cable Stripper
Miller Fiber Stripper | Electrodes | Cleaning Box
Power Charger| Carrying Case | User Manual
