Fusion Splicer INNO Instrument View 7 Splicing machine

Fusion Splicer INNO Instrument View 7 Splicing machine

Regular price $3,900.00
Regular price $4,200.00 Sale price $3,900.00
Sale Sold out
Shipping calculated at checkout.

Fusion Splicer INNO Instrument View 7 Splicing machine

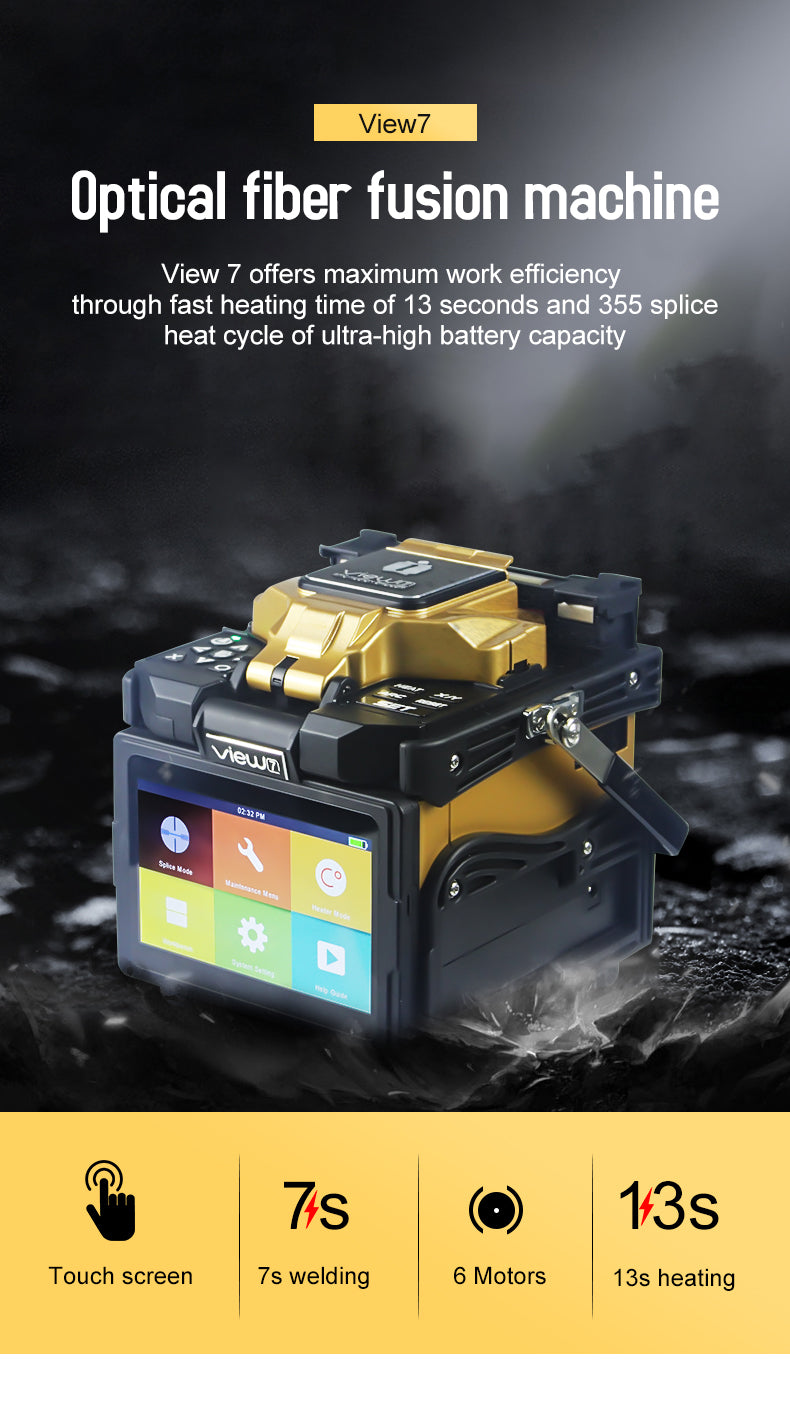

View 7, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most powerful and innovative

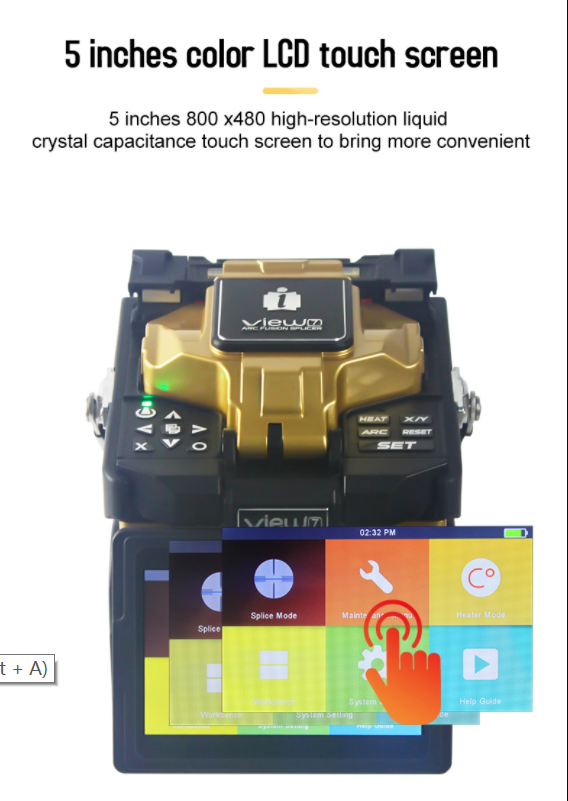

fusion splicer in the market. View 7’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic
User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can zoom in & out the image to

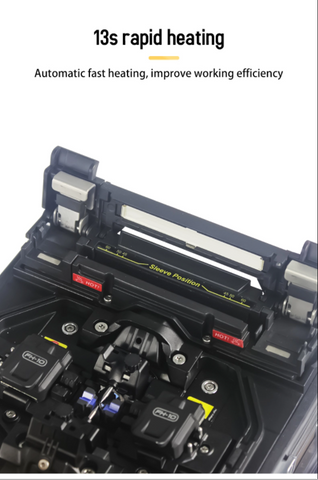

the world’s highest magnification of 520x. View 7 offers maximum work efficiency through the fast heating time of 13s and the
ultra-high battery capacity of 355 splice/heat cycles. Moreover, the 3 LED lights provide bright splice condition to the users
working under dark environments.
View 7 offers the most reliable work experiences to our valuable customers.


* Core Alignment Splicing Method with DACAS
* (Digital Analysis Core Alignment System)
* The World’s Highest Magnification and Resolution
* 5” High-Resolution Color LCD Touch Screen
* User-friendly Smart GUI
* Double Tap to Zoom in & out
* Fast Heating Time
* Ultra-high Capacity Battery
* Detachable SOC Holder and Heating Oven
* 3 Bright LEDs and Illuminated Keypads For Dark Environment
* Ceramic Clamp for Improved Durability
* Easy to Replace Electrodes
* Protective Cover
* Harsh Weather Conditions Adaptability.


 FTTX Systems
PON Networks
Optical Signal Distribution
The experiment, production and testing of optical devices.


View 7
160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper)
2.80KG (with battery) / 2.17KG (without battery)
Number of Fiber
Applicable Fibers
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable
0.25~3.0 mm / Indoor Cable (with VFH-40)
Cleaved Length
Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter
80~150 μm
Splicing Mode
Max 128 modes
Heating Mode
Max 32 modes
Typical Splice Loss
SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB(ITU-T Standard)
Return Loss
>> 60 dB
3 White LEDs
Splicing Time

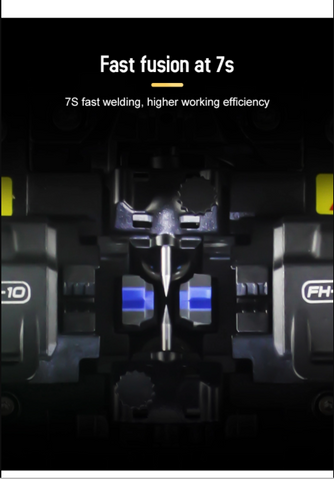

Quick mode : 7 sec / Auto mode : 8 sec
Estimated Splice Loss
Protection Sleeve Length
20~60 mm
Heating Time
FP-03 typical heating time: 13 sec
Results Storage
The last 2000 results
Tension Test



Warranty : 1 year.
