hand-held OTDR HSV-610 OTDR 1310/1550nm 32/30dB SM OTDR

hand-held OTDR HSV-610 OTDR 1310/1550nm 32/30dB SM OTDR

Regular price $1,600.00
Regular price $1,850.00 Sale price $1,600.00
Sale Sold out
Shipping calculated at checkout.
Brand

Hand-held OTDR HSV-610 OTDR 1310/1550nm 32/30dB SM OTDR

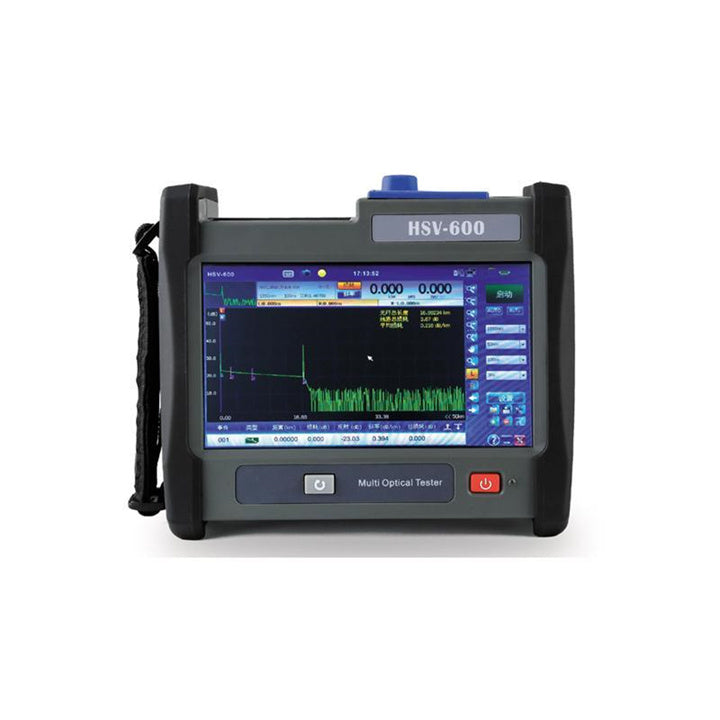

  • 7-inch full touchscreen; Professional and efficient UI (user interface) and UE (user experience)

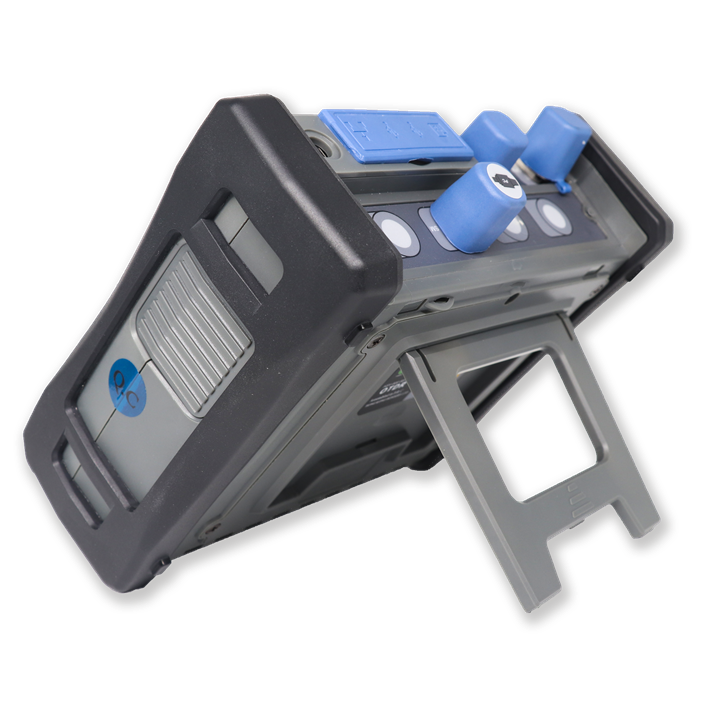

  • Handy, lightweight, fully functional, tablet-inspired design
  • Excellent optical performance: Event dead zone: minimum 0.8m;
  • Dynamic range: 32dB/30dB
  • Resolution with the shortest distance:5 cm
  • 12-hour operating time
  • Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe

Specifications


Model

HSV-610

HSV-620

HSV-630

HSV-630A/B/C

HSV-640

Wavelength(nm)

1310/1550

1310/1550

1310/1550

1310/1490/1550/1625/1650

1310/1550

Wavelength Accuracy(nm)

± 20

Dynamic (dB)

32/30

35/33

37/35

37/35/35

40/38

Event Dead Zone(m)

1.5

1

0.8

0.8

0.8

Atten. Dead Zone (m)

6

5

4

4

4

Pulse width

3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1µs, 2µs, 5µs, 10µs, 20µs

Distance range (km)

100m, 400m ,1.5km, 3km, 6km, 12km, 25km, 50km, 100km ,200km, 400km

Sampling resolution(m)

0.1(HSV-610/HSV-620),0.05(HSV-630/HSV-630A/HSV-640/HSV-670/HSV-680)

Sampling Points

128000

256000

Power Meter

Calibrated Wavelength: 1310nm/1550nm

Working wavelength: 850nm/980nm/1300nm/1310nm/1490nm/1610nm

Dynamic: -70dB~+10dB, ±0.17dB accuracy

VFL

650nm±10nm, 10mW

Fiber inspection probe

520X, USB 2.0

Stabilized light source

HSV-610/HSV-620:1310/1550nm, -11dBm; HSV-630/HSV-640/HSV-670/HSV-680:1310/1550nm, -4dBm;

HSV-630A/B/C: 1310/1490/1550/1625/1650nm, -4dBm

Display

7 in (178 mm) outdoor-enhanced touch screen, 800 x 480 TFT

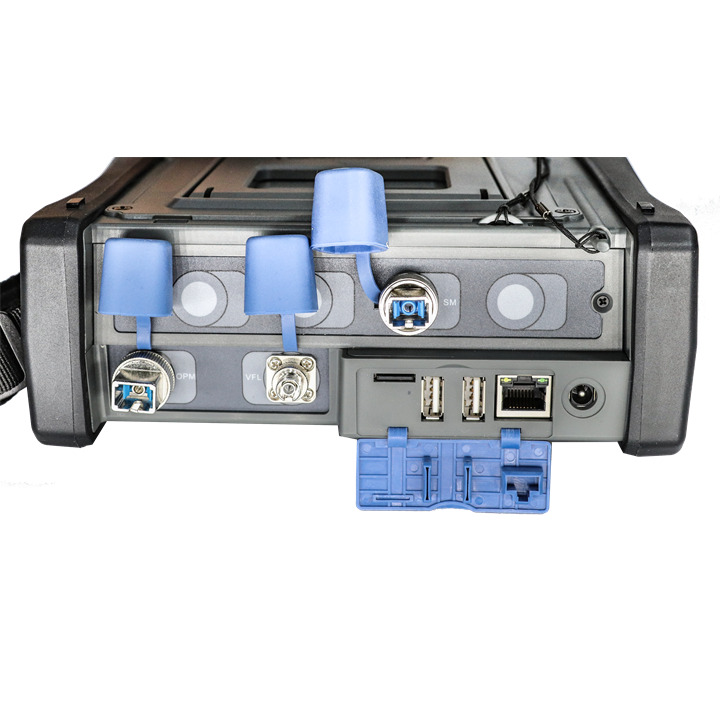

Interfaces

USB 2.0 ports RJ-45x1 x2; LAN ,10/100 Mbit/s, Macro SD x1

Storage

8 GB internal memory (80 000 OTDR traces), 8 GB SD card (80 000 OTDR traces)

Battery Life

7.4 v,5300mAh lithium battery pack,39.22Wh supports 12 hrs, continuous (at max charge)

Power supply

Power supply AC/DC adapter, AC input 100-240 V, 50-60 Hz,  DC out 12V,1.5A

Applicable environment

Operating temperature:-10℃—+50℃,storage temperature:Relative humidity:0%-95%

Dimensions (WxHxD)

196*172*72mm

Weight(including battery)

<1.5kg

Language

Chinese, English, Spanish,Russian,Italian,Portuguese,(option for French, Russian, German, Korean & Arabic)



Warranty : 1 year.
