Fujikura

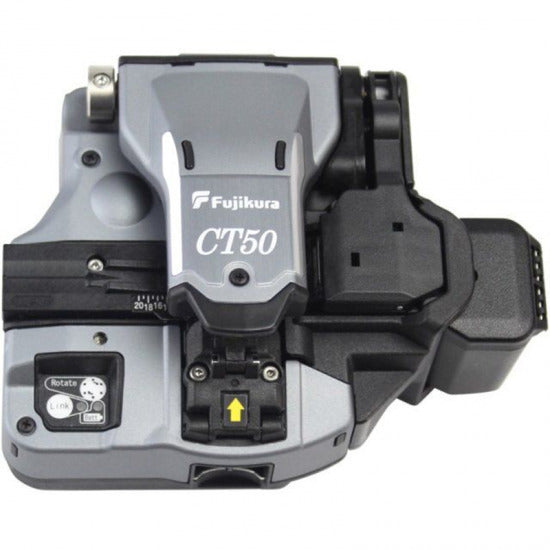

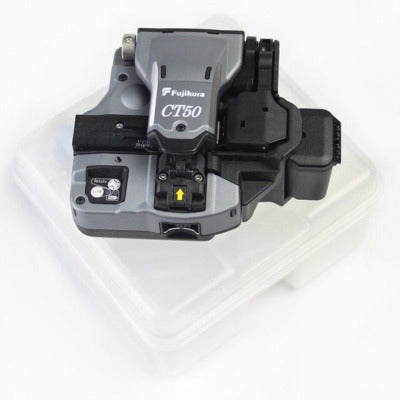

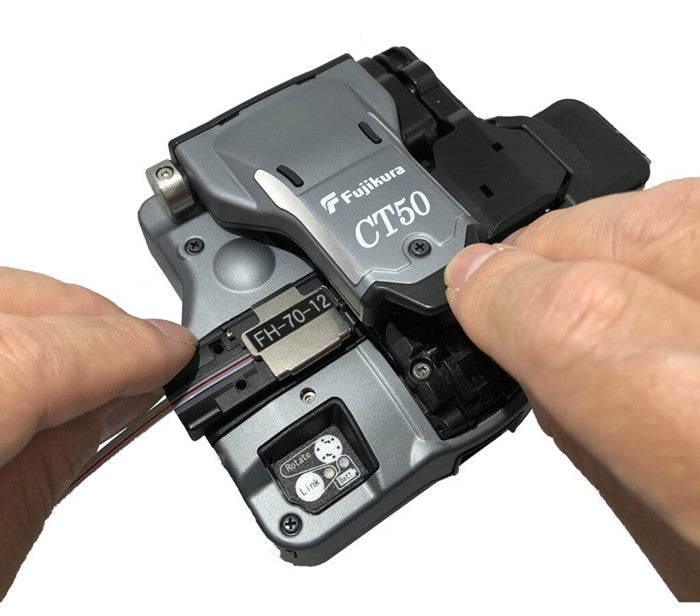

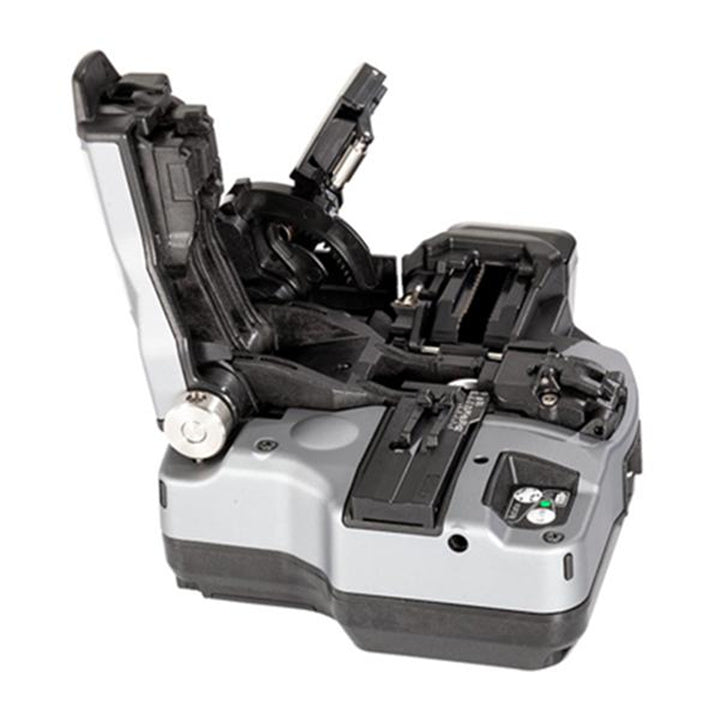

Original Fujikura CT50 cleaver Fiber Optic Cleaver High Precision Bluetooth Single Fiber Cleaver

Original Fujikura CT50 cleaver Fiber Optic Cleaver High Precision Bluetooth Single Fiber Cleaver

1 total reviews

Regular price $619.00
Regular price $750.00 Sale price $619.00
Sale Sold out
Shipping calculated at checkout.
Brand

Original CT50 Fujikura cleaver Fiber Optic Cleaver High Precision Bluetooth Single Fiber Cleaver

The AFL CT50 Cleaver offers enhanced drop impact resistance compared to other existing cleavers and allows workers to replace the cleaving blade, providing customers with a drastic reduction in handling time and maintenance costs. The AFL Cleaver CT50 changes the position of the cleaving blade automatically and in accordance with the condition of the cleaving state of optical fibers on a fusion splicer through wireless communication. In addition,the CT50 Fiber Cleaver can complete cleaving works including scrap collection, with a single-step.

Features
*Applicable for up to 12-fiber cleaving
*Automatic cleaving blade rotation via wireless communication
*User replaceable fiber clamps and cleaving blade
*Blade life up to 60,000 cleaves
*Wide lever opening angle allows easy fiber placement
*Single-action operation including fiber scrap collection





    ct 50 optical fiber cleaver - splicermarket.com
    Fujikura CT50 cleaver Fiber Optic Cleaver
    Fujikura ct 50 cleaver - Splicermarket.com

    Specifications

    Description

    CT50

    Applicable Fiber

    Silica optical fiber

    Fiber Count

    Up to 12

    Coating Diameter

    160 to 900μm 2 to 3mm cord and drop cable

    Cladding Diameter

    125µm

    Cleave Length

    5-20mm with AD-10-M24

    10mm using fiber holders

    Cleave Angle Capability

    Typical 0.5 degrees

    Blade life

    Typical 60,000 fibers

    Wireless connectivity

    Wireless technical standard:Bluetooth®4.1 LE*2 OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)

    Dimensions

    120(W) x 95(D) x 58(H)mm

    Power supply

    AAA (LR03) dry battery: 2pc

    Weight

    300g

    Operation condition

    0 to 95% RH and 0 to 40°C (non-dew)

    Storage condition

    0 to 95% RH and -40 to 80°C (non-dew)

    Resistance features*3



    Shock: 76cm (30inch) all directions dropShock: 76cm (30inch) all directions drop

      Dust resistance: Exposure to dust (0.1 to 500μm dia.    Alumina Silicate)

      Rain resistance: H=10mm/hr for 10min

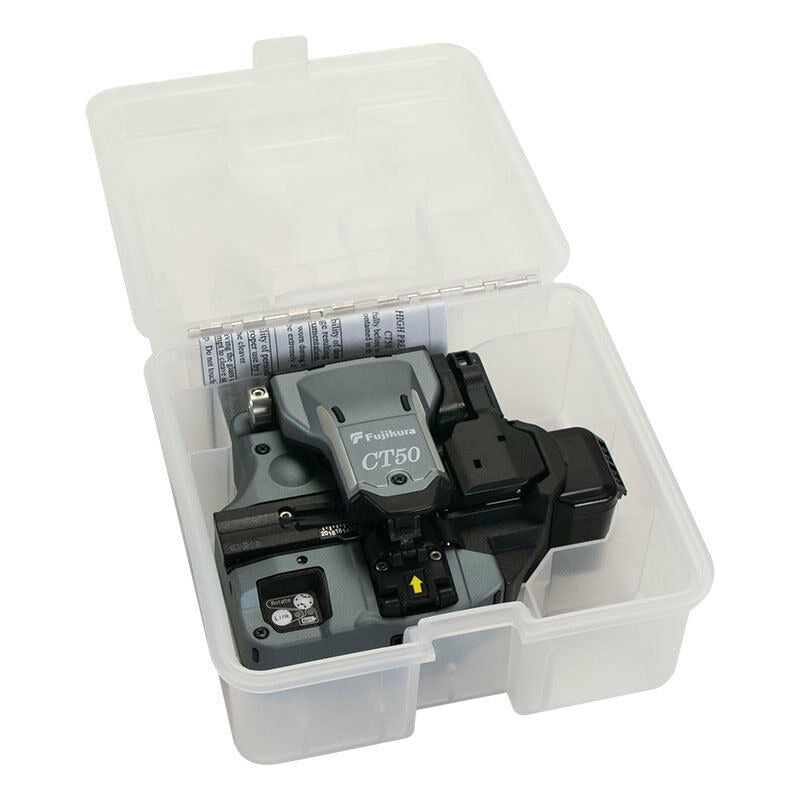

    Standard Package

    2x Fiber Plate, Spacer, Carrying case, Hexagonal wrench, Instruction manual



    fiber cleaver ct50 - splicermarket.com



    Original Fujikura CT50 cleaver - Splicermarket.com
