Fiber Inspection Probe Kit with Cleaner Pen & Cassette | 250x, 3.5" Display, SC/FC/ST/LC/MU Tips

Fiber Inspection Probe Kit with Cleaner Pen & Cassette – 250x Magnification, 3.5" TFT Display

Dirty connectors are the #1 cause of fiber optic link failures — and you can’t fix what you can’t see. The Fiber Inspection Probe Kit gives field technicians and lab engineers everything needed to inspect, identify, and clean fiber optic connectors in one complete set: a handheld video microscope with a 3.5" color display, a fiber optic cleaning pen with 800+ cleanings, and a cassette cleaner with 500 cleaning cycles. Whether you’re commissioning a new FTTH link, troubleshooting high insertion loss, or maintaining a data center patch panel, this kit covers the full inspect-clean-reinspect workflow.

Kit Contents

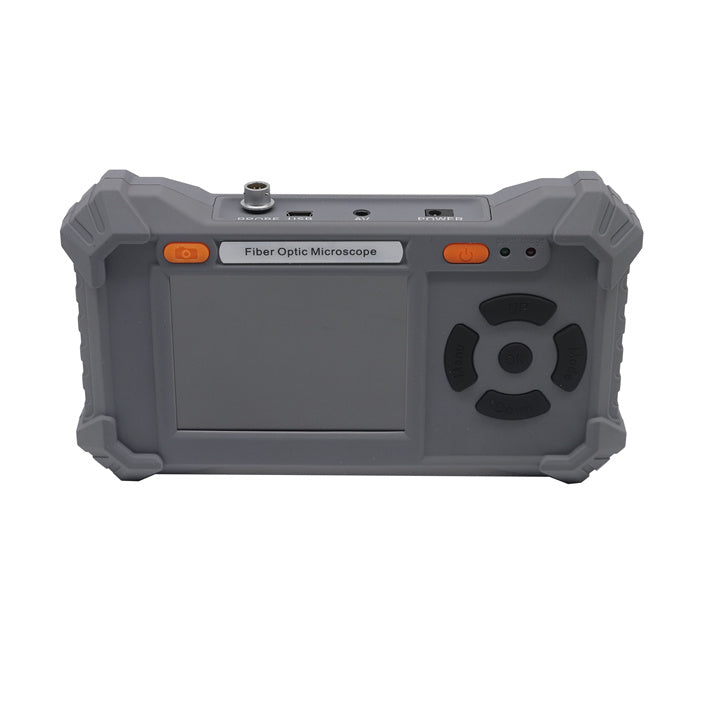

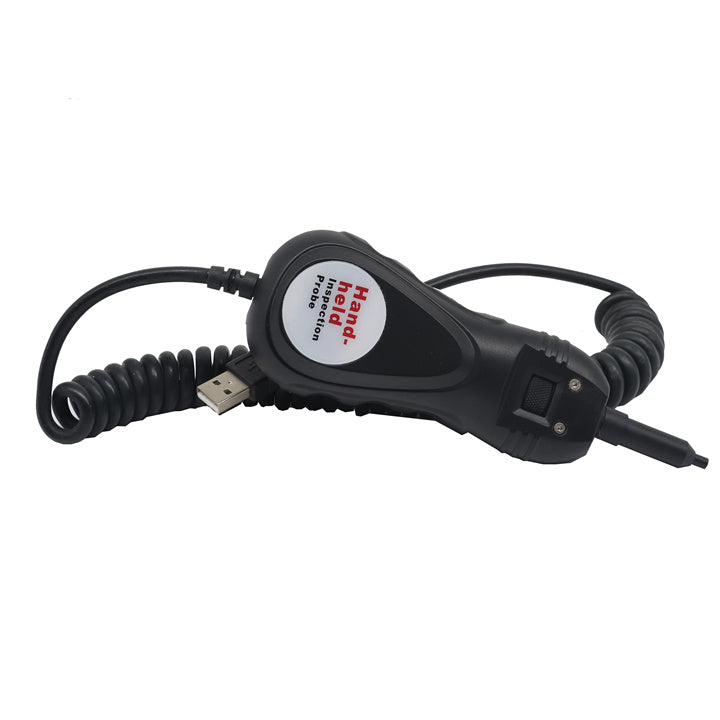

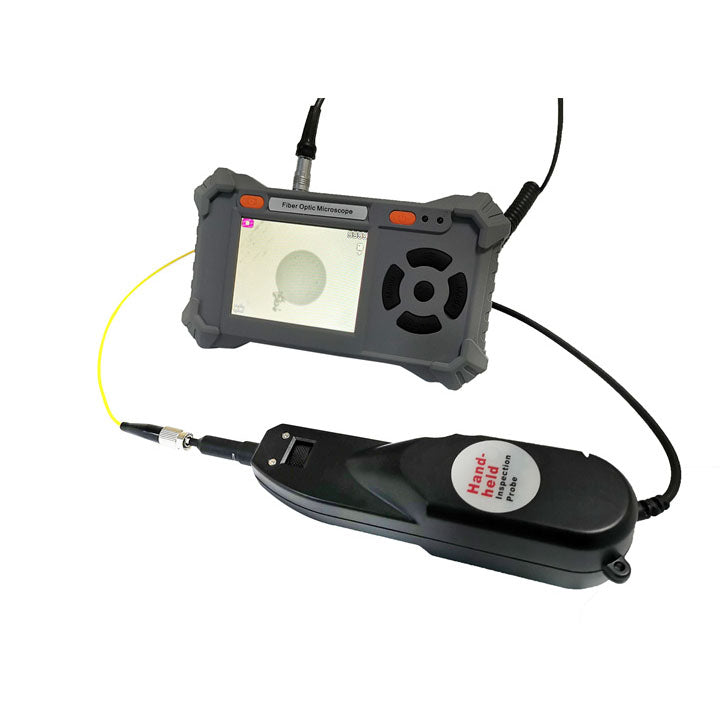

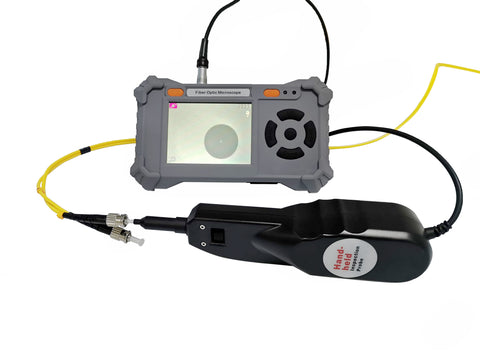

• Fiber Inspection Probe (Mainframe + Probe) – 250x magnification, 3.5" TFT-LCD display, image capture & video recording

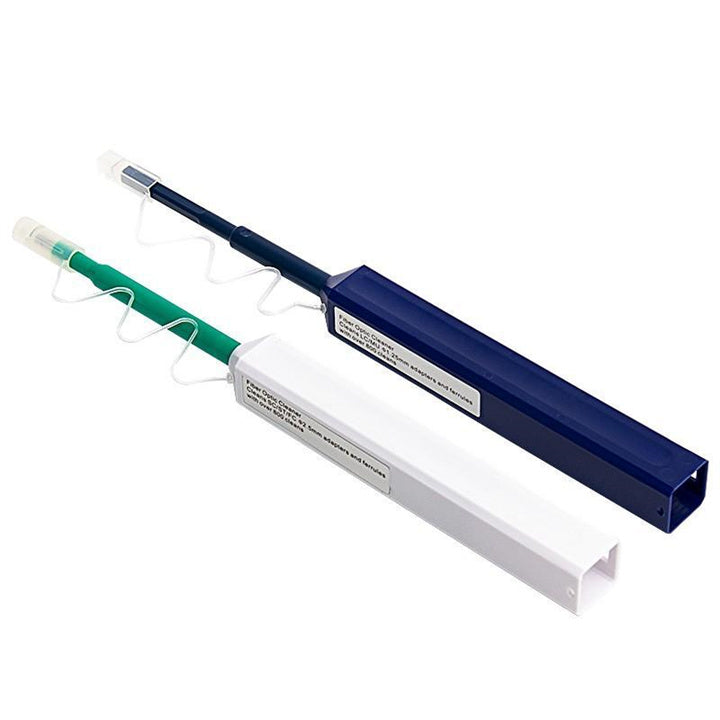

• Fiber Optic Cleaning Pen – 800+ cleanings, antistatic, extendable tip for recessed connectors

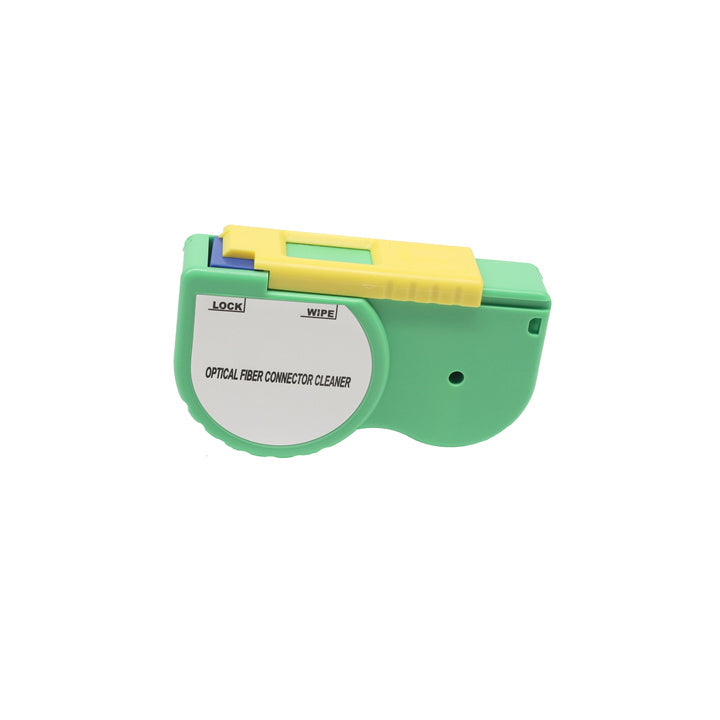

• Fiber Optic Cleaner Cassette – 500 cleaning cycles, supports SC, FC, ST, MU, LC, MPO, MT, MTRJ

Fiber Inspection Probe – Key Features

• 250x Magnification (400x on 9" monitor): Clearly reveals contamination, scratches, and core damage on any connector end face
• 3.5" TFT-LCD Color Display (320×240): High-resolution, well-centered image for instant pass/fail assessment in the field
• Image Capture & Video Recording: Save inspection results to 8GB SD card for documentation and reporting
• 4x Digital Zoom: Zoom in on specific areas of the end face for detailed analysis
• USB Plug-and-Play: Connect to a PC or monitor for larger-screen inspection

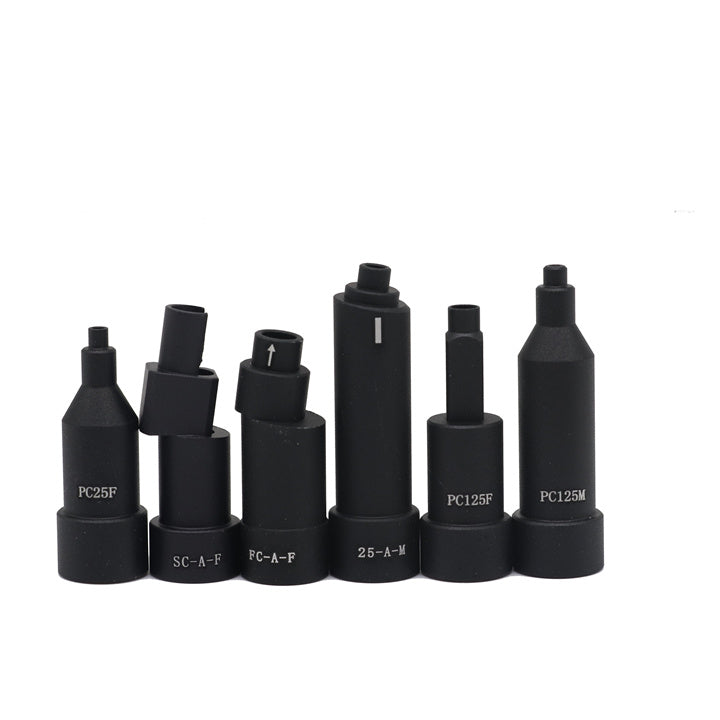

• Standard Connector Tips Included: SC, FC, ST, LC, MU, E2000 — covers all common connector types
• Rechargeable Li-Ion Battery: 3.7V / 1450mAh, 3+ hours continuous operation; universal AC adapter included
• Compact & Lightweight: 170×100×40mm, 200g mainframe; 180×40×30mm probe

Fiber Optic Cleaning Pen – Key Features

• 800+ Cleanings Per Unit: Long-lasting disposable cleaner for high-volume inspection workflows
• One-Push Operation: Simple push motion engages connector and initiates cleaning — no alcohol or wipes needed
• Antistatic Resin Construction: Prevents static charge buildup that can re-attract dust to cleaned end faces
• Densely Stranded Microfibers: Debris-free cleaning tape removes oil, dust, and particulates without scratching
• Extendable Tip: Reaches recessed connectors in bulkhead adapters and patch panels

Fiber Optic Cleaner Cassette – Specifications

Fiber Inspection Probe – Full Specifications

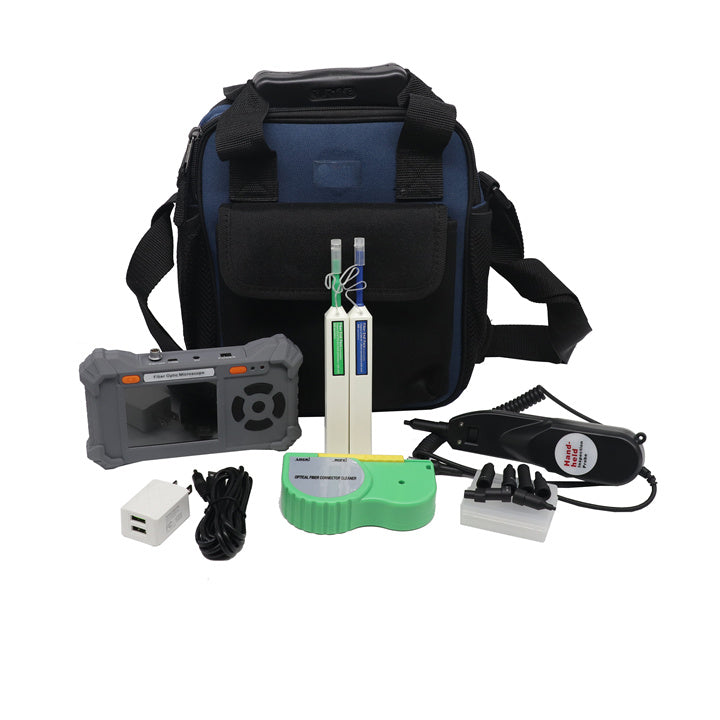

Package Contents

• Inspection Probe × 1
• Mainframe × 1
• AC Power Adapter / Battery Charger × 1
• Rechargeable Battery Pack × 1
• 2.5mm Tip for PC Male Connectors × 1
• 1.25mm Tip for PC Male Connectors × 1
• Tip for SC/FC PC Female Connectors × 1
• Tip for LC PC Female Connectors × 1
• Tip Box × 1
• Fiber Optic Cleaning Pen × 1
• Fiber Optic Cleaner Cassette × 1
• User Manual × 1
• Carrying Bag × 1

Frequently Asked Questions

Q: Does this kit meet IEC 61300-3-35 inspection standards?
A: The probe provides 250x magnification with 0.5μm detection limit, which is suitable for IEC 61300-3-35 end face inspection. For automated pass/fail grading, a software-based analysis tool is recommended in addition to visual inspection.

Q: What connector types does the inspection probe support?
A: The kit includes tips for SC, FC, ST, LC, MU, and E2000 connectors (2.5mm and 1.25mm male PC, SC/FC female, and LC female). Additional tips are available separately for other connector types.

Q: How many times can I clean with the included pen and cassette?
A: The cleaning pen provides 800+ cleanings per unit. The cassette cleaner provides 500 cleaning cycles and accepts replacement reels (ATC-NE-NS, 10 reels/set) for extended use.

Q: Can I save inspection images for reporting?
A: Yes. The mainframe includes an 8GB SD card for image capture and video recording. Images can be transferred to a PC via USB for documentation and customer reporting.

Q: What warranty does this kit come with?
A: This kit includes a 12-month warranty. For support, bulk pricing, or technical questions, contact us at sales@splicermarket.com.
