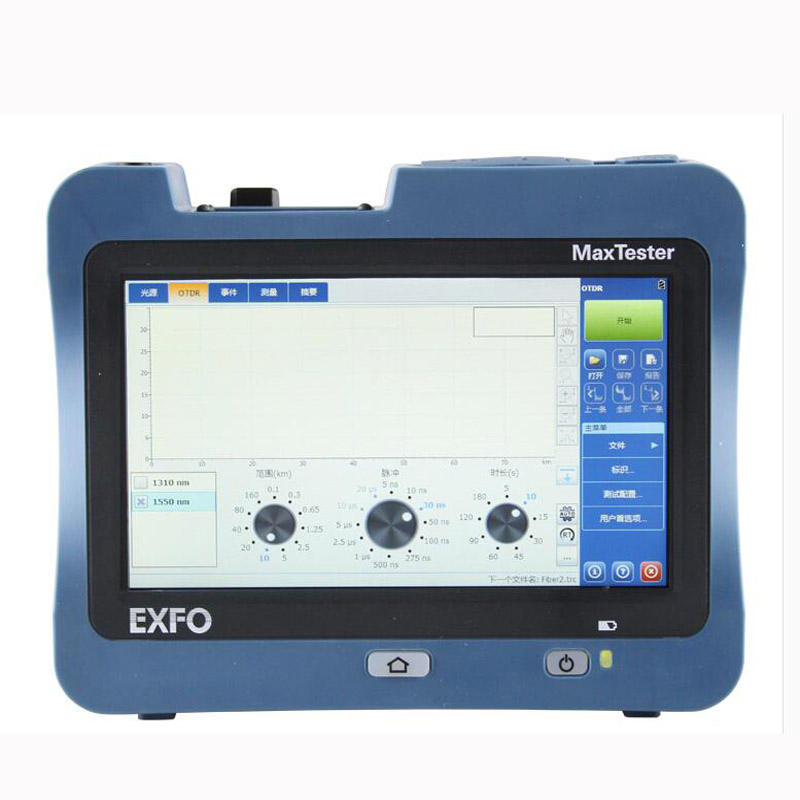

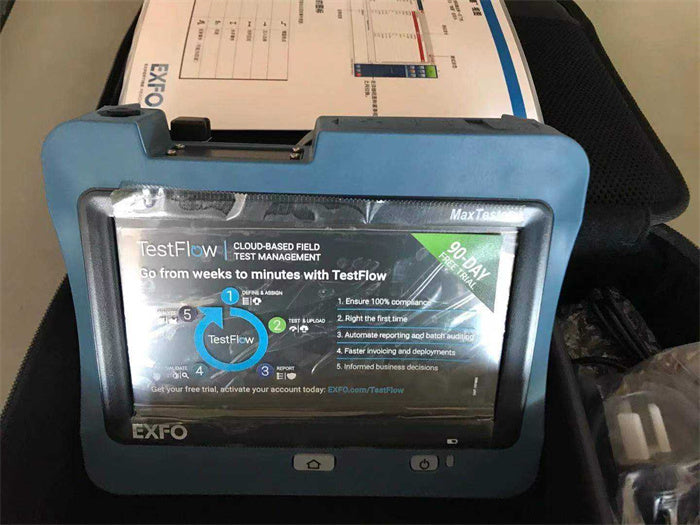

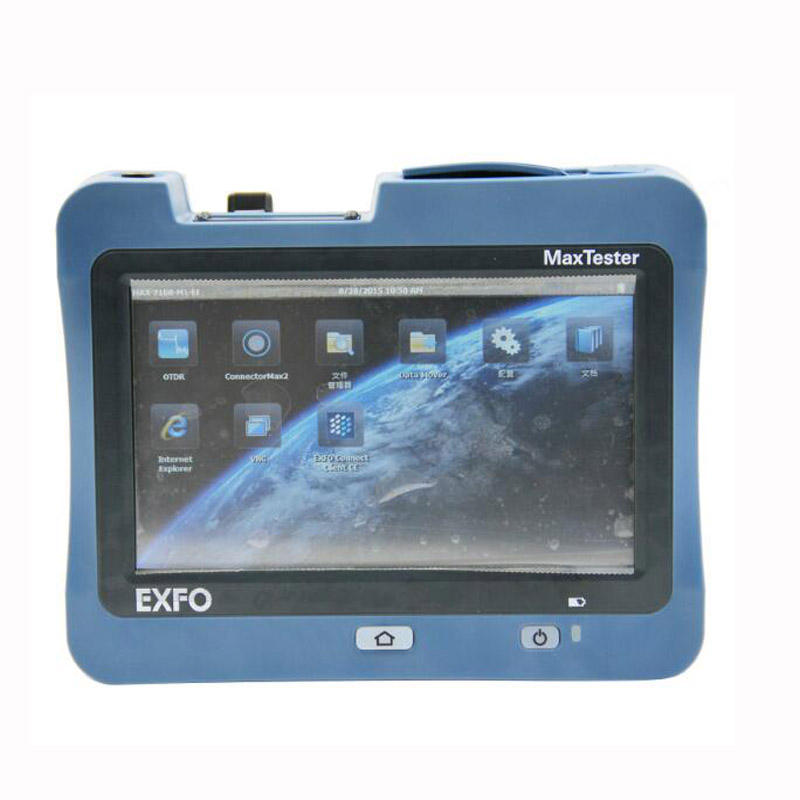

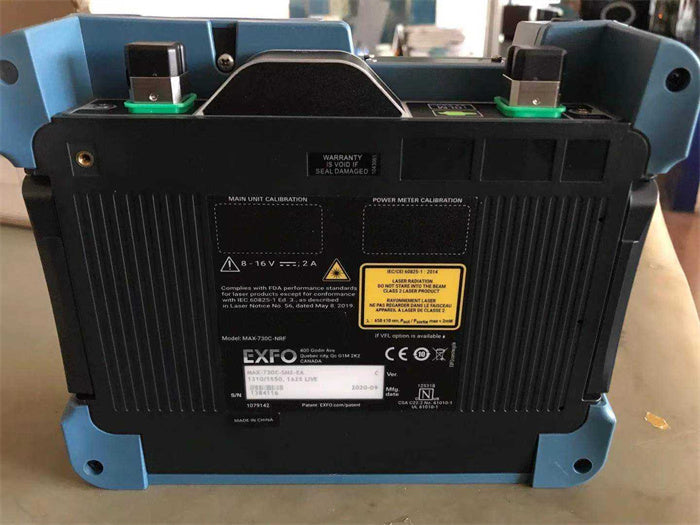

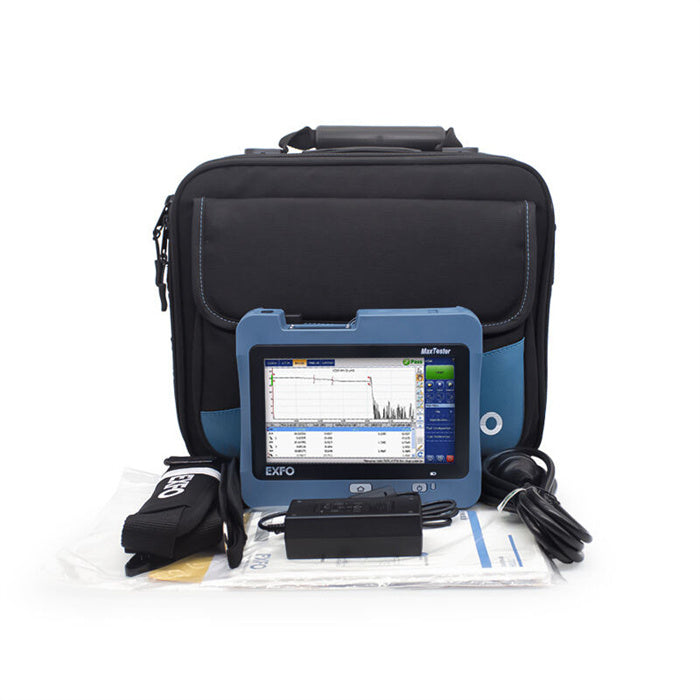

EXFO MaxTester MAX-730C-SM2-Oi 1310/1550/1625nm SM pon OTDR
EXFO MaxTester MAX-730C-SM2-Oi 1310/1550/1625nm SM pon OTDR
Best EXFO MaxTester MAX 730C-SM2 1310/1550,filter1625nm iOLM OTDR
KEY FEATURES
Handy, lightweight, powerful, tablet-inspired design
7-inch, outdoor-enhanced touchscreen–the biggest in the
handheld industry
12-hour autonomy
Dead zones: EDZ 0.5 m, ADZ 2.5 m
Dynamic range: 39/38/39 dB
Rugged design built for outside plant
iOLM-ready: intelligent and dynamic application that turns
complex OTDR trace analysis into a one-touch task
APPLICATIONS
FTTx/PON testing though splitters (up to 1x128)
Access network testing (point-to-point [P2P])
Metro links testing (P2P)
Live fifi ber troubleshooting
SPECIFICATIONS
Display |
7” outdoor enhanced touchscreen, 800✖400 TFT |
Interfaces |

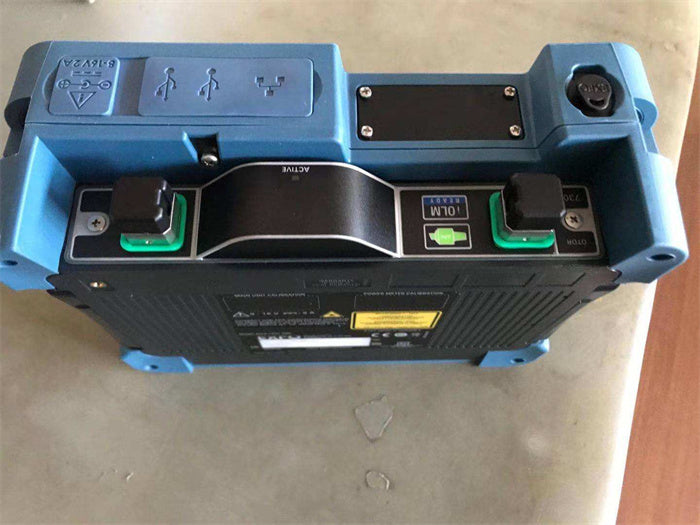

2x USB 2.0 ports, RJ45 LAN 10/100Mbit/s |
Storage |
2GB internal memory (20000 OTDR Traces, typical) |
Batteries |
Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) |
Power supply |
Power supply AC/DC adaptor, input 100-224 VAC, 50-60 Hz |
Wavelength (nm) |
1310 ± 20/1550 ± 20/1625 ± 10/1650 ± 5 |
SM live port built-in filter |
1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm 1650 nm: bandpass 1650 nm ± 7 nm isolation >50 dB out of 1650 nm ± 10 nm |
Dynamic range (dB) |
39/38/39/39 |
Event dead zone (m) |
0.5 |
Attenuation dead zone (m) |
2.5 |
PON dead zone (m) |
30 |
Distance range (km) |
0.1 to 400 |
Pulse width (ns) |
3 to 20 000 |
Linearity (dB/dB) |
±0.03 |
Loss threshold (dB) |
0.01 |
Loss resolution (dB) |
0.001 |
Sampling resolution (m) |
0.04 to 10 |
Sampling points |
Up to 256 000 |
Distance uncertainty (m) |
±(0.75 + 0.0025 % x distance + sampling resolution) |
Measurement time |
User-defined |
Reflectance accuracy (dB) |
±2 |
Typical real-time refresh (Hz) |
4 |
TECHNICAL SPECIFICATIONS (In-Line Power Meter) |
|
Input power range (dBm) |
1490 nm: –65 to 18 1550 nm: –50 to 28 |
PON power meter (nm) |
Two channels: 1490/1550 |
Broadband power meter (nm) |
One channel: 1270 to 1625 |
Power uncertainty (dB) |
±0.2 |
Calibrated wavelengths (nm) |
1310, 1550 and 1625 |
PON power meter spectral band (nm) |
1450 to 1530 |
Broadband power meter spectral band (nm) |
1270 to 1625 |
Display resolution (dB) |
0.1 |
PON power meter ORL (dB) |
–55 |
Broadband power meter ORL (dB) |
–50 |
GENERAL SPECIFICATIONS |
|
Size (H x W x D) |
166 mm x 200 mm x 68 mm |
Weight (with battery) |
1.5 kg |
Temperature |
Operating –10 °C to 50 °C Storage –40 °C to 70 °C |
Relative humidity |
0 % to 95 % noncondensing |
