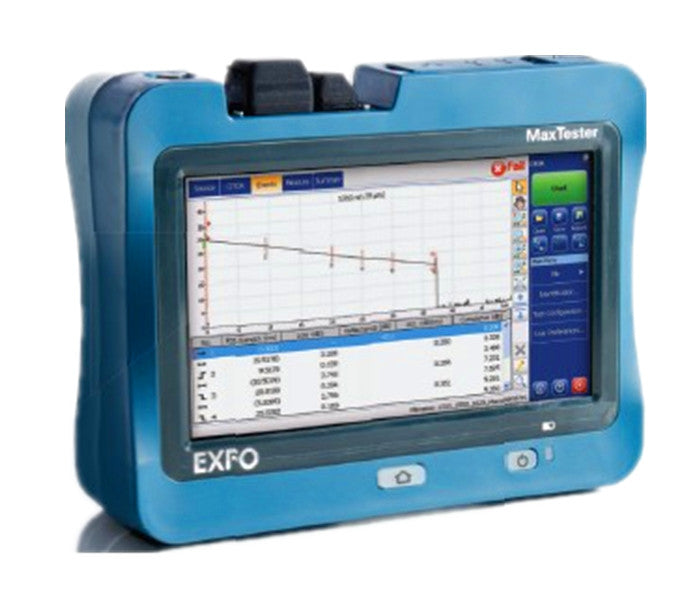

EXFO Max Tester Max-715B-M1-OI-EA
EXFO Max Tester Max-715B-M1-OI-EA
Couldn't load pickup availability
EXFO Max Tester Max-715B-M1-OI-EA (APC), FC or SC, signle model fiber OTDR
OTDR Wavelength: 1310/1550nm, 30/28dB.
software: Oi (OTDR + iOLM)
Brand new, with multi-language including English, Spanish, French....
with standard packaging: main unit, built-in battery, adaptor, power cable, soft bag, touch pen, calibration certificate.
Specifications:
|
Display |
7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
|
Interfaces |
Two USB 2.0 ports |
|
Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
|
Batteries |
Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
|
Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
|
Wavelength (nm) |
1310 ± 30/1550 ± 30 |
|
SM live port built-in filter |
1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm |
|
Dynamic range (dB) |
30/28 |
|
Event dead zone (m) |
1 |
|
Attenuation dead zone (m) |
4 |
|
PON dead zone (m) |
35 |
|
Distance range (km) |
0.1 to 160 |
|
Pulse width (ns) |
5 to 20 000 |
|
Linearity (dB/dB) |
±0.05 |
|
Loss threshold (dB) |
0.01 |
|
Loss resolution (dB) |
0.001 |
|
Sampling resolution (m) |
0.04 to 5 |
|
Sampling points |
Up to 256 000 |
|
Distance uncertainty (m) |
±(0.75 + 0.0025 % x distance + sampling resolution) |
|
Measurement time |
User-defined (maximum: 60 minutes) |
|
Reflectance accuracy (dB) |
±2 |
|
Typical real-time refresh (Hz) |
3
|
