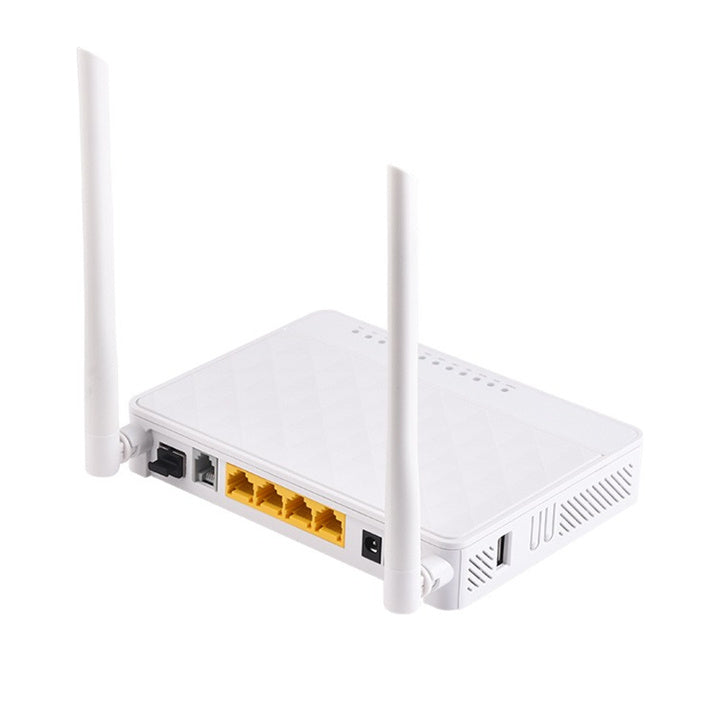

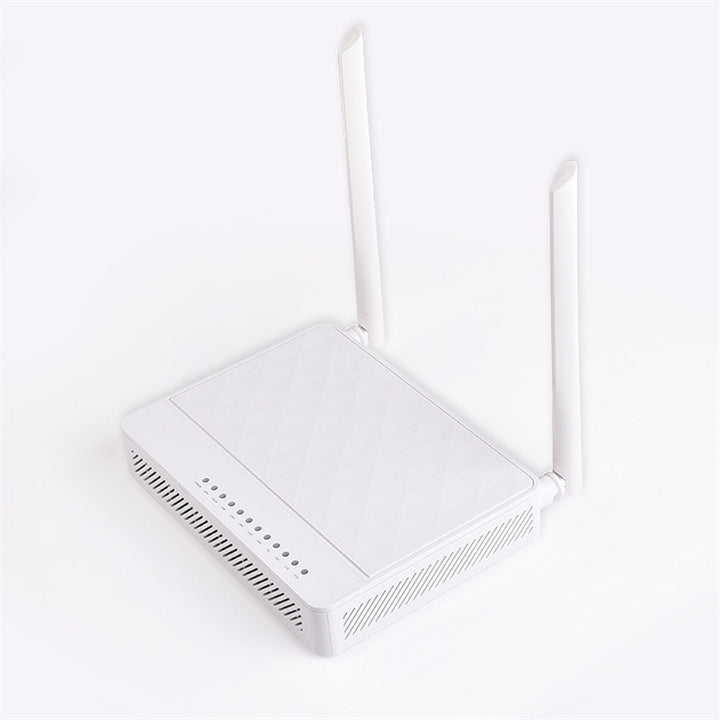

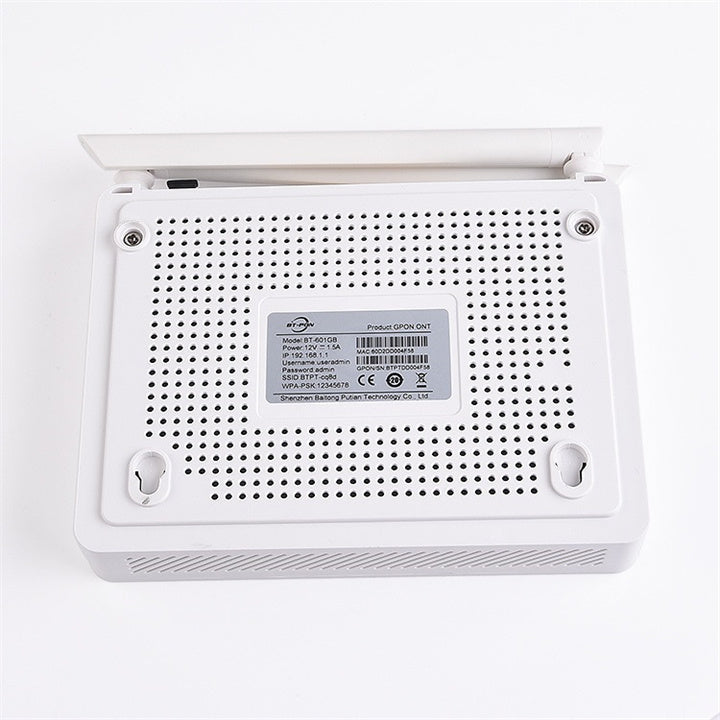

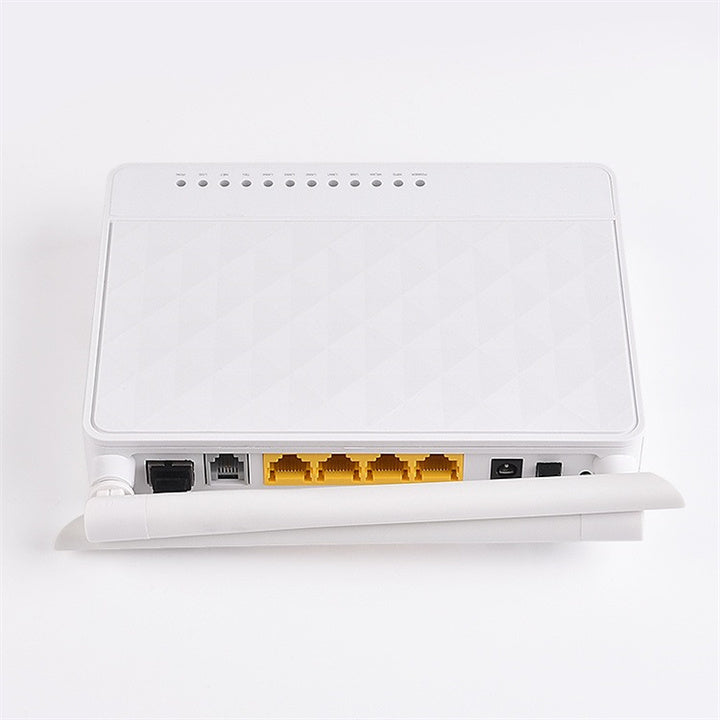

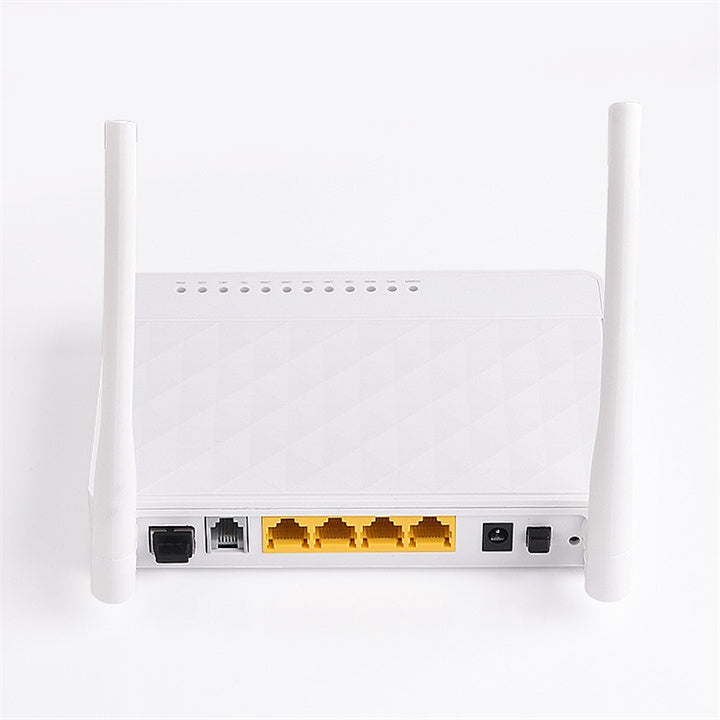

GPON ONU FTTH Modem Fiber Optic ONT Router 1GE+3FE+VOIP+2.4G WLAN+1USB GPON

GPON ONU FTTH Modem Fiber Optic ONT Router 1GE+3FE+VOIP+2.4G WLAN+1USB GPON

Regular price $43.00
Regular price $60.00 Sale price $43.00
Sale Sold out
Shipping calculated at checkout.

GPON ONU FTTH Modem Fiber Optic ONT Router 1GE+3FE+VOIP+2.4G WLAN+1USB GPON

SM-601E model ONU is a user terminal device independently developed by BTPT in line with such industrial background. The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH GPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Advantage

1.Hardware platform: It adopts the most mainstream BROCOM 6838 platform
2.Hardware interface: 1GE+3FE+WIFI+POT+USB
3.Compatibility: The product is compatible with mainstream OLT in the market right now, such as huawei, zte, fiberhone and other small brands.

Features:

Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Support PPPoE/ Static IP/ DHCP
Bi-directional FEC
Support IPv4, IPv6 and IPv4/IPv6
Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
Support DDSN, ALG, DMZ and UPNP
Provide POTS interface, support SIP protocolPOTS integrated circuit test complies GR-909
