ELOIK

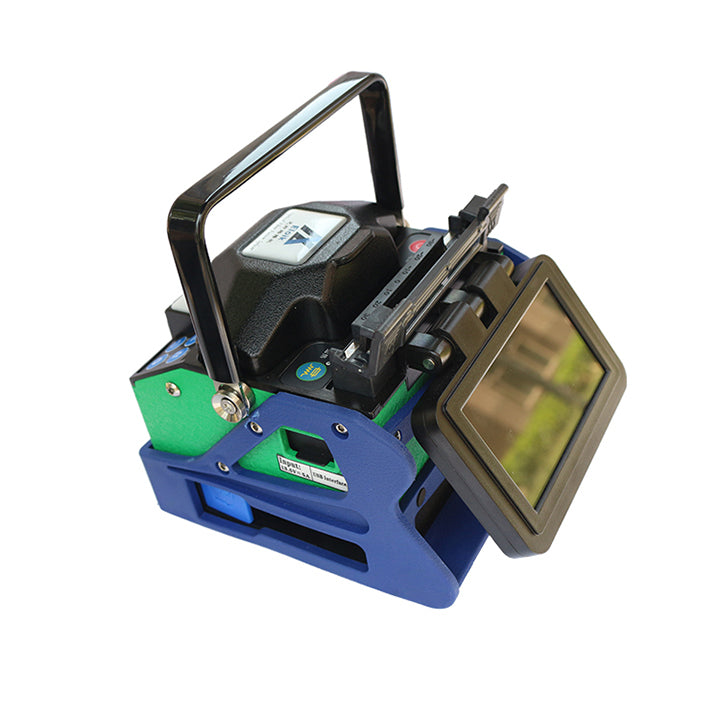

Eloik ALK-88A Fusion Splicer

Eloik ALK-88A Fusion Splicer

Regular price $2,450.00
Regular price $2,800.00 Sale price $2,450.00
Sale Sold out
Shipping calculated at checkout.

Eloik ALK-88A Fiber Optic Splicer Splicing Machine For Sale Eloik ALK-88A Optical Fiber Fusion Splicer

ELOIK FUSION SPLICER ALK-88A

  1. Hardness: The body is made from titanium alloy, and it has rubber protection function , quakeproof, waterproof, dustproof .
  2. Fast: 7s fast splicing, 9s fast heating, support continuous heating average efficiency improve 2-3times.
  3. Long lifetime: 1group batteries. 260 fiber splicing, no memory effect Lithium Batteries, the fiber cleaver has 16 blade, long lifetime.
  4. Convenience: convenient for maintenance
  5. 4.3 inches high Resolution LCD display
  6. USB Port Shockproof, Dustproof, Rainproof
  7. 6800mAhPluggable battery
  8. Bright Low-Power LED Lights, To Ensure Normal Splicing At Low Light Conditions
  9. The languages: Chinese, English, Russian, Portuguese, French, Spanish, Italian, Polish, Thai language.

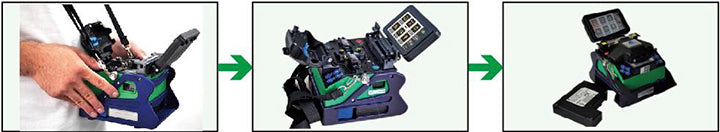

      Eloik ALK-88A optical fiber fusion splicer machine - Splicermarket.com

      Specifications

      Applicable Fibers

      SM(G.652/G.657), MM(G.651), DS(G.653), NZDS(G.655), EDF, BIF/UBIF

      Applicable Fiber Core

      Single core

      Fiber Diameter

      Cladding diameter 80-150μm, Coating Diameter 100-1000μm

      Fusion Splice Model

      Prestore: 40 Groups; User Define: 80 Groups

      Average Fusion Splice Loss

      0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

      Echo Loss

      Better then 60dB

      Splice Duration Time

      9sec (typical parameter); 7sec (fast mode)

      Loss Estimation of Splicing
      Exist
      Tension Test

      ≥2N(Optional Big Rally fusion splicer 8N)

      Display
      4.3 inch colorized LCD, optional language
      Optical Fiber Maginification

      X&Y: 180 times; X/Y: 350 times

      Power Supply

      11.1V Lithium battery, 13.5V/5A power adapter

      Battery

      6800mAh Li-Battery. Typically work 260 times (fusion splicing/heating), single battery charge 3hours, can be recycled 500 times.

      Splice Result Storage

      10,000 groups of the latest records

      Data Interface

      USB2.0

      Operating Enviroment

      Altitude: 0~5000m; relative humidity: <95%; temperature: -20℃~55℃; maximum wind speed: 15m/s

      Storage Enviroment

      Relative humidity: <95%; temperature: -40℃~80℃ (except battery);

      Weight of equipment

      1.89kg (include battery)

      Size/Weight

      166D x 142W x 139H (mm) / 1.53kg(1.93 with battery)

      Applicable Fiber Cable Diameter

      2mm, 3mm, 4mm, 6mm

      Applicable sleeve length 60mm, 45mm, 40mm(FP-03)

      Heating Time

      Fusion-protection sleeve 9s fast heating (customizable)

      Heating Temperature

      Below 300°C (customizable)

      Eloik ALK-88A Fiber Optic splicing machine

      Package Includes

      Fusion Splicer ALK-88A | Fiber Cleaver | Backup Electrode Bar
      Miller Pincers| Cable Stripper| Carrying Bag | Plastic tweezers
      Dust-Blowing Ball with Brush | Power Adapter & Cable | Cooling Tray
      Multifunction Fixture | Mini Pump Alcohol Bottle | Instruction Manual

      Fiber Optic Fusion Splicer Eloik ALK-88A - Splicermarket.com
