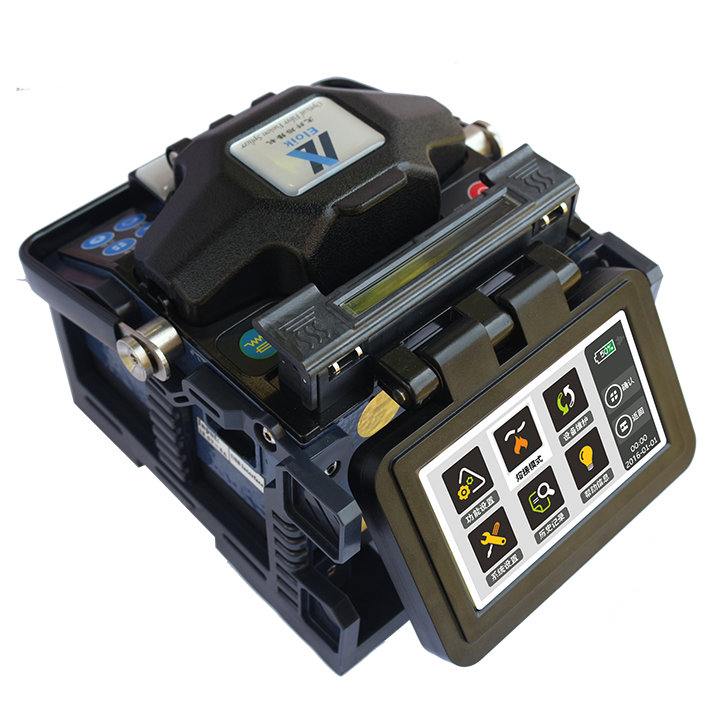

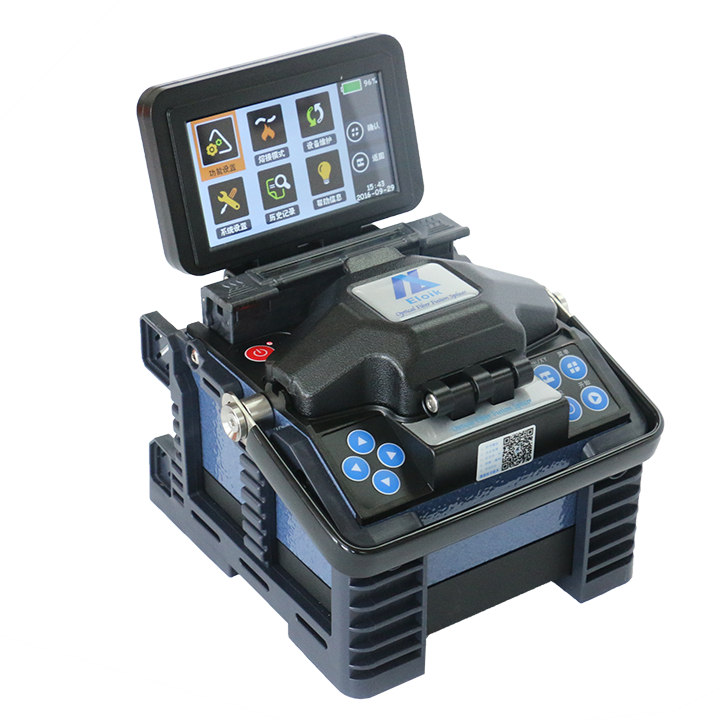

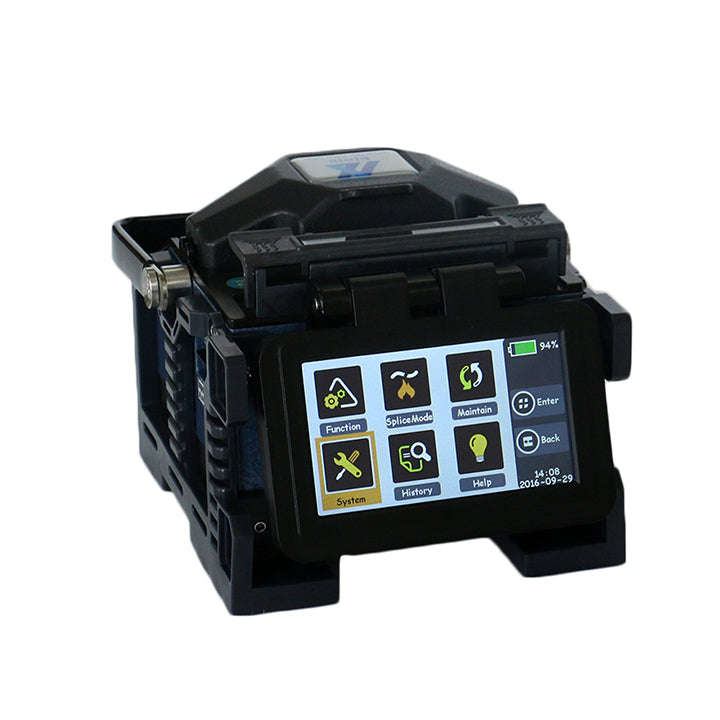

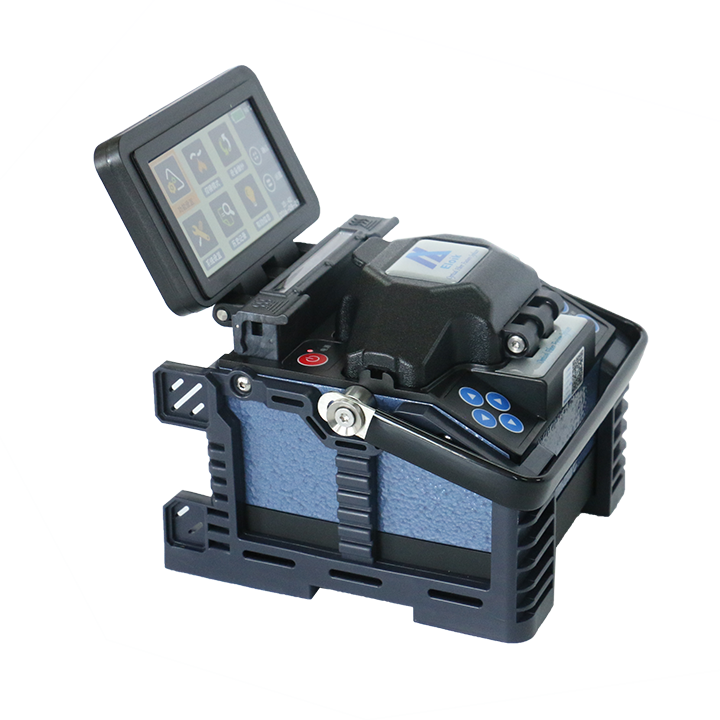

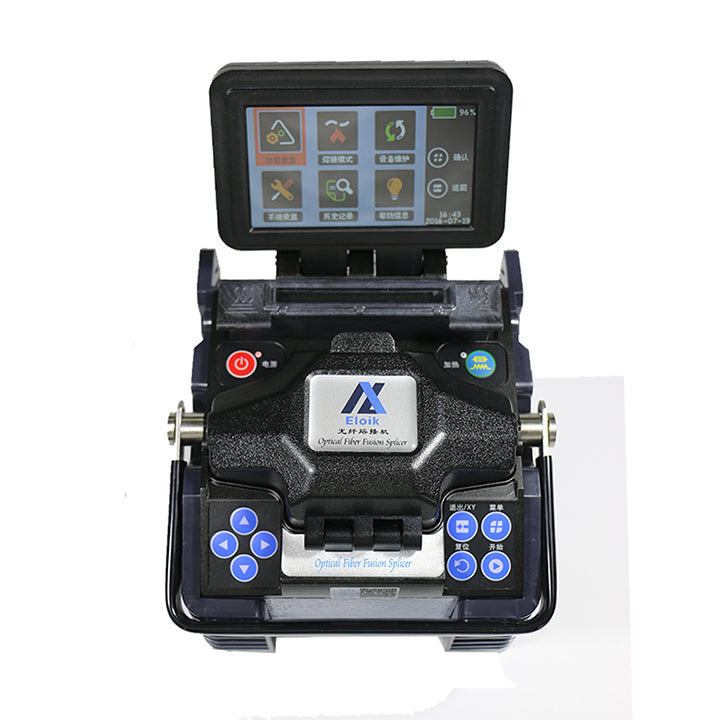

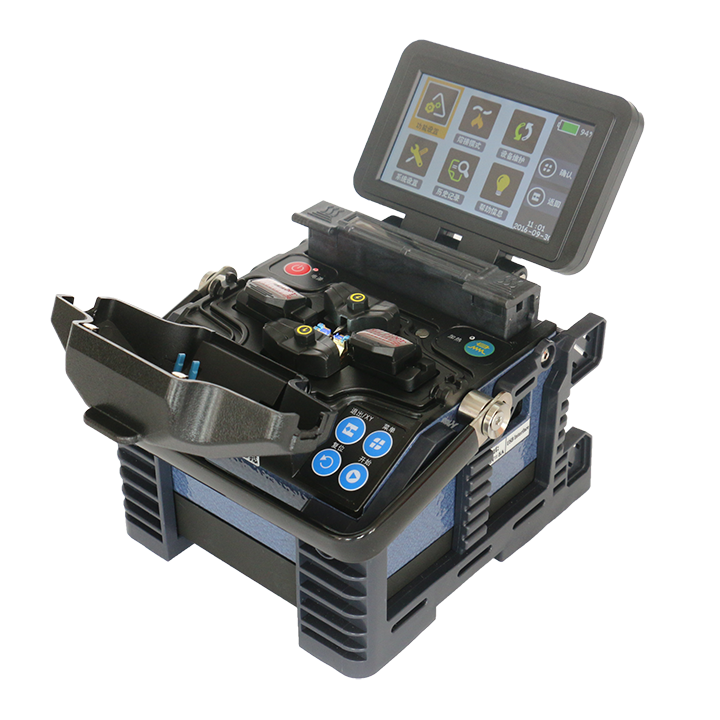

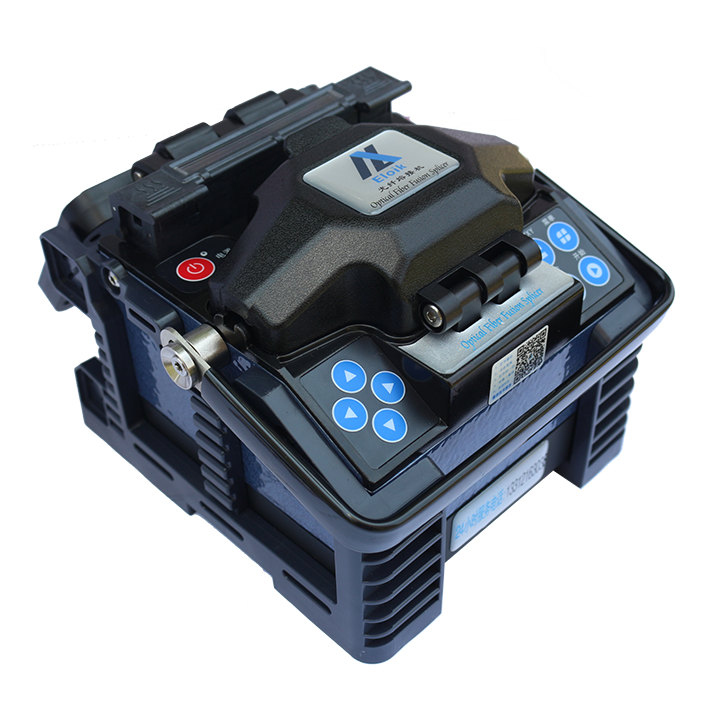

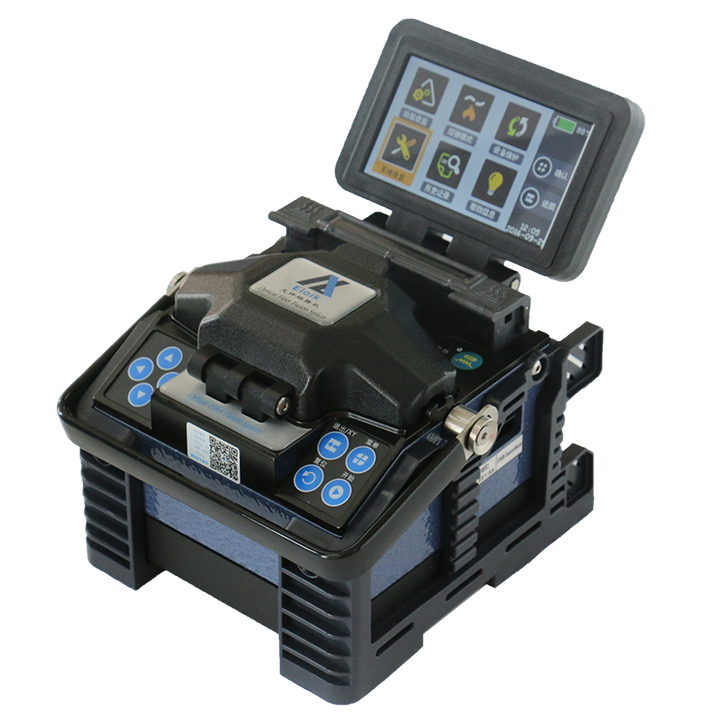

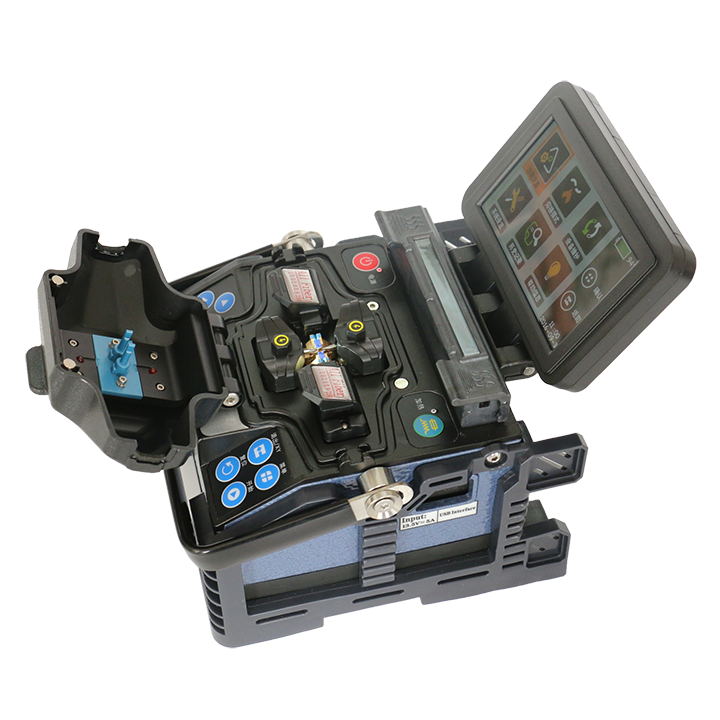

Eloik ALK-88 Fusion Splicer

Eloik ALK-88 Fusion Splicer

Regular price $2,600.00
Regular price $3,000.00 Sale price $2,600.00
Sale Sold out
Shipping calculated at checkout.

Eloik ALK-88 Fiber Optic Splicing Machine For SaleEloik ALK-88 fiber optic fusion splicer


  • Fast:
    --7S Fast Splicing
    --17S V-Groove Fast Heating
  • Great Performance:
    --High Quality, Low Loss, Typical Splicing Loss SM≤0.02dB, MM≤0.01dB
    --4 Motors, Super Precision 0.1μm
  • High Reliability:
    --Water, Dust, Wind Resistance
    --Titanium Alloy Body, 5 Directions Anti-Shock Bar, Connection Points Reinforced with Gel
    --Software Online Upgrade Through Internet
    --24 Hours Online Technical Support
    Eloik ALK-88 fiber fusion splicer


    Applicable Fibers

    SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)

    Applicable Fiber Core

    Single core

    Fiber Diameter

    Cladding diameter 80-150μm, Coating Diameter 100-1000μm

    Fusion Splice Model

    Prestore: 40 Groups; User Define: 80 Groups

    Average Fusion Splice Loss

    0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

    Echo Loss

    Better then 60dB

    Splice Duration Time

    9sec (typical parameter); 7sec (fast mode)

    Loss Estimation of Splicing
    Tension Test


    Monitor 4.3 inch colorized LCD, supports Chinese, English, Russian, Portuguese, French, Spanish display
    Optical Fiber Maginification

    X&Y: 175 times; X/Y: 340 times

    Power Supply

    11.1V Lithium battery, 13.5V/5A power adapter


    Typically work 220 times (fusion splicing/heating), single battery charge 3hours, can be recycled 500 times.

    Splice Result Storage

    10,000 groups of the latest records

    Data Interface


    Operating Enviroment

    Altitude: 0~5000m; relative humidity: <95%; temperature: -20℃~55℃; maximum wind speed: 15m/s

    Storage Enviroment

    Relative humidity: <95%; temperature: -40℃~80℃ (except battery);

    Weight of equipment

    1.89kg (include battery)


    166D x 140W x 130H (mm)

    Applicable Fiber Cable Diameter

    250μm, 900μm, 400μm(FP-03)

    Heating Time


    Heating Temperature


    Eloik ALK-88 Fusion Splicer

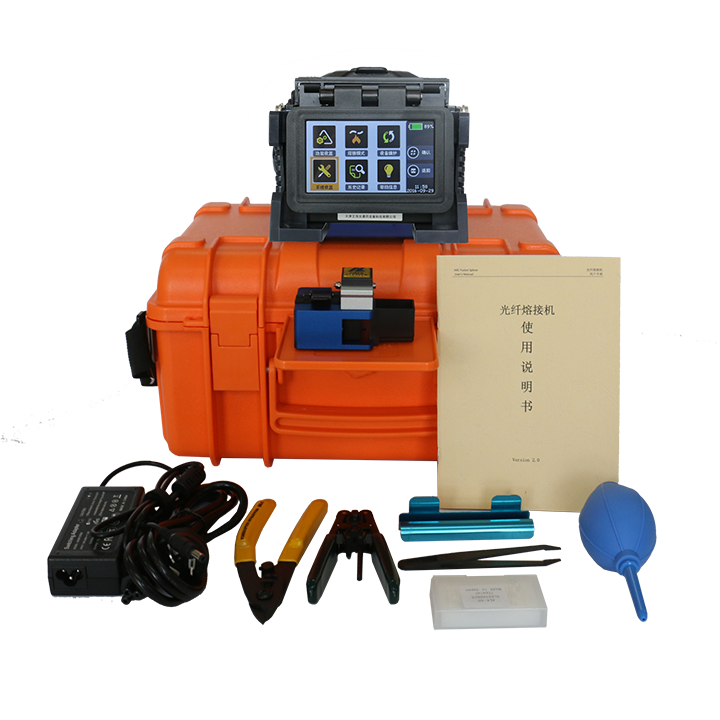

    Package Includes

    Fusion Splicer ALK-88 | Fiber Cleaver | Backup Electrode Bar
    Miller Pincers| Cable Stripper| Carrying Bag | Plastic tweezers
    Dust-Blowing Ball with Brush | Power Adapter & Cable | Cooling Tray
    Multifunction Fixture | Mini Pump Alcohol Bottle | Instruction Manual

    Eloik ALK-88 Splicing Machine
