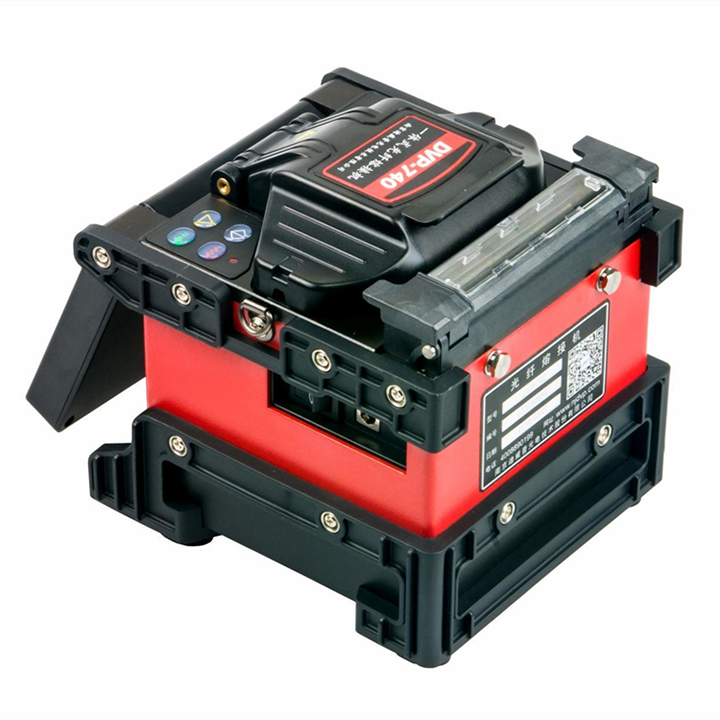

DVP SINGLE FIBE FUSION SPICER 740

DVP SINGLE FIBE FUSION SPICER 740

Regular price $899.00
Regular price $1,000.00 Sale price $899.00
Sale Sold out
Shipping calculated at checkout.

DVP SINGLE FIBE FUSION SPICER 740

  • Compact & Light weight

  • Applied for Fibers, Cables and SOC (splice- on connector)

  • Integrated Holder Design

  • Fully Automatic, Semi-automatic and Manual Operation

  • Shockproof, Drop resistance

  • Power saving Function

  • 4.3 inch Color LCD monitor

  • USB&DC interface

Specifications

Applicable fibers

SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.

Fiber cleaved length

8-22mm

Average splice loss

0.02dB(SM)、0.01dB(MM)、0.04dB(DS)、0.04dB(NZDS)

Return loss

≥60dB

Tension test

2.0N(200gf)(Standard)

Protection sleeve length

20mm, 40mm, 60mm

Splice Program

5 groups of preset programs, 75 group of manual setting

Language

English, Chinese, Russian, Spanish, Portuguese.

Environment conditions

-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)

Storage environment

-40~ +80℃ (temperature) , 0~95%RH (humidity)

Power supply

AC adaptor: 85~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat

Dimensions/Weight

142(D)×122(W)×138(H)mm/1.95kg

Package Includes

Fusion Splicer DVP-740 | Fiber Cleaver | Electrodes
Charger | Drop Cable Stripper | Stripper | SOC Holder
Cooling Tray | Operation Case | User Manual


DVP-740 Fiber Optic Fusion Splicer Machine
