COMWAY C10S 6-Motor Core Alignment Fusion Splicer | 5G Ready Splicing Machine
COMWAY C10S 6-Motor Core Alignment Fusion Splicer | 5G Ready Splicing Machine
Couldn't load pickup availability

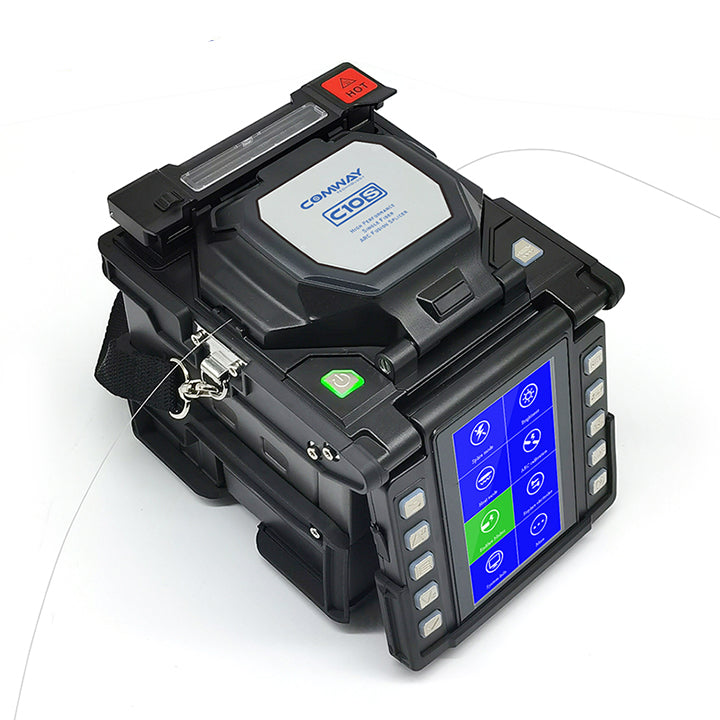

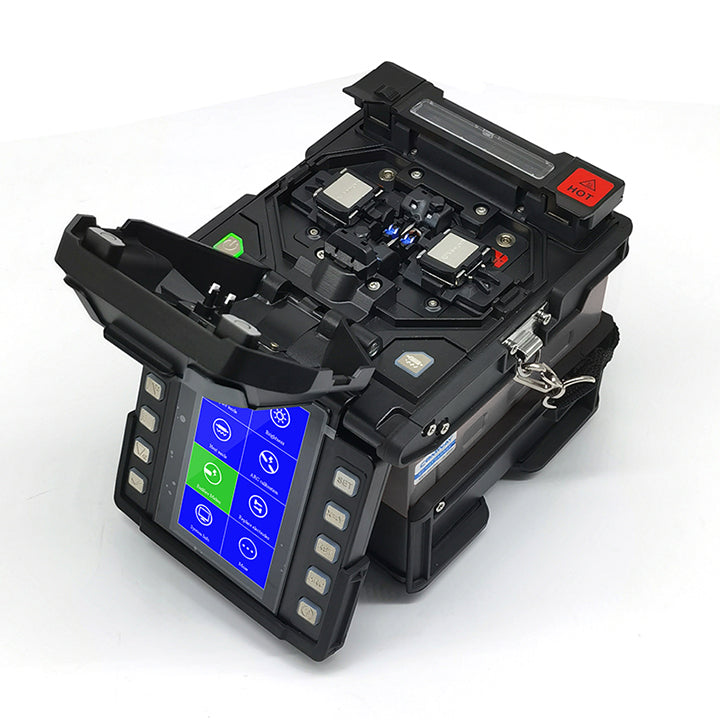

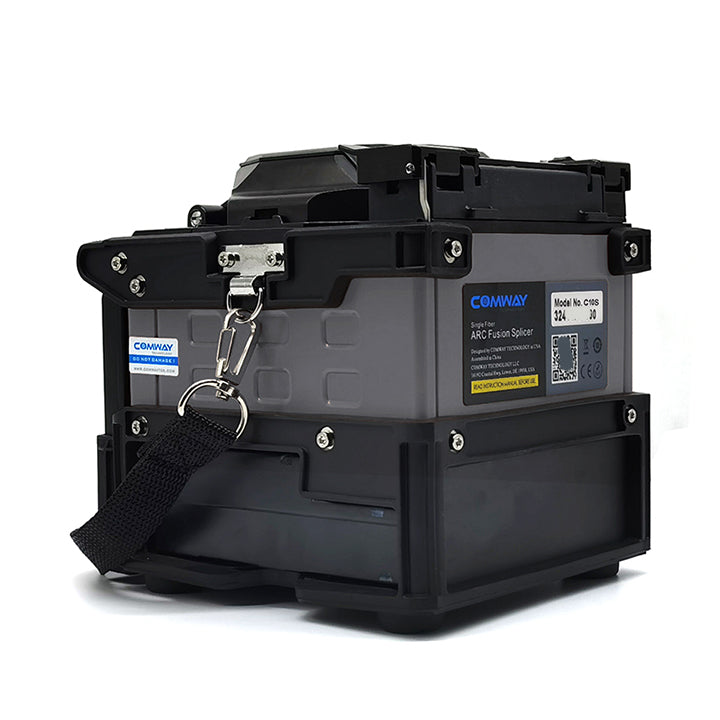

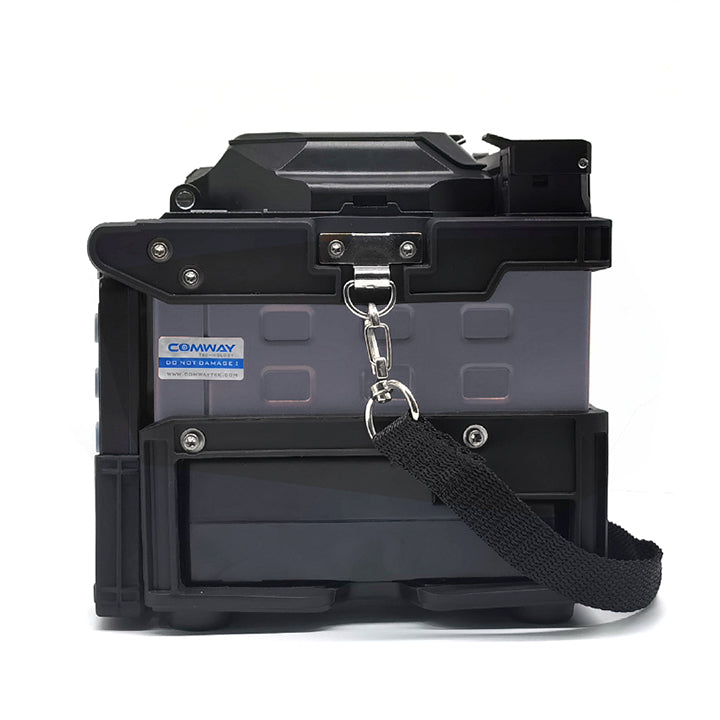

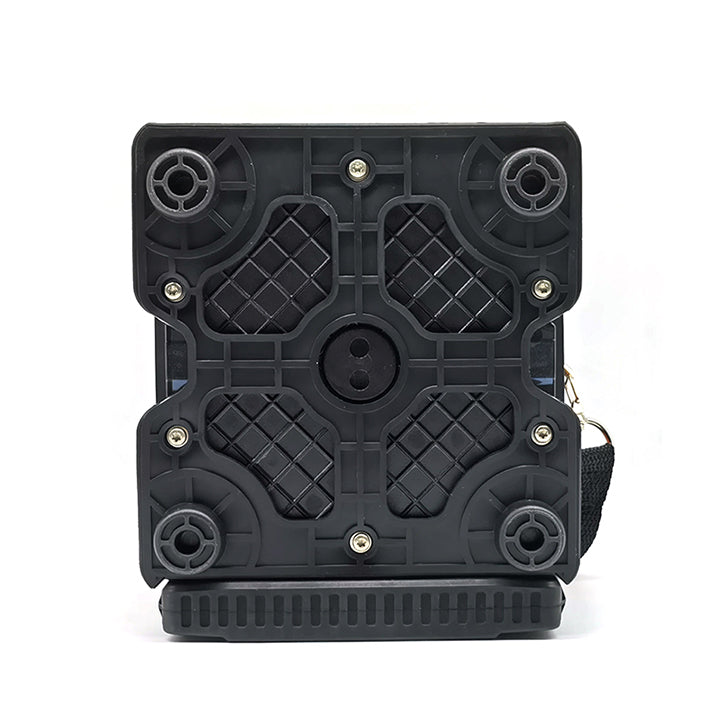

COMWAY C10S Core Alignment Fusion Splicer – Built for 5G Networks
The COMWAY C10S is a professional-grade, 6-motor core alignment fusion splicer engineered for high-demand fiber optic deployments. Whether you're building 5G infrastructure, FTTH networks, or enterprise backbone cabling, the C10S delivers industry-leading splice accuracy in just 5 seconds — even in harsh field conditions.
Why Choose the COMWAY C10S?
- 5G-Ready Fiber Support: Supports G.654E fiber type, making it future-proof for next-generation network builds
- 6-Motor Core Alignment: Ultra-precise alignment with 750X single-axis zoom for minimal splice loss (SM: 0.02dB)
- Fastest in Class: 5-second splice time and 8-second heating time maximize field productivity
- Built Tough: Waterproof, dust-proof, and anti-shock design for reliable performance in any environment
- Anti-Theft Security: Optional Remote Locker and GPS tracking protect your investment in the field
- Multi-Function Design: Functions as both a fiber endface melter and fusion splicer
Ideal Applications
- 5G base station fiber deployment
- FTTH/FTTB last-mile fiber installation
- Telecom backbone and metro network construction
- Enterprise data center cabling
- Long-haul fiber optic network maintenance
How the C10S Compares
Compared to standard cladding-alignment splicers, the C10S uses 6-motor active core alignment for significantly lower splice loss and higher consistency — critical for high-bandwidth 5G and DWDM applications. Its 750X zoom view (vs. the typical 300X) gives technicians unmatched fiber inspection capability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Alignment | 6-Motor Core Alignment |
| Fiber Types | SM (G.652), EB (G.654), MM (G.651), DS (G.653), NZ/NZDS (G.655), BI (G.657) |
| Splice Loss | SM: 0.02dB | MM: 0.01dB | DS: 0.04dB | NZ/NZDS: 0.04dB | BI: 0.02dB |
| Splice Time | 5 sec (SM Fast) / 10 sec (SM G652) |
| Heating Time | 8 sec (micro sleeves) / 12 sec (slim 60/40mm) |
| Fiber Magnification | 750X single axis (zoom) / 300X dual axis |

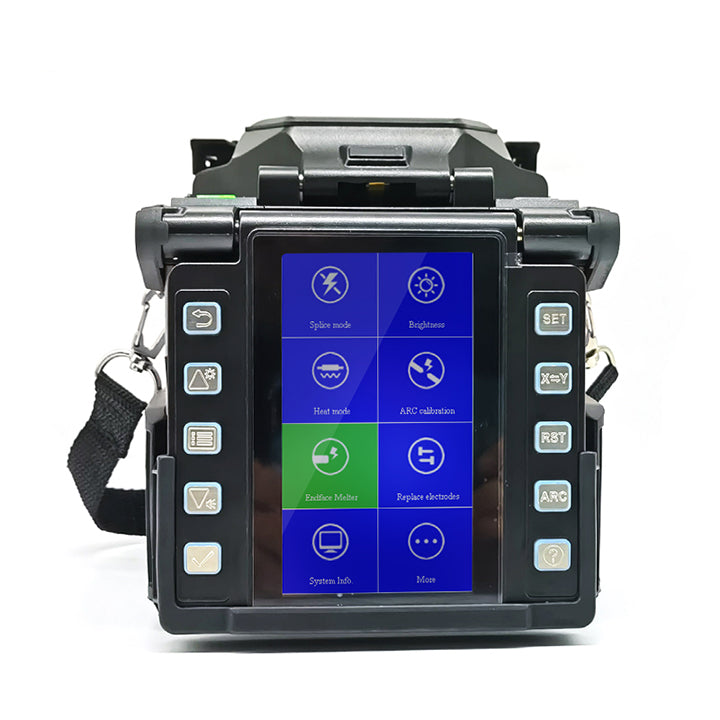

| Display | 4.3-inch high-resolution touchscreen |
| Battery | 5600mAh, 350+ splice & heat cycles |
| Splice Programs | Max. 200 splice / 30 heating programs |
| Data Storage | Max. 20,000 splice records + 800 images |
| Operating Conditions | -10°C to +50°C | 0–95% humidity | 0–5000m altitude | Wind up to 15m/s |
| Dimensions & Weight | 156 × 135 × 149mm | 2.0kg (2.5kg with battery) |
| Protection | Waterproof, Dust-proof, Anti-shock |
| Optional Features | Remote Locker, GPS Tracking |
| Warranty | 1 Year |
Package Contents
- COMWAY C10S Fusion Splicer
- High-Precision Cleaver C109
- Extra Electrodes
- Fiber Stripper
- High-Capacity Battery
- AC Adapter + AC Adapter Cable
- DC Charging Cable
- USB Cable
- Cooling Tray
- Carrying Case
- Hand Strap + Shoulder Strap
- Alcohol Bottle
- User Guide
Frequently Asked Questions
Q: What fiber types does the COMWAY C10S support?
A: The C10S supports SM (G.652), G.654E, MM (G.651), DS (G.653), NZ/NZDS (G.655), and BI (G.657) — covering virtually all standard and next-gen fiber types including 5G-specific G.654E.
Q: How does core alignment differ from cladding alignment?
A: Core alignment directly aligns the fiber cores using active image processing, resulting in lower splice loss (0.02dB vs. typically 0.1dB for cladding alignment). This is essential for long-haul and high-bandwidth networks.
Q: What is the battery life?
A: The 8400mAh battery supports over 350 splice and heat cycles per charge, suitable for a full day of field work.
Q: Does the C10S come with a cleaver?
A: Yes, the standard package includes the COMWAY High-Precision Cleaver C109.
Q: What warranty does the COMWAY C10S come with?
A: The C10S V2comes with a 2-year manufacturer warranty. Contact us at info@splicermarket.com for support.
