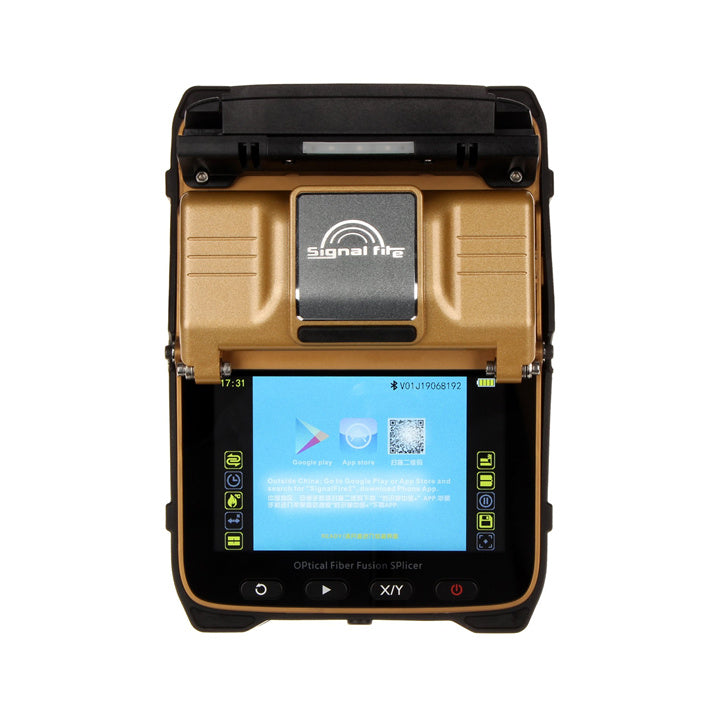

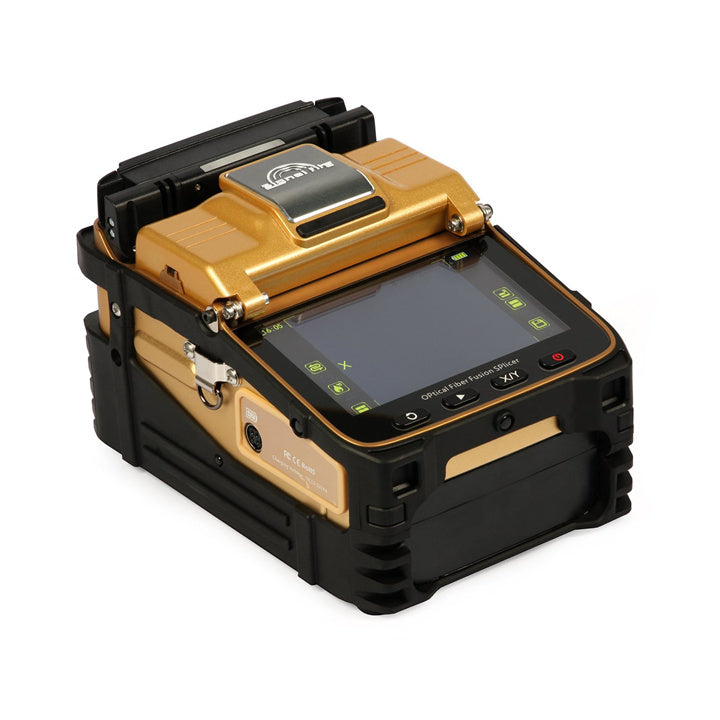

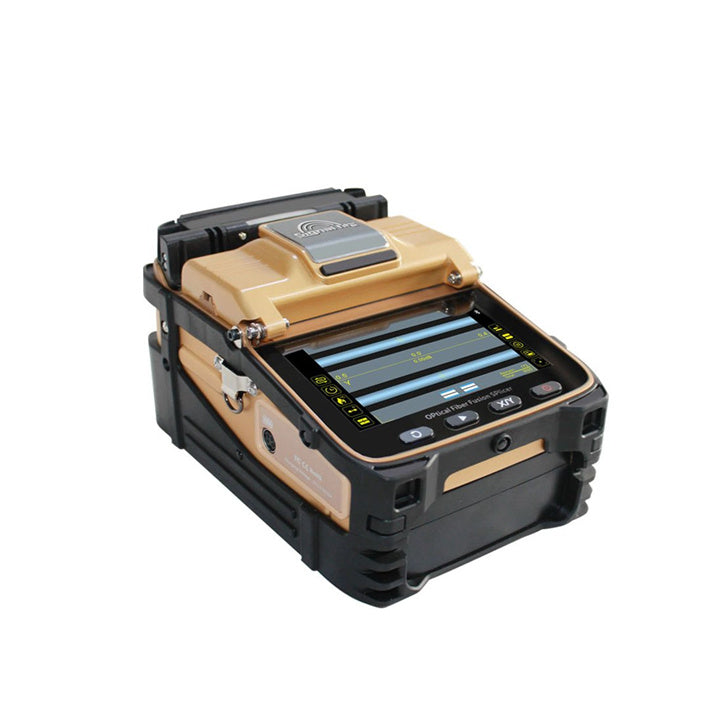

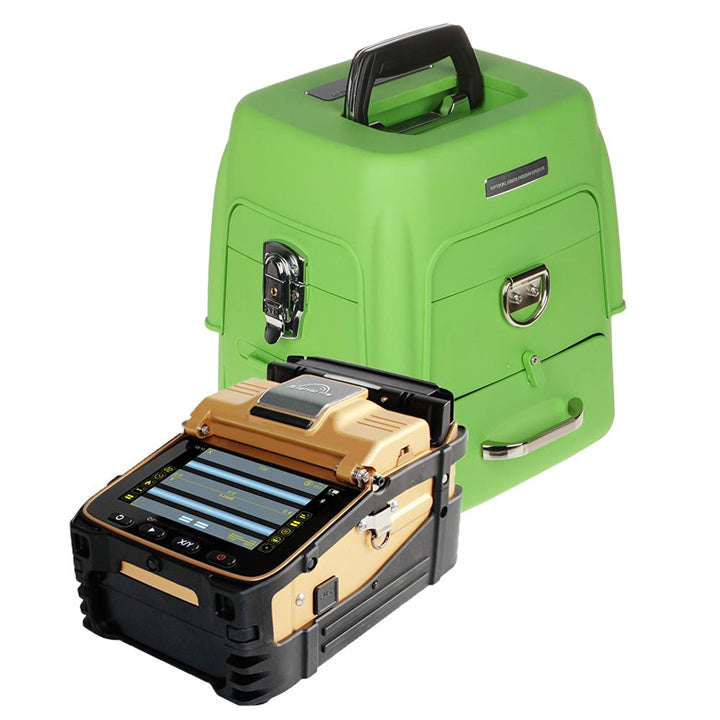

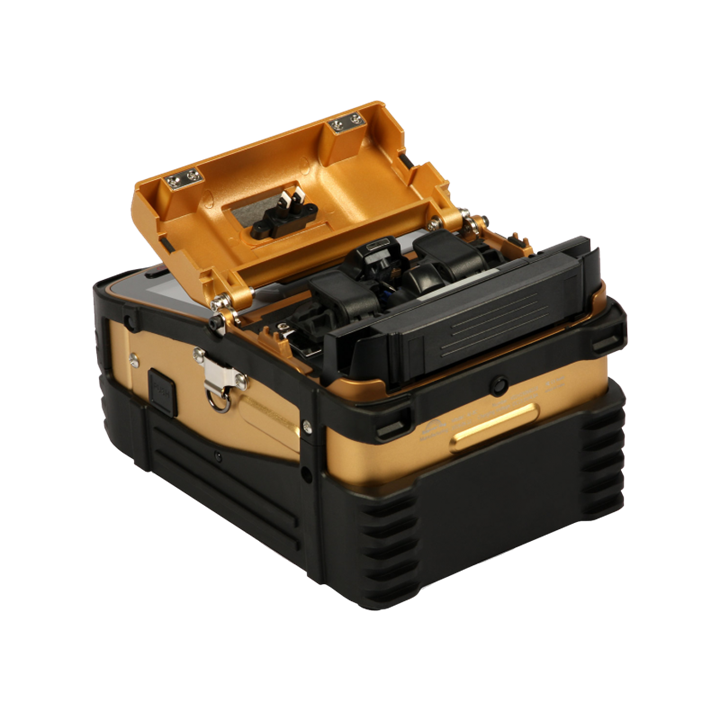

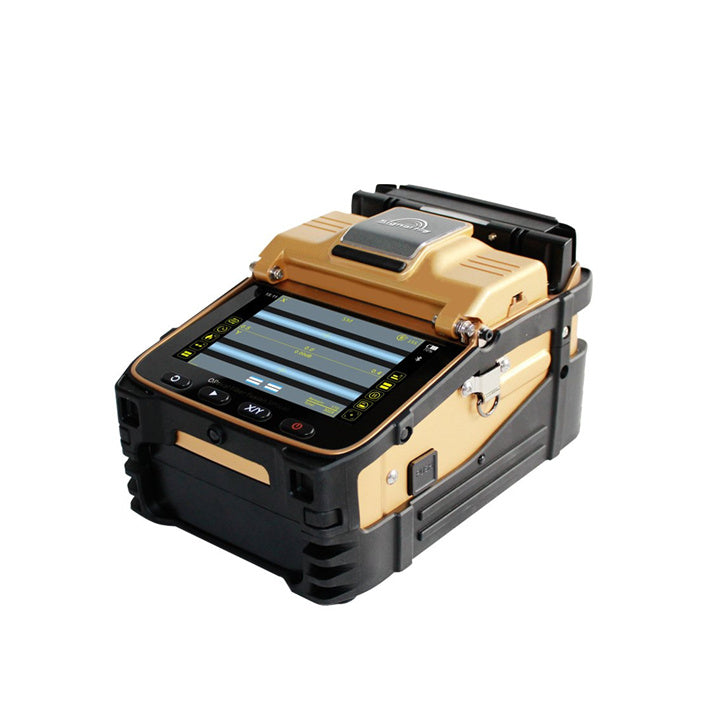

Signal Fire AI-8C Core Alignment Fusion Splicer

Signal Fire AI-8C Core Alignment Fusion Splicer

Regular price $999.00
Regular price $1,200.00 Sale price $999.00
Sale Sold out
Shipping calculated at checkout.
Optical Fiber Fusion Splicer AI-8C Price

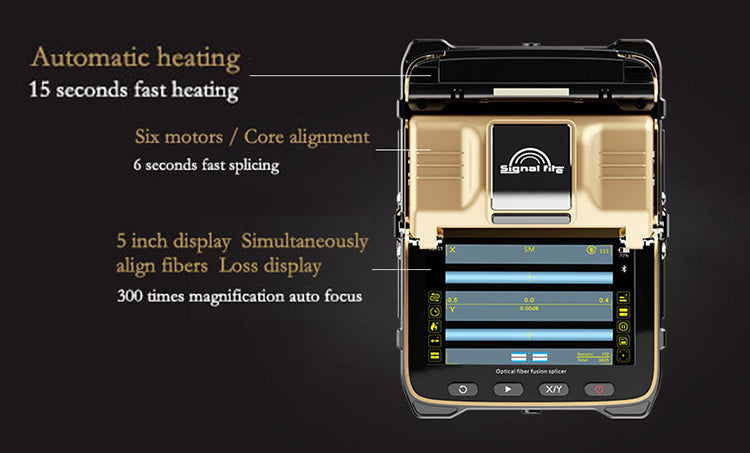

  • New Generation Fusion Splicer: Six Motors Core Aignment Technology, Auto Focus;
  • All Range Of Projects: 100KM Trunk Construction, FTTH, Security Monitory...
  • Fast Response: Industrial Quad-Core CPU;
  • User-Friendly: 5-Inch 800x480 Hight Resolution Screen, 300 Times Magnifications, Simple Operation but Intuitive;
  • High Efficiency: 6Secs Splicing, 15Secs Heating.
    Fiber Optic Splicer AI-8C


    Applicable Fibers


    Splice Loss


    Focus mode

    Auto focus


    300 for X or Y view, 150 for X or Y view

    Fiber alignment

    Core alignment Manual alignment

    Typical splicing time


    Typical heating time


    Control technology

    Real-time control and calibration of fusion ARC


    300 for X or Y view, 150 for X or Y view

    Return loss

    Better than 60DB

    Fiber diameter

    Cladding Diameter 80-150μm,Coating Diameter 100-1000μm

    Fiber Cleave Length

    Coating less than 250µm:8-16mmCoating less m250-1000μm:16mm

    Heat shrinkable tube


    Tension Test

    Standard 2N

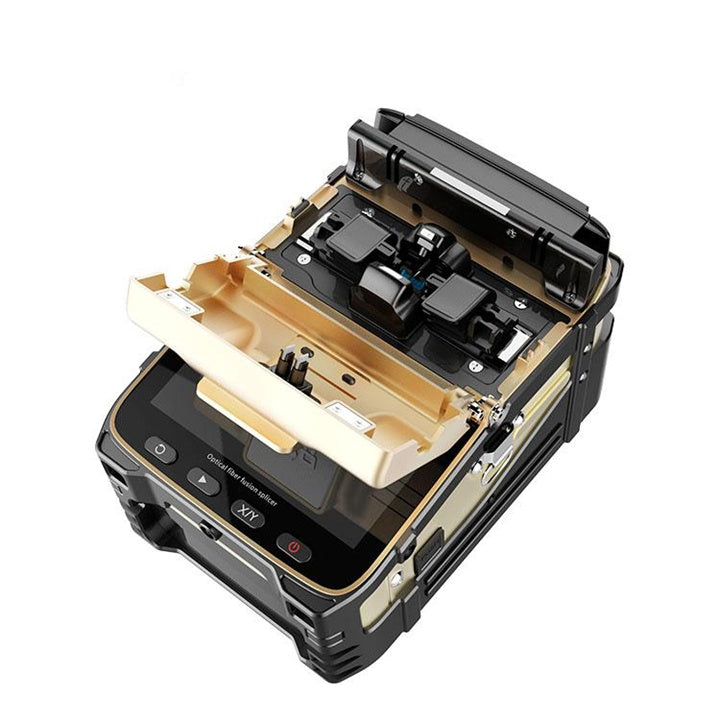

    Fiber holders

    Multi function holders,Applicable for SM, MM, bare fiber, pigtail


    5.1 inch TFT color display

    Splicing record storage

    Synchronize to the phone, the server to cloud storage unlimited

    Built-in battery

    7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times

    Power supply

    Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power

    Operating Conditions

    Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s




    Synchronous Operation | Speed Response | No Jammed | Super Experience


    Adapt to Desert, Snow, High Altitude, High Temperature And Other Bad Weather

    Fusion Fiber AI-8C


    Charging Time ≤ 3.5Hours | Continuous Splicing & Heating About 240 Times
    Fiber Fusion Skycom Portable AI-8


    Can Charge the Phone


    Splice SM, MM, Bare Fiber, Pigtail, Rubber-Insulated, Multi-Fiber Cable...


    Convenient for Night Operation


    Ultra Portable Design, Making the Outdoor work Easy and Comfortable

      Fiber Optic Splicer AI-8C Price

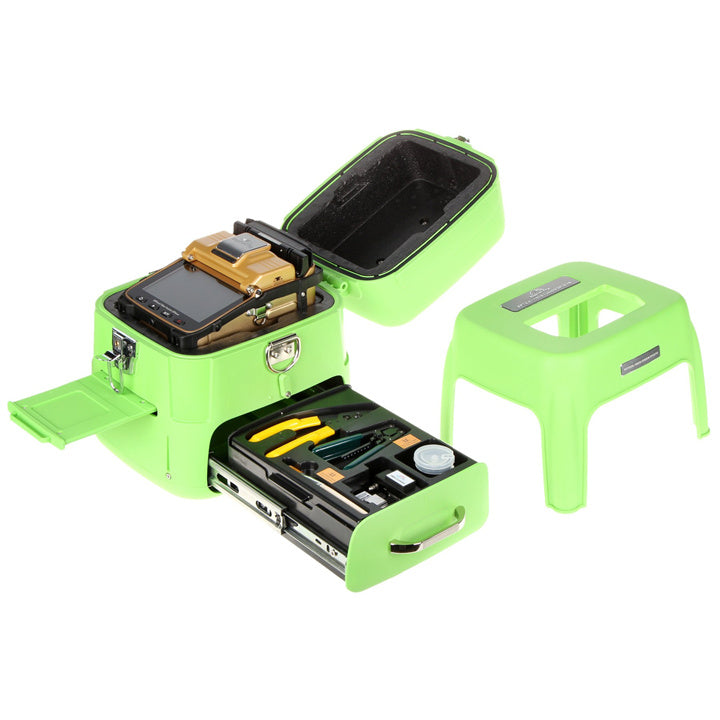

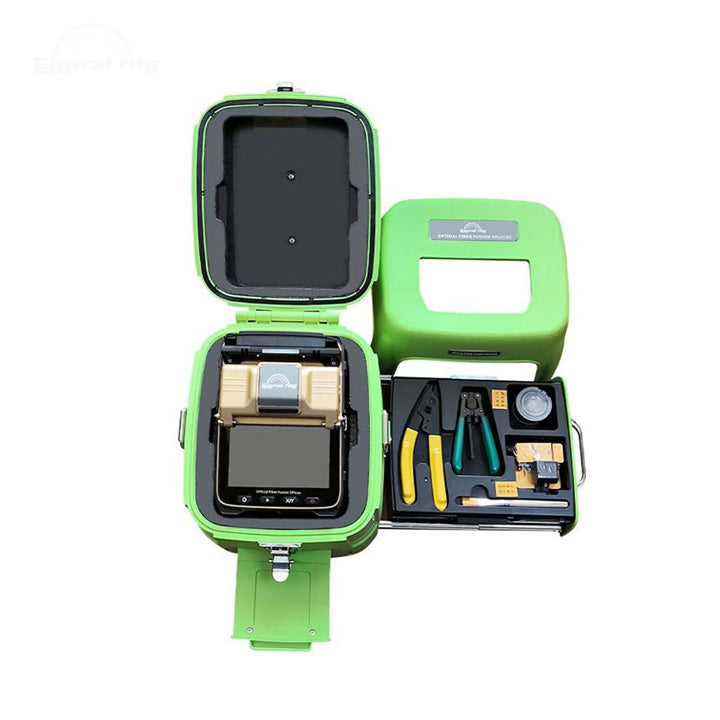

      Package Includes

      Fusion Splicer AI-8C | Fiber Cleaver | Wire Stripping Pliers

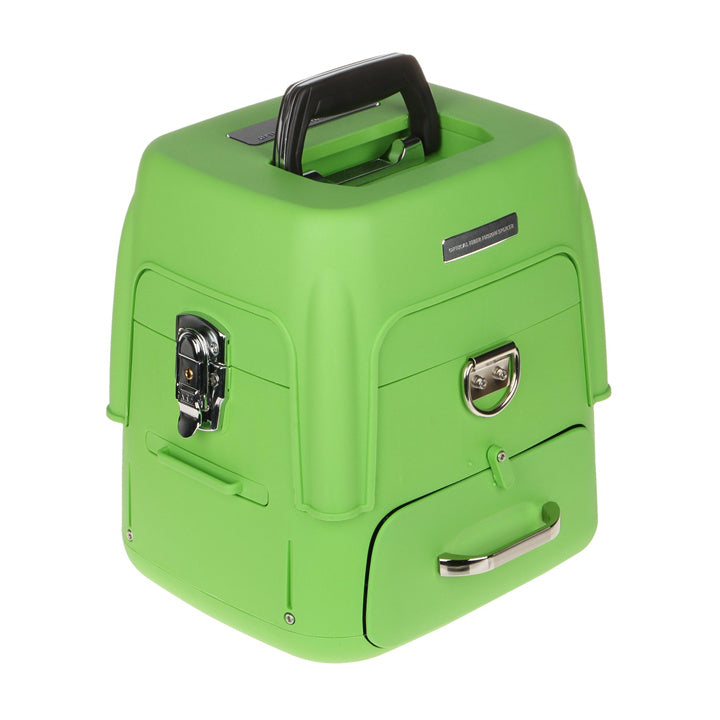

      Miller Stripper | LED Light | Hex Key | Carrying Case
      Fiber for ARC Calibration | Straps | Power Adapter | Alcohol Bottle
      Brush | User Manual
