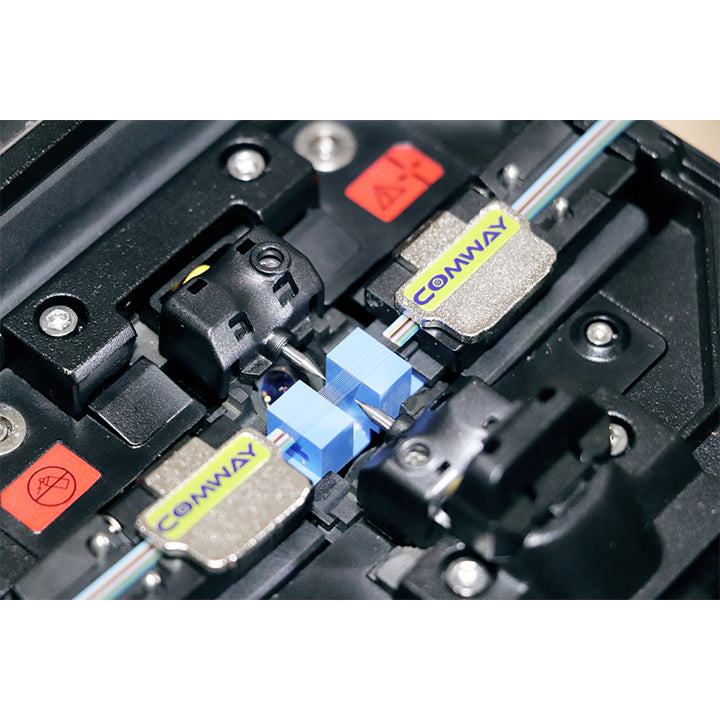

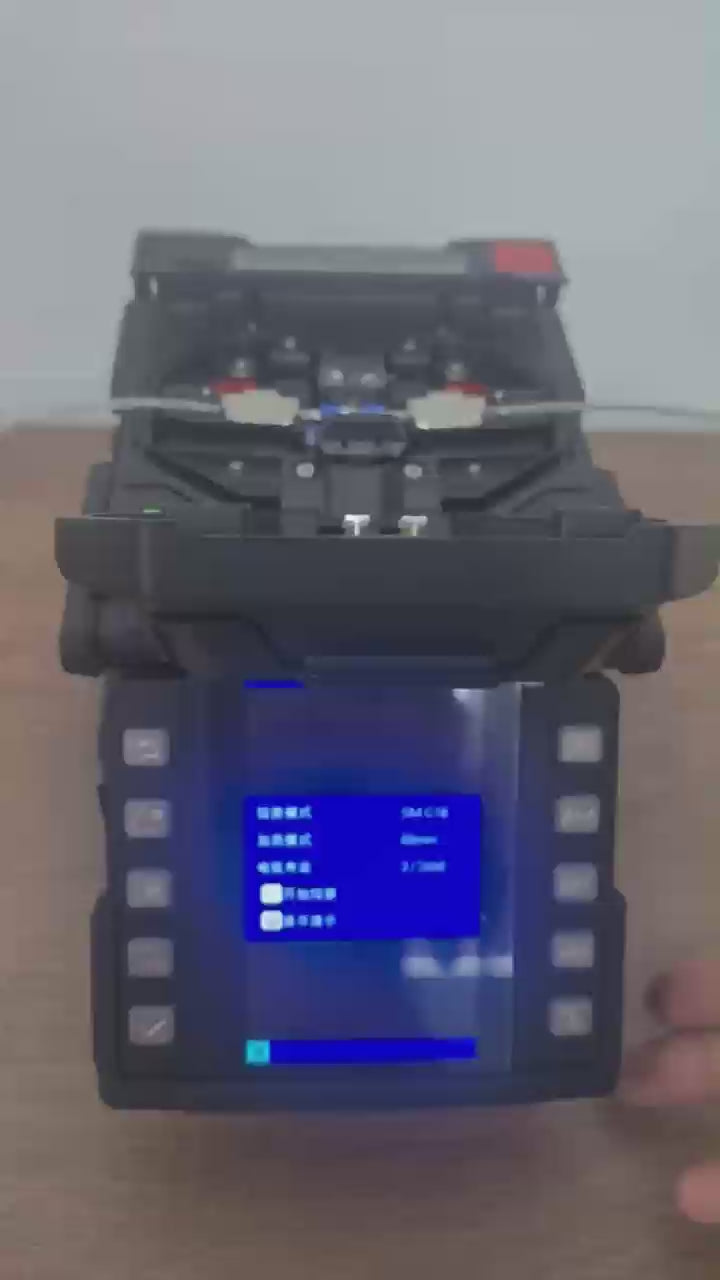

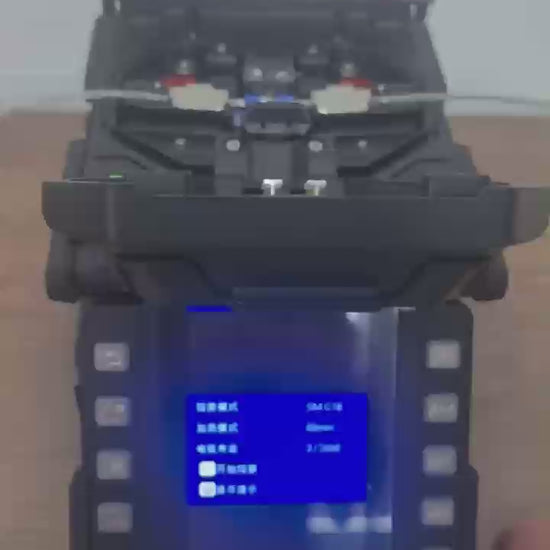

COMWAY C10R Ribbon fusion splicer Mass fusion splicer

Size and weight

D156×W135×H149(mm), 1.7kg (2.5kg with battery)

Applicable fibers

SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZ DS(ITU-T G.655), BI(ITU-T G.657)

Fiber count

Single to 12

Cladding dia. / Sheath dia.

Single: 125μm / 160μm to 3mm by fiber holder system

Ribbon: 125μm / Ribbon fiber thickness 0.25 to 0.4mm

Cleave length

9mm to 9.5mm

Splice mode

Total 100 splice modes

Typical splice time

13sec with SM FAST, 16sec with SM AUTO

Heating mode

20 heating modes

Typical tube heating time

35sec SM FAST

Applicable protection sleeve

25~60mm sleeve

Splice image capture

Max.800

Splice result storage

Max.10000

Typical splice loss

SM:0.05dB, MM:0.03dB,DS:0.08dB,NZ/NZ DS:0.08dB, BI:0.05dB

Return loss

>>60dB

Fiber View

Two axis CMOS camera with 4.1 inch high-light color LCD

Fiber magnification

X / Y (32-130X magnification), or both X and Y simultaneously

Operating condition

Altitude: 0~3800m above sea level,  Temperature : -10~+50℃,     Wind : 15m/sec  Humidity : 0 ~95%RH

Tension test

1.96~2.25N

Electrode life

2000 splices

Power supply

AC100~240V, 50/60Hz

Battery parameters

8400mAh high capacity battery, more than 200 times splicing and heating

Terminal

USB 2.0 connector for PC communication.

Other features

Time-delay password against theft

ID electrode against fake

Option

GPS location system
