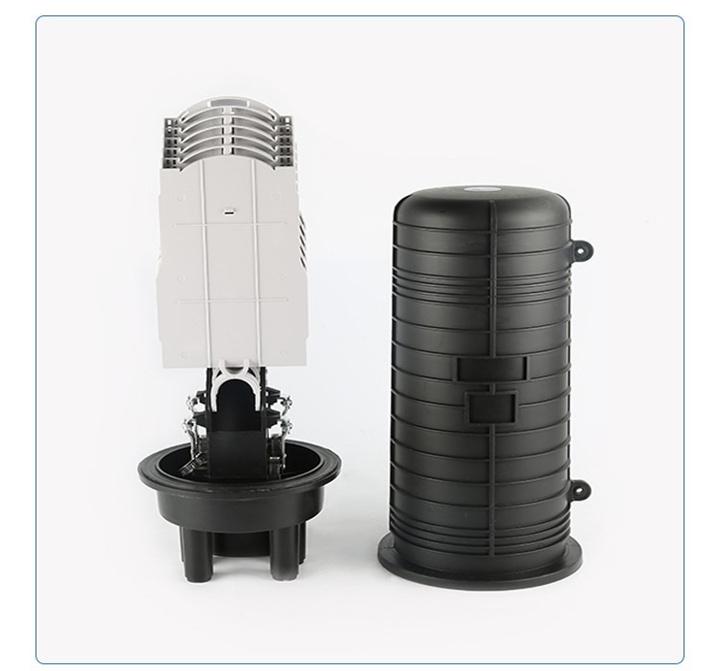

24 cores Fiber Optic Enclosure Plastic optical fiber distribution box optic splice joint closure Dome Fiber Optic Splicing Closure

24 cores Fiber Optic Enclosure Plastic optical fiber distribution box optic splice joint closure Dome Fiber Optic Splicing Closure

Regular price $39.00
Regular price $45.00 Sale price $39.00
Sale Sold out
Shipping calculated at checkout.

24 cores Fiber Optic Enclosure Plastic optical fiber distribution box optic splice joint closure Dome Fiber Optic Splicing Closure

Feature:

  1. For aerial,buried,wall and pipe wall people use wells
  2. Ring using a special material that can be repeatedly opened,re-use
  3. Splice tray easy to use page design
  4. Quick way to make use of open sealed maintenance easier
  5. Valve and grounding devices can be installed
  6. Advanced internal structure design
  7. Easy to re-enter, it never requires re-entry tool it

The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.

Specifications:

Size: mm  L×W×H

Cable ports



Cable Diameter

Max. Capacity

Core capacity per tray

 210×470



5



 φ38×1

Bunchy:144

Ribbon:432

Bunch:24-144(cores)

Ribbon:up to 432(cores)



Main Component

No.

Name of components

Quantity

Usage

Remarks

1

FOSC(cover)

1 set

Protecting fiber cable splices in whole

Internal diameter:355*150(mm)

2

Fiber optic



splice tray(FOST)

Max 4 trays (bunchy)

Fixing heat shrinkable protective

sleeve and holding fibers

Suitable for:
Bunchy:24(cores)

3

Fiber holding tray

1 pcs

Holding fibers with protective

coat



4

Base

1 set

Fixing internal and external structure



5

Plastic hoop

1 set

Fixing between FOSC cover and base



6

Seal fitting

1 set

Sealing between FOSC cover and FOSC bottom
