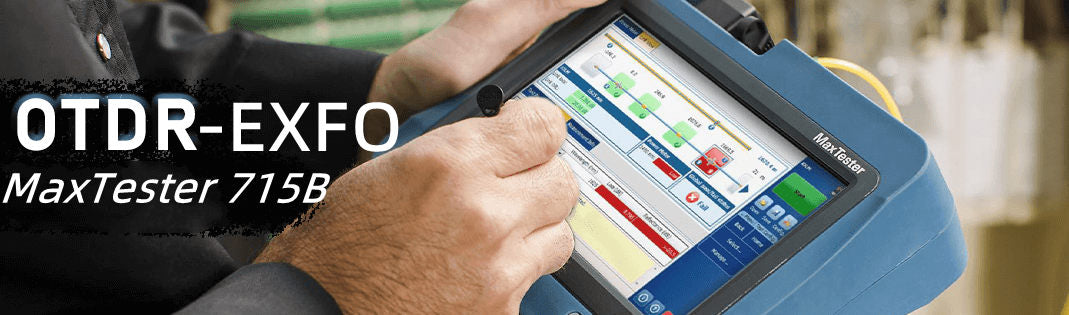

The MaxTester 715B (MAX-715B) is one of the first tablet-inspired OTDR within the 700B series. The MaxTester 715B OTDR is optimized for the point-to-point testing and troubleshooting of FTTx architectures and is ideal for testing short fibers.
KEY FEATURES:
* Handy, lightweight, powerful, tablet-inspired design
* 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
* 8-12-hour autonomy
* 9-Dead zones: EDZ 1 m, ADZ 4 m
* 10-Dynamic range of 30/28 dB
* 11-Rugged design built for outside plant
* iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
APPLICATIONS:
FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing
Specification
|
TECHNICAL SPECIFICATIONS |
MAXTESTER 715B |
|
Display |
Two USB 2.0 ports |
|
Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
|
Batteries |
Rechargeable lithium-polymer battery |
|
Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
|
Wavelength |
1310/1550nm |
|
Dynamic range |
30/28dB |
|
Event dead zone |
1m |
|
Attenuation dead zone |
4m |
|
Distance range |
0.1 to 160 km |
|
Pulse width |
5 ns to 20 us |
|
Linearity |
±0.05dB |
|
Loss threshold |
0.01dB |
|
Loss resolution |
0.001dB |
|
Sampling resolution |
0.04 to 5m |
|
Sampling points |
Up to 256 000 |
THE ENTRY-LEVEL SOLUTION DESIGNED FOR ALL YOUR TESTING NEEDS
Other models available:
- MaxTester 720C LAN/WAN access OTDR—optimized for multimode and singlemode access network installation and maintenance
- MaxTester 730C PON/Metro OTDR—optimized for FTTx/MDU and short metro fiber deployments and troubleshooting
Packaging & Delivery
Selling Units:
Single item
Single package size:
42X20X36 cm
Single gross weight:
7.000 kg
Package Type:
Black Soft Bag and then carton box.
