How to Choose a Fusion Splicer for FTTH Projects

Introduction

The global fiber-to-the-home (FTTH) market is expanding at an unprecedented pace. According to the IDATE FTTx World Observatory, global FTTH/B connections surpassed 1.2 billion in 2024, with Asia-Pacific, Europe, and North America driving aggressive last-mile deployment. At the heart of every successful FTTH rollout is a single, mission-critical tool: the fusion splicer.

Choosing the wrong fusion splicer doesn't just slow down your project — it compromises splice quality, increases signal loss, and drives up long-term maintenance costs. This guide provides a structured, engineering-grade framework for selecting the right fusion splicer for FTTH deployments of any scale.

What Is a Fusion Splicer and Why Does It Matter for FTTH?

A fusion splicer is a precision instrument that permanently joins two optical fibers by applying an electric arc to melt and fuse the fiber ends together. In FTTH projects, where fiber runs directly into residential and commercial premises, splice quality directly determines:

• Insertion loss (typically required to be ≤0.02 dB for single-mode fiber)
• Return loss (≥60 dB for high-performance networks)
• Long-term network reliability and reduced truck-roll frequency

Unlike backbone or metro fiber deployments, FTTH work involves high splice volumes, diverse installation environments (aerial, underground, indoor MDU), and often less experienced field technicians — making the choice of splicer even more consequential.

Key Technical Specifications to Evaluate

1. Splice Loss Performance

The most fundamental metric. Look for:

• Typical splice loss: ≤0.02 dB (SM G.652.D), ≤0.04 dB (MM 50/125 µm)
• Maximum splice loss: ≤0.1 dB under field conditions
• Core alignment method: Core-to-core alignment (also called "active core alignment" or "profile alignment system / PAS") is superior to cladding alignment for FTTH single-mode work

Pro Tip: Cladding-aligned splicers are lower cost but produce higher average splice loss. For FTTH passive optical networks (PON), where optical budgets are tight (typically 28–32 dB for XGS-PON), core alignment is strongly recommended.

2. Alignment Technology

Alignment Type	Typical Splice Loss	Best For
Fixed V-groove (cladding)	0.05–0.10 dB	Multimode, low-budget projects
Active cladding alignment	0.02–0.05 dB	General FTTH
Core alignment (PAS/LID)	≤0.02 dB	XGS-PON, NG-PON2, high-density FTTH

Leading manufacturers offering core alignment technology include Fujikura, Sumitomo Electric, INNO Instrument, Furukawa/OFS, and DVP.

3. Splice and Heat Shrink Cycle Time

In high-volume FTTH deployments, cycle time directly impacts labor cost and project timelines.

• Splice time: Look for ≤7 seconds (top-tier models achieve 5–6 seconds)
• Heat shrink time: ≤15 seconds with integrated heater
• Total cycle time: ≤25 seconds per splice is the industry benchmark for productive FTTH work

A crew completing 100 splices per day saves over 30 minutes per day with a 5-second splicer vs. a 9-second model — compounding significantly across a multi-month FTTH rollout.

4. Battery Life and Field Autonomy

FTTH work frequently occurs in locations without power access — aerial bucket trucks, underground vaults, and customer premises. Evaluate:

• Splices per charge: ≥200 splices/charge (premium models offer 300+)
• Battery type: Lithium-ion with field-replaceable capability
• Operating temperature: -10°C to +50°C minimum for outdoor deployment
• Charging options: USB-C or vehicle charging support is increasingly important

5. Fiber Compatibility

FTTH networks increasingly use specialty fiber types. Confirm compatibility with:

• ITU-T G.652.D (standard SMF — universal requirement)
• ITU-T G.657.A1/A2 (bend-insensitive fiber — critical for indoor FTTH drops)
• ITU-T G.651.1 (50/125 µm multimode — for MDU/enterprise hybrid networks)
• Ribbon fiber (if deploying mass-fusion for high-density MDU or central office work)

G.657.A2 fiber with an 8.6 mm bend radius is now the dominant choice for indoor FTTH drop cables. Ensure your splicer's fiber holders and V-grooves are optimized for this fiber type.

Environmental and Durability Considerations

FTTH deployment environments are unforgiving. Your splicer must withstand:

• IP rating: IP52 minimum; IP54 or higher preferred for outdoor/aerial work
• Drop resistance: MIL-STD-810G compliance or equivalent (1-meter drop test)
• Wind resistance: Stable arc performance in winds up to 15 m/s
• Altitude: Automatic arc calibration for high-altitude deployments (>3,000 m)
• Humidity: Operation up to 95% RH non-condensing

Splicers with automatic arc calibration (also called "arc check" or "stabilization mode") are essential for field teams working across varied geographic and climatic conditions.

Software, Connectivity, and Data Management

Modern FTTH projects demand digital documentation and quality assurance workflows. Evaluate:

• On-board splice storage: ≥10,000 splice records with loss data and fiber images
• Connectivity: Bluetooth, Wi-Fi, or USB for data export
• Software ecosystem: Cloud-based splice management platforms enable real-time QA and remote diagnostics
• Firmware updates: OTA (over-the-air) update capability extends product lifecycle
• OTDR integration: Some advanced splicers offer integrated or companion OTDR modules for end-to-end testing without additional equipment

Splicer Categories and FTTH Use Cases

Entry-Level / High-Volume Cladding Alignment Splicers

Best for: Large-scale aerial or underground FTTH feeder cable work where fiber type is consistent and loss budgets are moderate.
Representative models: COMWAY A33, JETFIBER H5

Mid-Range Core Alignment Splicers

Best for: Standard FTTH drop and distribution work; balanced performance and cost.
Representative models: Fujikura 62S+, Sumitomo T402S, TEKCN TC-400,COMWAY C6S.

Premium Core Alignment Splicers

Best for: High-density MDU, XGS-PON/NG-PON2 deployments, specialty fiber, and contractors requiring maximum throughput and data management.

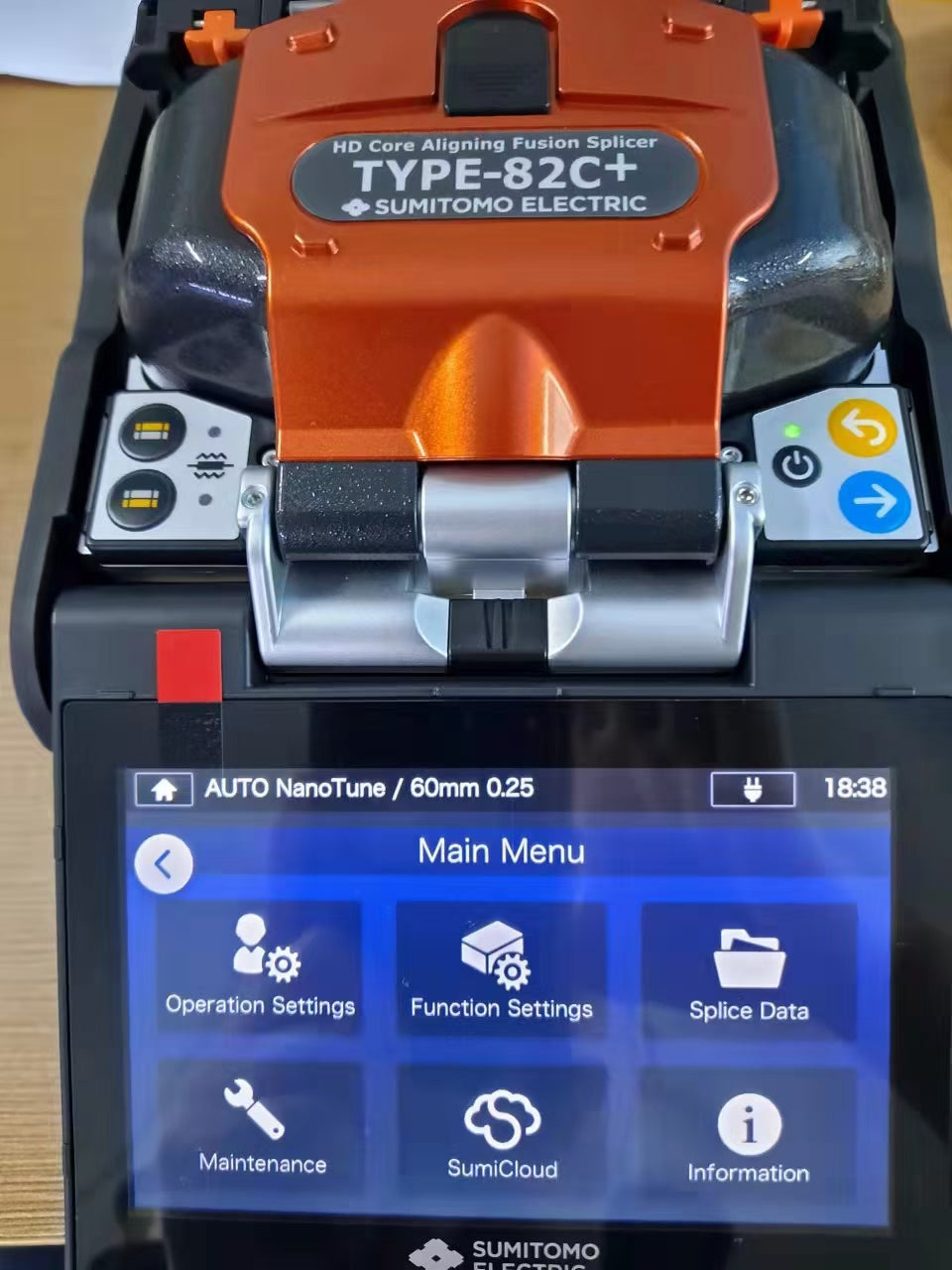

Representative models:COMWAY C10S, Sumitomo TYPE-82C+, Furukawa S179

Ribbon/Mass Fusion Splicers

Best for: Central office, high-density MDU riser cable, and ribbon fiber FTTH architectures.
Representative models: Fujikura 88R+, COMWAY C10R,Sumitomo TYPE-82M

Total Cost of Ownership (TCO) Analysis

Purchase price is only one component of splicer cost. A rigorous TCO analysis for FTTH projects should include:

1. Electrode replacement: Electrodes typically last 2,000–3,000 arcs; factor in replacement cost and availability
2. V-groove cleaning and replacement: Contaminated V-grooves are the #1 cause of poor splice quality in the field
3. Calibration and service intervals: Annual factory calibration is recommended for quality-critical deployments
4. Warranty and local support: Prioritize vendors with in-country service centers and ≤5-day turnaround
5. Resale value: Premium brands (Fujikura, Sumitomo) retain 40–60% of value after 3 years

A $3,000 premium splicer with 0.02 dB average splice loss may deliver lower TCO than a $1,200 entry-level unit if it reduces re-splicing, OTDR testing time, and network troubleshooting over a 5-year deployment lifecycle.

Procurement Checklist for FTTH Project Managers

Before finalizing your splicer selection, confirm the following:

• Core alignment verified for single-mode G.652.D and G.657.A2 fiber
• Splice loss ≤0.02 dB typical, ≤0.1 dB maximum
• Total cycle time ≤25 seconds
• Battery life ≥200 splices per charge
• IP54 or higher environmental rating
• Automatic arc calibration supported
• Splice data storage and export capability
• Local service and calibration support confirmed
• Electrode and consumable supply chain verified
• Operator training and certification program available

Frequently Asked Questions

Q: What is the difference between core alignment and cladding alignment splicers?

Core alignment splicers use cameras and image processing to align the fiber cores directly, achieving lower splice loss. Cladding alignment splicers align the outer diameter of the fiber, which is faster and cheaper but less precise — particularly for G.657 bend-insensitive fiber where the core may be slightly off-center.

Q: How often should fusion splicer electrodes be replaced?

Electrodes should be replaced every 2,000–3,000 arc discharges, or when the splicer's self-diagnostic system indicates degraded arc performance. Always use OEM electrodes to maintain calibration integrity.

Q: Can one splicer handle both single-mode and multimode fiber?

Yes — most mid-range and premium splicers support both fiber types with interchangeable fiber holders. Confirm that the splicer's splice programs include optimized parameters for each fiber type.

Q: What certifications should a fusion splicer meet?

Look for CE marking (Europe), FCC (North America), and RoHS compliance as baseline. For telecom-grade deployments, IEC 61300-3-4 splice loss measurement compliance is the relevant international standard.

Conclusion

Selecting the right fusion splicer for an FTTH project is a technical and commercial decision with long-term consequences for network performance, project profitability, and customer satisfaction. The optimal choice balances splice loss performance, field durability, cycle time, fiber compatibility, and total cost of ownership — not just upfront price.

For most FTTH deployments using XGS-PON or GPON architectures, a core-alignment splicer with ≤0.02 dB typical splice loss, ≥200 splices per charge, and integrated data management represents the professional standard.
