The Fujikura 90R is the mass fusion splicer workhorse of the splicing world. As data demand continues to rise, the solution to handle the increased traffic is to increase fiber counts. As a result, fiber counts being utilized in enterprise data centers, campus, and metro networks have grown enough to make single fiber splicing too costly and timely.
High-density cabling made possible by SWR and others like it is spurring ribbon splicing activity in places that have traditionally used loose fiber. The 90R is the answer to these changes in splicing demand. With automated splice start, tube heater, wind protector, cleave tracking, and blade rotations for up to two cleavers at a time, this splicer frees up a lot of operator time for other fiber preparation steps.
New to the Fiber Fusion Splicer 90R, you can keep your splicer in the field longer with field-replaceable V-grooves. When V-grooves can no longer be cleaned after extended use, or are accidentally damaged, you can resume splicing in minutes by installing the spare set included with your 90R kit.
- Cleaver tracking and upkeep with wireless communication
- Automated wind protector, tube heater and splice operation
- User-replaceable v-grooves
- Single to 12 fiber splicing in one machine
- 200 μm and 250 μm SpiderWeb Ribbon universal fiber holders

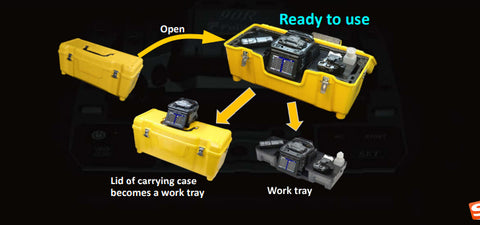

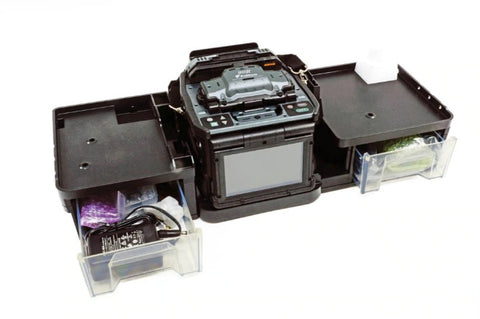

- Multi-function transit case with integrated workstation

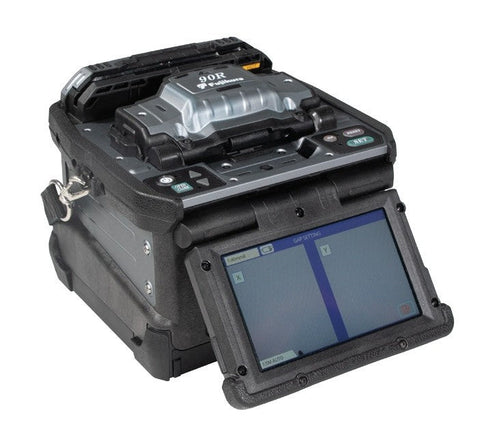

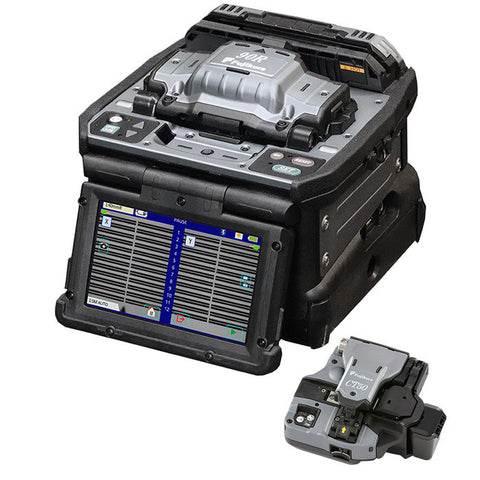

The AFL Fujikura 90R Fusion Splicer, designed for fast and precise splicing ribbon fibers (up to 12), features Bluetooth, field-replaceable V-grooves and self-cladding alignment with melting surface tension.
- Splice mode selection by fiber type
- Discharge power calibration

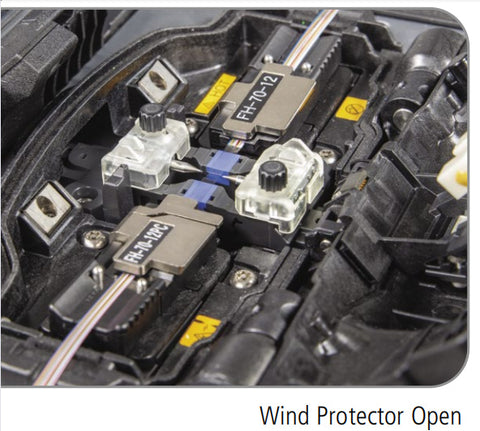

- Wind protector (open/close)
- Sheath clamp (open)
- Heater lid (open/close)
- Heater clamp (open/close).
The unit offers a 5" LCD monitor with touch screen, magnification: 20x 12-ribbon to 60x single, 100 splice, and 30 heat modes. The internal memory stores 20,000 splices and 100 images. Electrode life is 1500 splices.

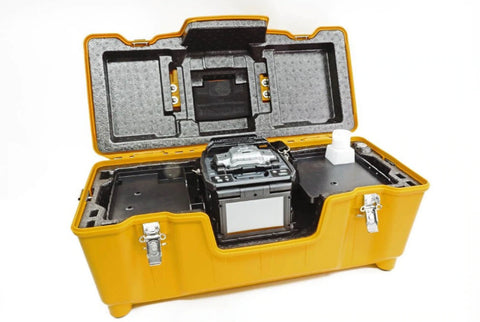

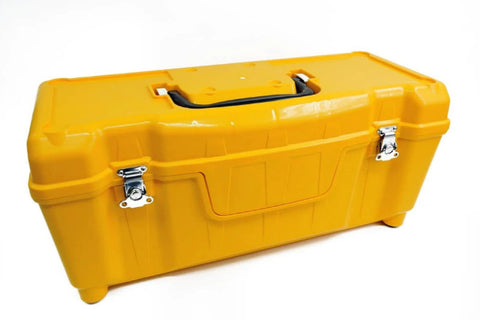

The 90R fusion splicer includes AC adapter and cord, BTR-15 li-ion battery, spare electrodes with spare 12 fiber V-groove, FH-70-12 fiber holder, USB cable, alcohol dispenser, screwdriver, carry strap, quick reference guide, 2 tripod screws, video instruction manual, work tray, SS03 single fiber stripper (3 holes) and transit case.
The model 90R is a replacement for the 70R fusion splicer.
