What is the MaxTester 720C ?

What is the MaxTester 720C

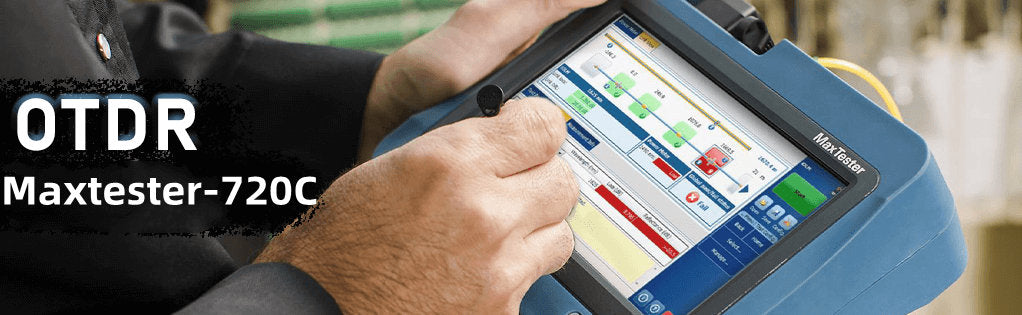

The EXFO MaxTester 720C (MAX-720C) provides first-time-right fiber characterization thanks to its short dead zones and effective dynamic range. This compact quad unit is optimized for singlemode and multimode field testing for data centers, private/enterprise networks, FTTA and fronthaul deployments.

EXFO MaxTester 720C

The EXFO MAX-720C includes a power meter, a visual fault locator, Wi-Fi connectivity and high-resolution inspection capabilities, making the unit a complete and an integrated contractor tool.

EXFO MAX-720C

The Exfo MAX-720C advantage:

Fully featured and integrated field test solution

7-inch outdoor-enhanced touchscreen and tablet-inspired versatility

Accurately pinpoint faulty connectors or fiber breaks on short spans thanks to optimized multimode performances

Best Exfo MAX-720C Price

Key Features

Access network construction and troubleshooting

Data-center tier-2 troubleshooting

Fronthaul/backhaul (FTTA, FTTT, remote radio heads, DAS and small cells)

Private/enterprise networks

LAN/WAN characterization

Central-office (CO) link certification

FTTx/PON testing though splitters (up to 1x32)

Introduction and application of MaxTester 720C

Introduction and application of MaxTester 720C

FTTx last-mile installation and troubleshooting

Short access network testing

FTTA-fi ber DAS installations

CATV/HFC network testing

Application of MaxTester 720C

Specifications

TECHNICAL SPECIFICATIONS

MAXTESTER 720C

Display

Two USB 2.0 ports
RJ-45 LAN 10/100 Mbit/s

Storage

2 GB internal memory (20 000 OTDR traces, typical)

Batteries

Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Power supply

Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum

Wavelength

1310/1550nm

Dynamic range

36/34dB

Event dead zone

1m

Attenuation dead zone

4m

Distance range

0.1 to 160 km

Pulse width

5 ns to 20 us

Linearity

±0.05dB

Loss threshold

0.01dB

Loss resolution

0.001dB

Sampling resolution

0.04 to 5m

Sampling points

Up to 256 000
