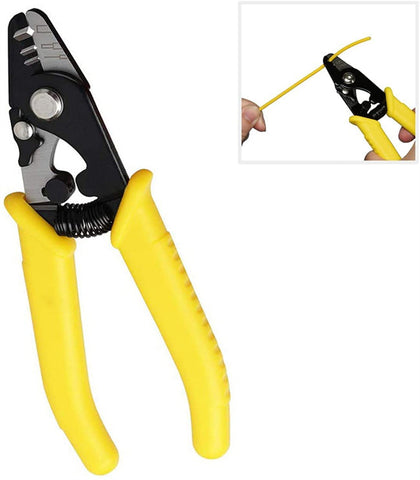

Miller Pliers are used when stripping the fiber coating.Using professional tools, it can be thinned off the plastic outer layer of the pigtail, while also stripping the coating of the fiber. It is one of the indispensable tools in the optical fiber fusion process.
It adopts a three-hole design with three apertures, large, medium and small.
The outer protective layer of 2mm-3mm optical fiber can be peeled off with large holes
The middle hole can peel off the white soft rubber protective layer of the 250um-900um fiber core
The small hole can strip the cladding of the 125um-250um fiber core.
- When stripping the coating layer of the optical fiber, there should be no impurities in the small holes of the Miller clamp. If there are impurities, they should be removed in time.
- When stripping the coating layer of the optical fiber, the Miller clamp and the optical fiber should be kept in a vertical state of about 90 degrees;
- Appropriately faster when peeling off.
- Miller Stripper need to be used in a standardized manner, and the cutting edge of the knife is prohibited.
