Sumitomo Type-82C+ Fusion Splicer – Japan’s Flagship Core Alignment Machine
The Sumitomo Type-82C+ represents the pinnacle of Japanese fusion splicing engineering. With an industry-leading 0.01dB typical splice loss for both SMF and MMF, dual fully independent automatic ovens, and a 6,000-arc electrode life, this is the machine that professional fiber engineers choose when only the best will do. Whether you’re building high-capacity backbone networks, precision data center interconnects, or demanding telecom infrastructure, the Type-82C+ delivers unmatched consistency and reliability in every splice.
Why Choose the Sumitomo Type-82C+?
- 0.01dB Industry-Leading Splice Loss: Best-in-class typical splice loss for SMF and MMF — critical for high-bandwidth, low-loss network applications
- Dual Fully Independent Automatic Ovens: Two separate heaters with flexible clamps operate simultaneously and independently, dramatically increasing throughput on high-volume splicing jobs
- 760X Zoom Magnification: Dual CMOS cameras with 380X standard view and 760X zoom for the most precise fiber inspection available in a field splicer
- 6,000-Arc Electrode Life: 3x longer than many competing models, significantly reducing electrode replacement costs and downtime
- 300 Splice Programs (74 Pre-Optimized): Comprehensive program library covering virtually every fiber type, with 226 fully user-editable programs for custom applications
- 5-Second Splice Time: Fast 5-sec splice in SM G652 Quick Mode with 9-sec heating for maximum field productivity
- G.654 CSF & EDF Support: Handles specialty fiber types including Cut-off Shifted Fiber and Erbium-Doped Fiber for advanced network applications
- Onboard Training Videos: Built-in video tutorials for operator training directly on the machine
- Wireless LAN (Optional): Wi-Fi connectivity for remote data management and software updates
- Proven Field Toughness: Operates at altitudes up to 6,000m, temperatures from -10°C to +50°C, and wind speeds up to 15m/s
Ideal Applications
- Long-haul and submarine backbone fiber network construction
- High-capacity data center interconnect and trunk cabling
- Telecom central office and exchange fiber termination
- Specialty fiber splicing (EDF, CSF, G.654)
- High-precision research and laboratory fiber applications
- Any project where splice loss and consistency are mission-critical
Type-82C+ vs. Competing Premium Splicers
| Feature | Sumitomo Type-82C+ | Typical Premium Splicer |
|---|---|---|
| Splice Loss (SMF) | 0.01dB | 0.02–0.03dB |
| Ovens | Dual independent auto | Single oven |
| Magnification (zoom) | 760X | 300–400X |
| Electrode Life | 6,000 arcs | 2,000–5,000 arcs |
| Splice Programs | 300 (74 pre-optimized) | 100–200 |
| G.654 / EDF Support | Yes | Varies |
| Max Operating Altitude | 6,000m | 3,800–5,000m |
| Onboard Training Video | Yes | Rarely |
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Types | SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), CSF (G.654), EDF |
| Fiber Diameter | Cladding: 80–150μm | Coating: 100–1,000μm |
| Cleave Length | 5–16mm (with coating clamp) |
| Splice Loss (Typical) | SMF: 0.01dB | MMF: 0.01dB | DSF: 0.03dB | NZDSF: 0.03dB |
| Return Loss | ≥60dB |
| Splice Time | 5 sec (SM G652 Quick) / 7 sec (SM G652 Std.) / 7 sec (Auto) |
| Heating Time | 9 sec (typical) |
| Battery Life | ~300 splice & heat cycles | Li-ion 10.8V, 6400mAh |
| Ovens | Dual fully independent automatic ovens with flexible clamps |
| Fiber Magnification | 380X (single axis) / 760X (zoom) / 270X (dual axis) |

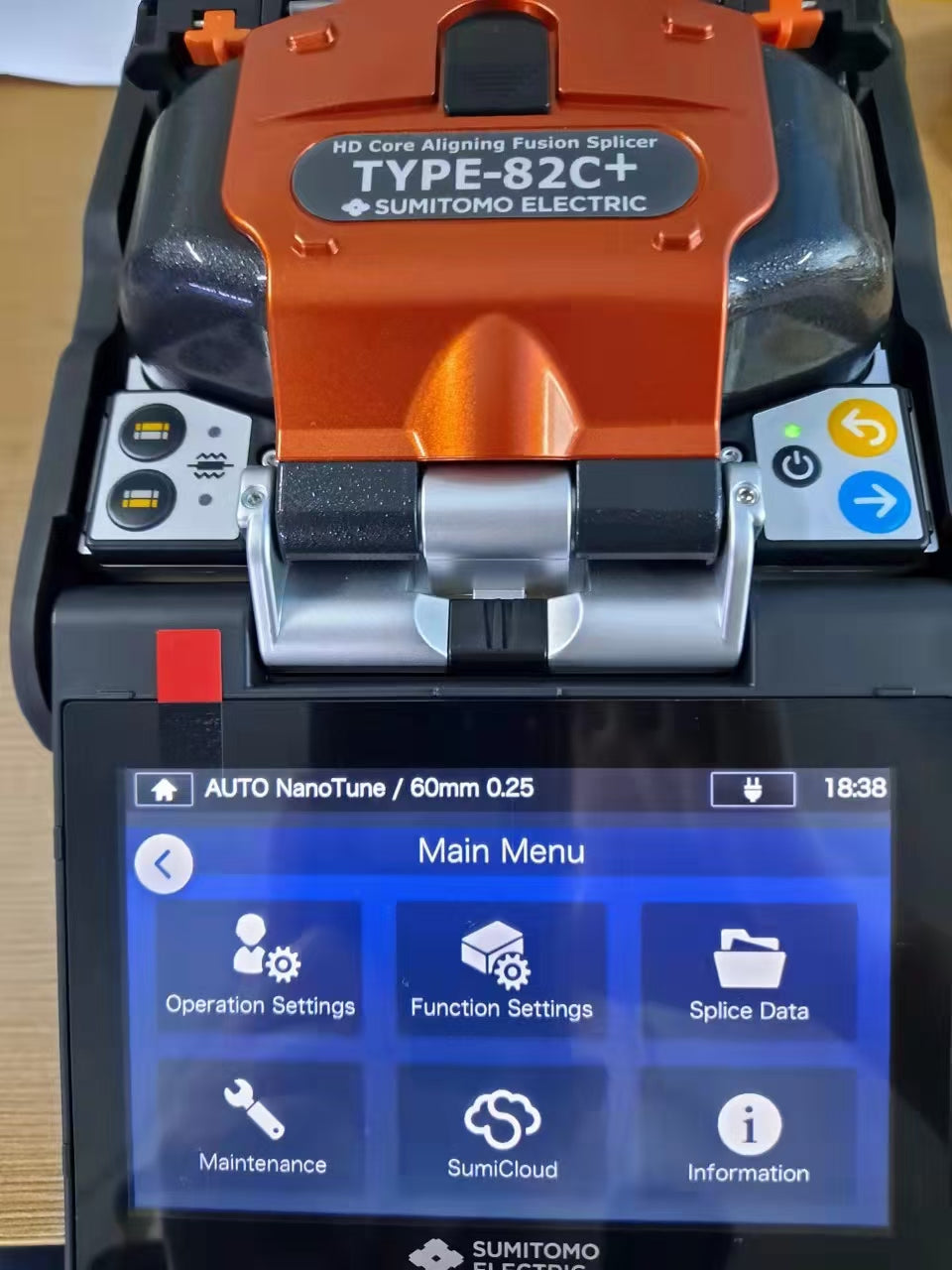

| Display | 5.0-inch touch screen color LCD |
| Splice Programs | Max. 300 (74 pre-optimized, 226 user-editable) |
| Heating Programs | Max. 100 (27 pre-optimized, 73 user-editable) |
| Data Storage | 200 images / 10,000 splices (internal) | 50,200 images / 20,000 splices (with 8GB SD) |
| Electrode Life | 6,000 arc discharges |
| Operating Conditions | 0–6,000m altitude | -10°C to +50°C | 0–95% humidity | Wind up to 15m/s |
| Dimensions & Weight | 128 × 154 × 130mm | 1.9kg (without battery) / 2.2kg (with battery) |
| Connectivity | USB 2.0 | SD/SDHC up to 32GB | Wireless LAN (optional) |
| Power Supply | AC 100–240V / DC 10–15V |
| Warranty | 1 Year |

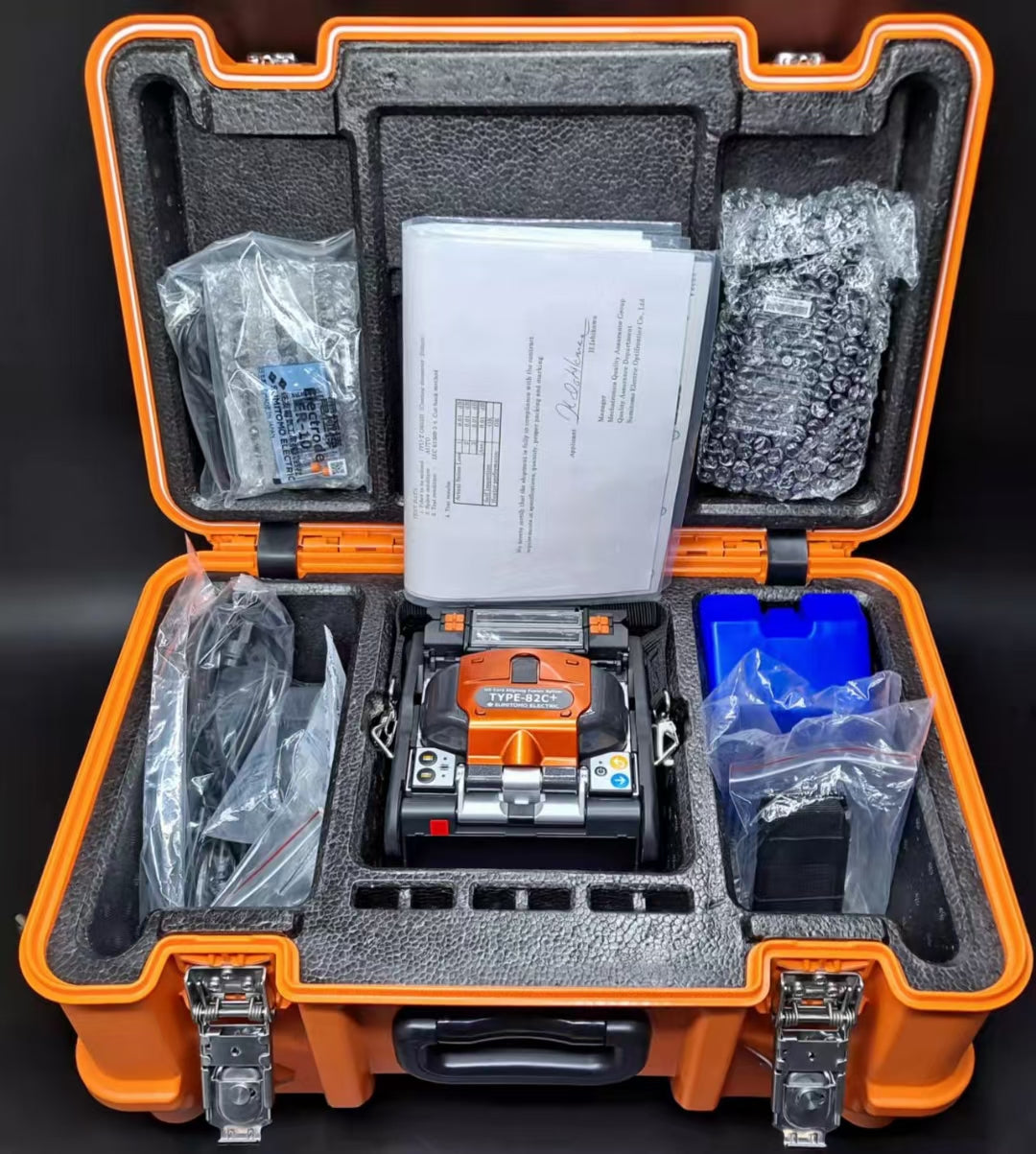

Package Contents
- Sumitomo Type-82C+ Fusion Splicer
- AC Adaptor + AC Power Cord
- Spare Electrode Set
- Cooling Tray
- Carrying Case with Integrated Worktable
- Hand Strap
- USB Cable
- Quick Reference Guide
Frequently Asked Questions
Q: What makes the Sumitomo Type-82C+ better than other premium fusion splicers?
A: The Type-82C+ stands out with its 0.01dB typical splice loss (best-in-class for SMF and MMF), dual fully independent automatic ovens for higher throughput, 760X zoom magnification, 6,000-arc electrode life, and support for specialty fibers including G.654 CSF and EDF. It also operates at altitudes up to 6,000m — higher than most competing models.
Q: What are the dual independent ovens and why do they matter?
A: The Type-82C+ features two separate heating ovens that operate fully independently and automatically. This means you can heat one splice sleeve while preparing the next fiber, significantly increasing splicing throughput on high-volume jobs compared to single-oven machines.
Q: Does the Type-82C+ support G.654 and specialty fiber types?
A: Yes. In addition to standard SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), and BIF (G.657), the Type-82C+ also supports Cut-off Shifted Fiber (CSF/G.654) and Erbium-Doped Fiber (EDF) — making it suitable for advanced submarine, amplified, and research network applications.
Q: How long do the electrodes last on the Type-82C+?
A: The Type-82C+ electrodes are rated for 6,000 arc discharges — significantly longer than the 2,000–5,000 arcs typical of competing models. This reduces replacement frequency and total cost of ownership.
Q: What warranty does the Sumitomo Type-82C+ come with?
A: The Type-82C+ comes with a 1-year manufacturer warranty. For support, bulk pricing, or enterprise inquiries, contact us at info@splicermarket.com.
