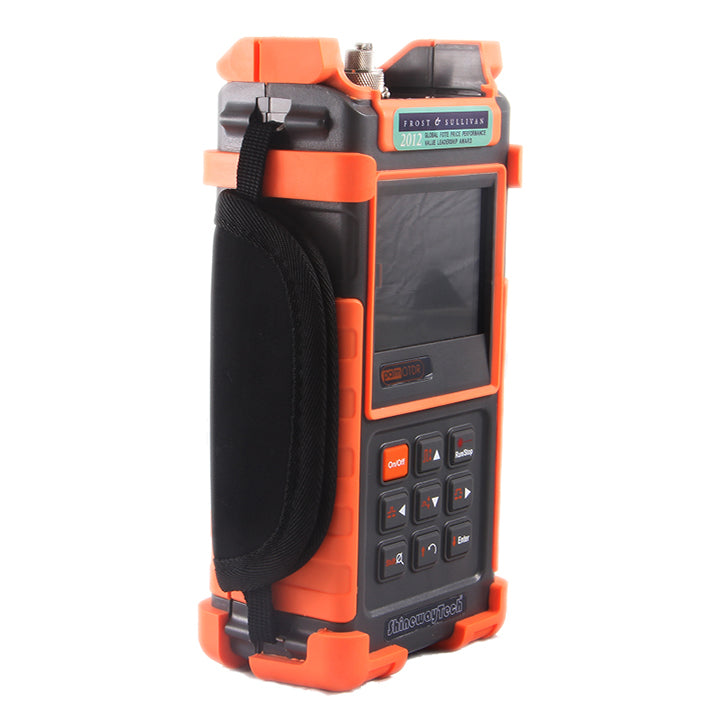

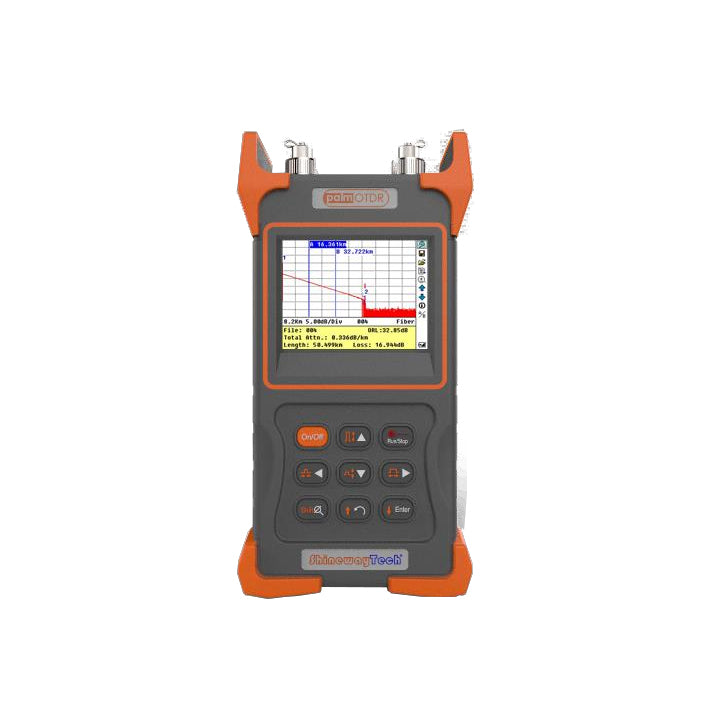

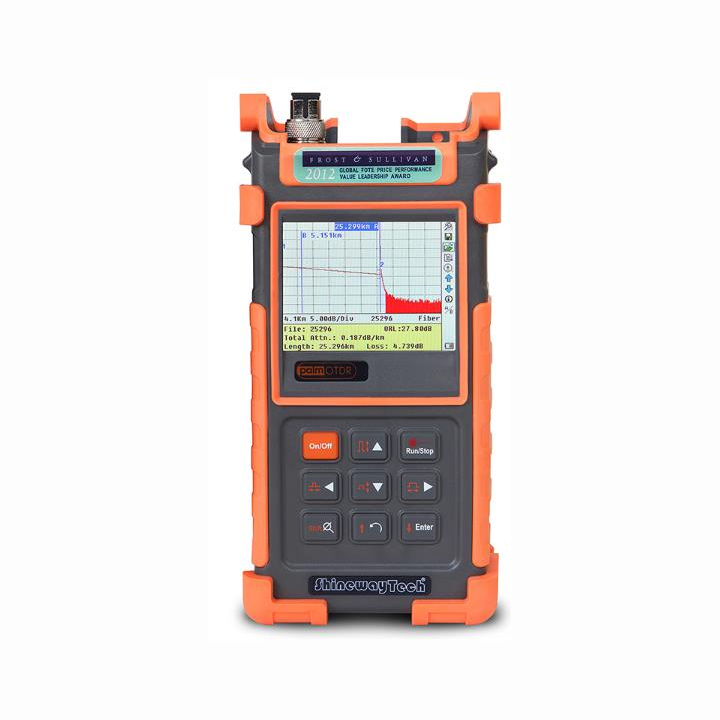

ShinewayTech Palm Handheld OTDR FTTx

Model ⁽¹⁾

Wavelength (±20nm)

Dynamic Range⁽²⁾

EDZ (m)⁽³⁾

ADZ (m)⁽³⁾

Basic

Advanced

palmOTDR-M20AE

palmOTDR-M20AE-VPSI

850/1300

21/24dB

1.5

5

palmOTDR-S20AE

palmOTDR-S20AE-VPSI

1310/1550

32/30dB

1.8

5

palmOTDR-S20BE

palmOTDR-S20BE-VPSI

1310/1550

35/34dB

1.5

5

palmOTDR-S20C/N

palmOTDR-S20C/N-VPSI

1310/1550

40/38dB

0.8

4.5

palmOTDR-S20D/N

palmOTDR-S20D/N-VPSI

1310/1550

45/43dB

0.8

4.5

palmOTDR-S20F

palmOTDR-S20F-VPSI

1310/1550

50/48dB

0.8

4.5

palmOTDR-S20C/P

palmOTDR-S20C/P-VPSI

1310/1490/1550

38/37/37dB

0.8

4.5

palmOTDR-S20C/X

palmOTDR-S20C/X-VPSI

1310/1550/1625⁽⁴⁾

38/37/37dB

0.8

4.5

palmOTDR-P11C

palmOTDR-P11C-SI

1625⁽⁴⁾

37dB

0.8

4.5

palmOTDR-P31C

palmOTDR-P31C-SI

1310/1550/1625(4)

38/37/37dB

0.8

4.5

palmOTDR-Q40A

palmOTDR-Q40A-VPSI

850/1300/1310/1550

21/24/32/30dB

1.5

4.5

Selectable Range (Km)

0.1, 0.3, 0.5, 1.3, 2.5, 5, 10@850nm; 0.1,0.3,0.5,1.3,2.5,5,10,20,40,80@1300nm;

0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 240@others

Pulse Width

10ns, 30ns, 100ns, 300ns, 1µs@850nm; 10ns, 30ns, 100ns, 300ns, 1µs, 2.5µs@1300nm; 5ns, 10ns, 30ns,100ns, 300ns, 1µs,2.5µs, 10µs, 20µs@others

Averaging Time

Quick, 15s, 30s, 1min, 2min, 3min

Distance Measure Accuracy

±(1m+5×10-5×distance+sampling space)

Attenuation Detect Accuracy

±0.05dB/dB

Reflection Detect Accuracy

±4dB

Data Storage

1000 records

Connectivity

USB

Connector

FC/PC (Interchangeable SC, ST; optional LC)

Power Supply

NiMH Battery / AC Adapter

Battery Life

8 hrs continuous operation, 20 hrs standby (on one charge); recharging time < 4 hrs

Operating Temperature

-20°C to 50°C

Storage Temperature

-40°C to 70°C

Relative Humidity

0 to 95% (non-condensing)

Weight

1kg (2.2 lbs)

Dimensions (H×W×T)

220×110×70mm (8.7×4.3×2.7 inch)

Visible Fault Locator Module⁽⁵⁾

Wavelength (±20nm)

650nm

Output Power (dBm)

≥-3

Max Measurement Range

5 Km

Stabilized Laser Source Module⁽⁵⁾

Wavelength (±20nm)

Same as OTDR working wavelength⁽⁵⁾

Output Power (dBm)

≥-7

Optical Power Meter Module⁽⁵⁾

Calibrated Wavelength (nm)

850,1300,1310,1490,1550,1625

Power Range (dBm)

-70 to +6 (-60 to +6 @ 850nm)

Detector Type

InGaAs

Display Resolution

0.01dB

Accuracy

± 5% ± 0.01nW (±0.5dB@850nm)

MOD Identification

1K, 2K Hz

PON Power Meter Module⁽⁶⁾

Calibrated Wavelength

1310nm

1490nm

1550nm

Measurement Range (dBm)

-40 to +8

(Burst mode: -30 to +8)

-40 to +8

-40 to +20

Spectral Passband (nm)

1310±40

1490±10

1550±10

Power Uncertainty (dB)

≤ 0.5

Display Resolution (dB)

0.01

Insertion Loss (dB)

≤ 1.5

Threshold

60 user-definable threshold sets

Data Storage

1200 records
