Orientek T25M Optical Power Meter and T15M-S Optical Light Source Single mode 1310/1550nm FTTH Test Tool OPM OLS
Orientek T25M Optical Power Meter and T15M-S Optical Light Source Single mode 1310/1550nm FTTH Test Tool OPM OLS
Couldn't load pickup availability
Orientek T25M Optical Power Meter and T15M-S Optical Light Source Single mode 1310/1550nm FTTH Test Tool OPM OLS
- OPM Wavelength: 850-1625nm -70~+10dBm
- OLS Wavelength: 1310/1550nm Output power:-5dB
- OPM OLS bulid in LED lighting
- Durable and reliable design
- Easy-to-use interface for er-ror-freetesting
- Rubber armor protection
Optical Poweter Specification
Wavelengths(nm) |
850/980/1300/1310/1490/1550/1625(nm) |
Measurement Range |
-70~+10dBm |
Optical Connector |
2.5mm universal interface(1.25mm LC optional) |
Power Supply |
Alkaline battery (3 AA 1.5V battery) Pacakge not include battery |
Resolution |
0.01dB |
Working Temperature |
-10~+60(°C) |
Storage Temperature |
-25~+70(°C) |
Dimensions/Weight |
160*85*45mm/220g |
Optical Light Source Specification
Wavelength(nm) |
1310/1550nm |
Typical OutputPower |
-5dB |
Optical Connector |
2.5mm universal+SC (1.25mm for LC is Optional)) |
Power Supply |
Alkaline Battery(2 AAA 1.5V batteries) Package not include battery |
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
Modulation Frequencies |
CW, 270Hz, 1KHz, 2KHz |
Dimensions / Weight |
130x65x35mm / 180g |

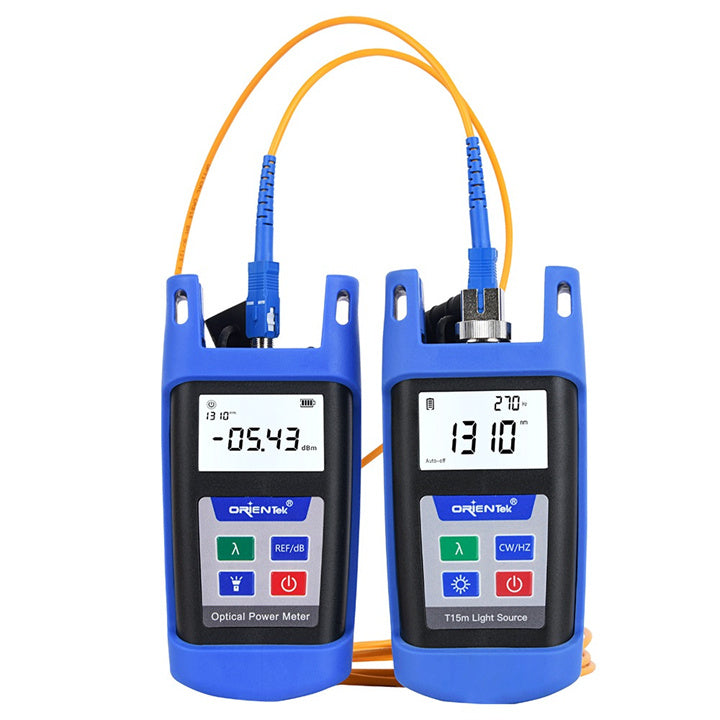

![Single mode 1310/1550nm FTTH Test Tool OPM OLS](http://www.splicermarket.com/cdn/shop/products/splicermarket-orientek-optical-power-meter.jpg?v=1640576187&width=1445)

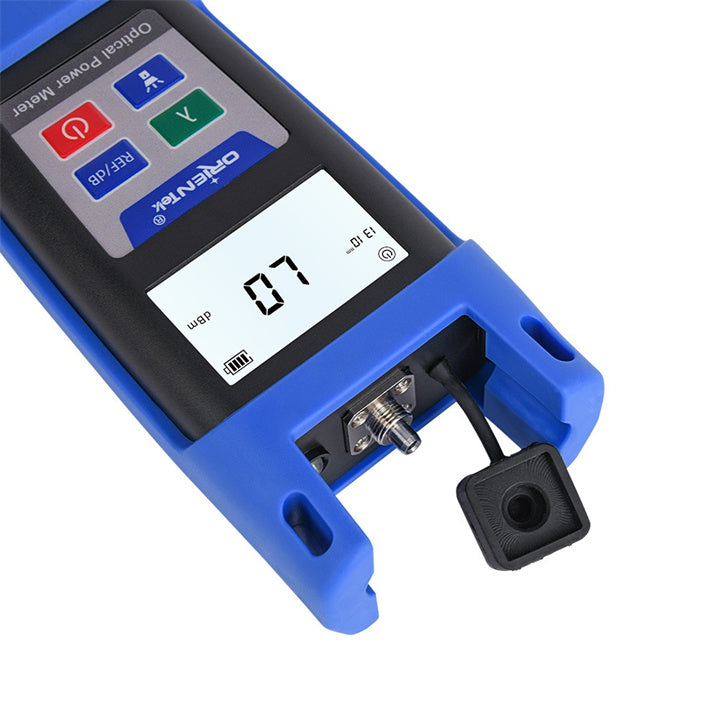

![Orientek T25M Optical Power Meter](http://www.splicermarket.com/cdn/shop/products/splicermarket-orientek-fiber-optic-power-meter.jpg?v=1640576187&width=1445)

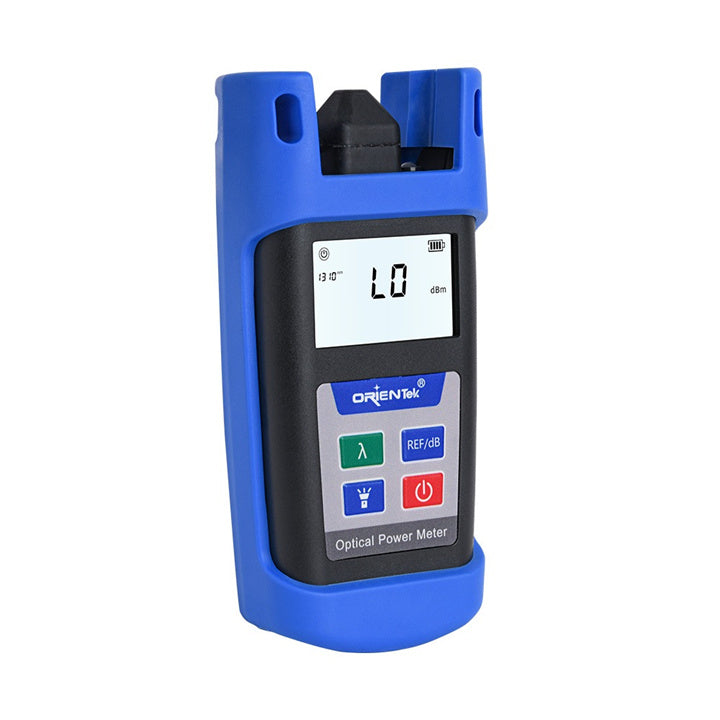

![T15M-S Optical Light Source](http://www.splicermarket.com/cdn/shop/products/splicermarket-orientek-optical-fiber-power-meter.jpg?v=1640576187&width=1445)

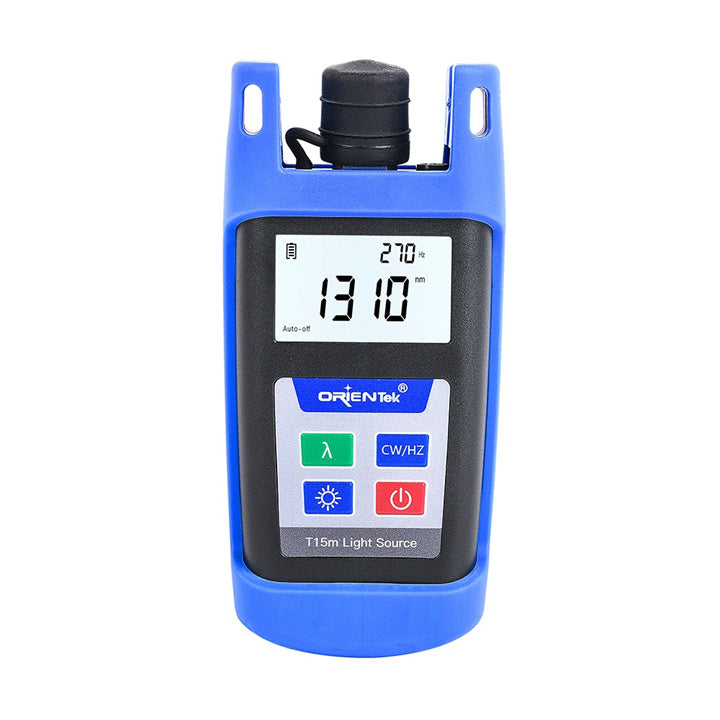

![Orientek T25M fiber power meter](http://www.splicermarket.com/cdn/shop/products/orientek-optical-power-meter.jpg?v=1637926194&width=1445)

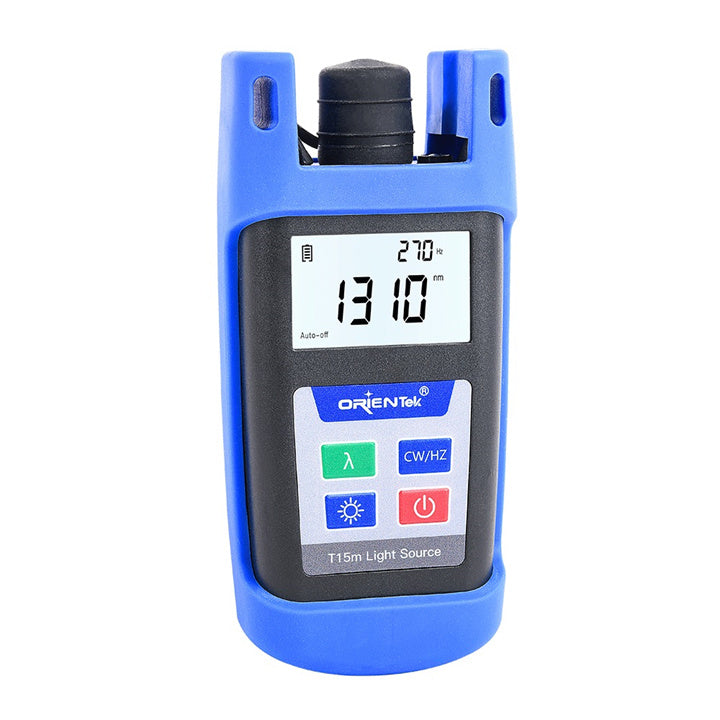

![price Orientek T25M Optical Power Meter](http://www.splicermarket.com/cdn/shop/products/splicermarket-fiber-optical-power-meter.jpg?v=1637926195&width=1445)

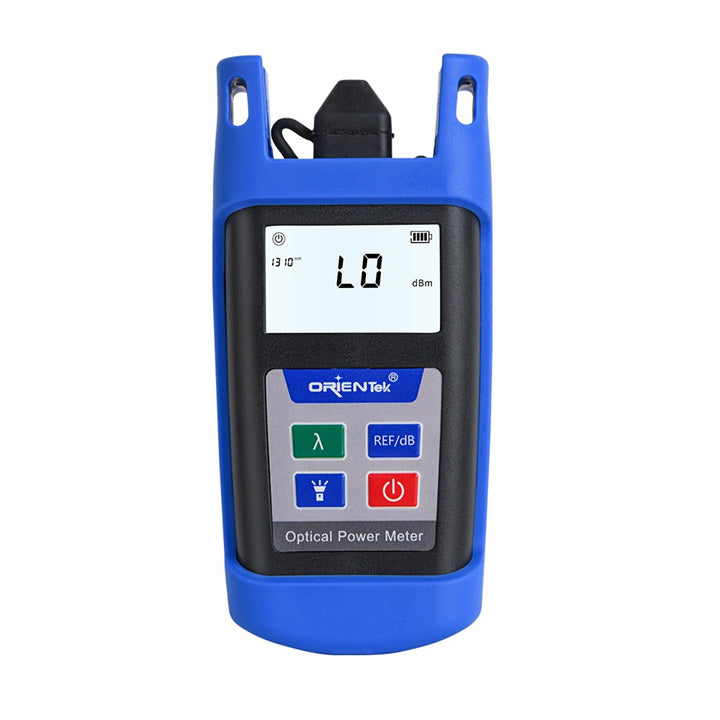

![Orientek T25M Optical Light Source](http://www.splicermarket.com/cdn/shop/products/splicermarket-optical-power-meter.jpg?v=1637926194&width=1445)
