HUAWEI 19 "inch OLT GPON OLT MA5608T 1G DC GPBD 16 Ports
HUAWEI 19 "inch OLT GPON OLT MA5608T 1G DC GPBD 16 Ports
Couldn't load pickup availability
HUAWEI 19 "inch OLT GPON OLT MA5608T 1G DC GPBD 8 Ports
Configs:

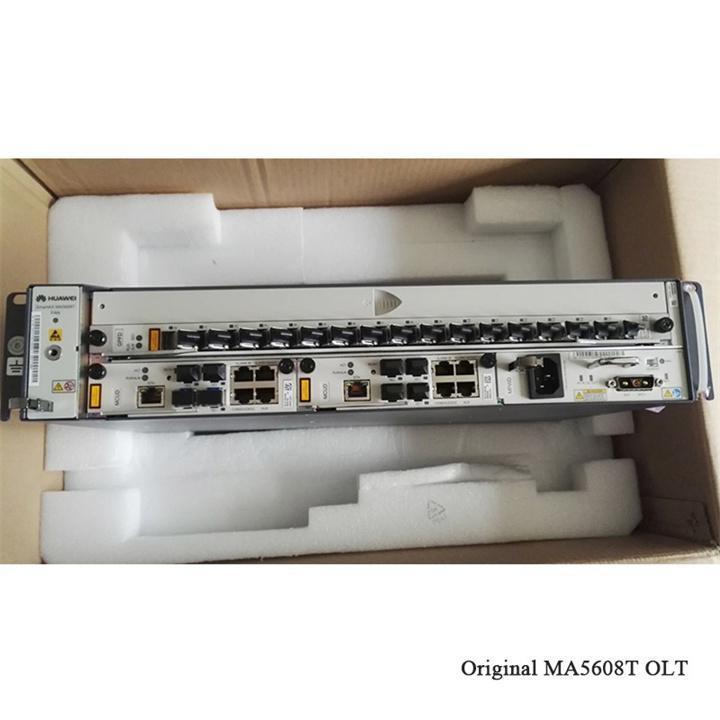

HUAWEI SMARTAX MA5608T
1*MA5608T Chassis
1*MCUD 1G Control Board
1*MPWC DC Power Optical
Other accessories ( Power cable ,earth cable , patchcords,ribbon banding ,screws etc.
MA5608T Positioning
Deployed at the remote end, including the base stations (BSs) and outdoor environments
2 U high, and supports a maximum of two service board
Connected to MxUs or ONTs and used in FTTB/C and FTTH scenarios
Connected to xDSL terminals and phones and used in the MSAN/DSLAM scenario
Boards supported by MA5608T:
|
Board Type |
Silk Screen |
Full Name |
Slot |
|
Control board |
MCUD |
Mini Control Unit Board |
2, 3 |
|
MCUD1 |
Mini Control Unit Board |
||
|
Service board |
ADPM |
64-port ADSL2+ over POTS Service Board |
0, 1 |
|
ADPE |
64-port ADSL2+ over POTS Service Board |
||
|
H805ADPD |
64-port ADSL2+ over POTS Service Board |
||
|
VDPM |
64-port VDSL2 over POTS Service Board |
||
|
VDQM |
64-port VDSL2 over ISDN Service Board |
||
|
VDPD |
64-port VDSL2 over POTS Service Board |
||
|
VDPE |
64-port VDSL2 over POTS Service Board |
||
|
H805GPBD |
8-port GPON OLT Interface Board |
||
|
GPFD |
16-port GPON OLT Interface Board |
||
|
GPBH |
8-port GPON OLT Interface Board |
||
|
XGBC |
4-port 10G GPON OLT Interface Board |
||
|
H802EDTB |
16 port SHDSL and 16 port E1 Service Board |
||
|
ASPB |
64-port VOIP Subscriber Board |
||
|
CVME |
48-port VDSL2&POTS Combo Board |
||
|
CAME |
48-port ADSL2+&POTS Combo Board |
||
|
SPUB |
MPLS service Process Unit Board |
||
|
ETHB |
Ethernet Service Access Board |
||
|
OPGD |
48-port GE/FE Optical Interface Board |
||
|
TOPA |
TDM Traffic over PSN Board |
||
|
SHLM |
16-port SHDSL.bis Service Board |
||
|
Power board |
MPWC |
Double DC power board |
4 |
Warranty : 1 year.
