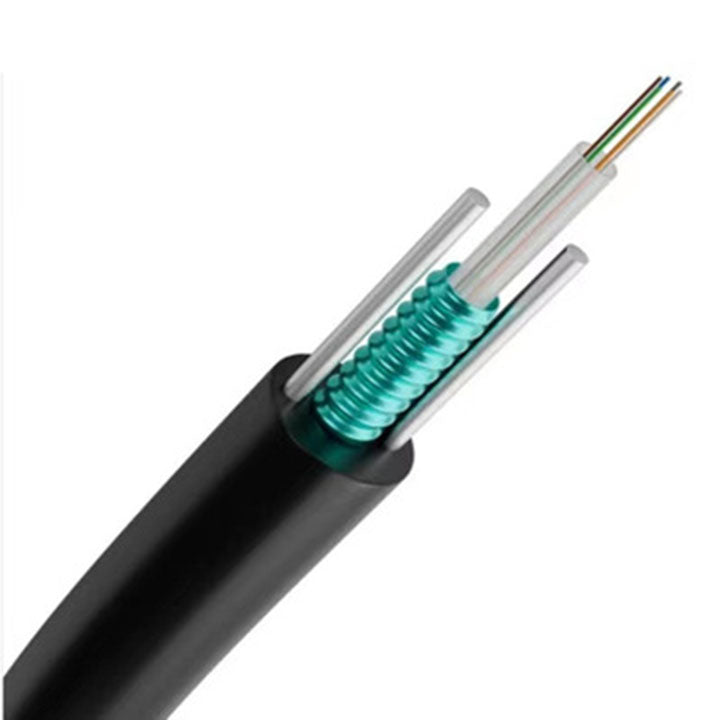

High quality GYXTW single mode outdoor armored Fiber optical cable
| Technical Parameters: | ||||||
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static/ Dynamic | ||||
| N | N/100mm | mm | ||||
| GYXS/GYXTW-2~12 | 2~12 | 10 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GY XTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GY XTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| Description: | ||||||
| The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath. | ||||||
| Characteristics: | ||||||
| · Good mechanical and temperature performance | ||||||
| · High strength loose tube that is hydrolysis resistant | ||||||
| · Special tube filling compound ensure a critical protection of fiber | ||||||
| · Crush resistance and flexibility | ||||||
| · PSP enhancing moisture-proof | ||||||
| · Two parallel steel wires ensure tensile strength | ||||||
| · Small diameter, light weight and friendly installation | ||||||
| · Long delivery length | ||||||
| Standards: | ||||||
| GYXTW cable complies with Standard YD/T 769-2003. | ||||||
| Storage/Operating Temperature : -40℃ to + 70℃ | ||||||
