EXFO MAX-715D-SM1 OTDR — Last-Mile Fiber Testing Redefined

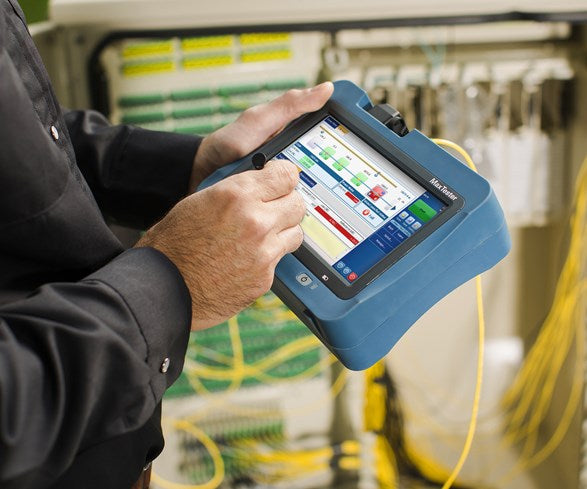

The EXFO MaxTester MAX-715D-SM1 is a professional-grade, handheld OTDR engineered for FTTx last-mile installation, FTTA fiber-DAS deployments, and CATV/HFC network troubleshooting. With a 32 dB dynamic range, 0.9 m event dead zone, and 12-hour battery life, it delivers right-first-time results in the most demanding outside-plant environments.

Key Specifications

• Wavelengths: 1310/1550nm SM1 single-mode configuration
• Dynamic Range: Up to 32 dB
• Event Dead Zone (EDZ): 0.9 m
• Attenuation Dead Zone (ADZ): 3.6 m
• Battery Life: 12 hours continuous operation

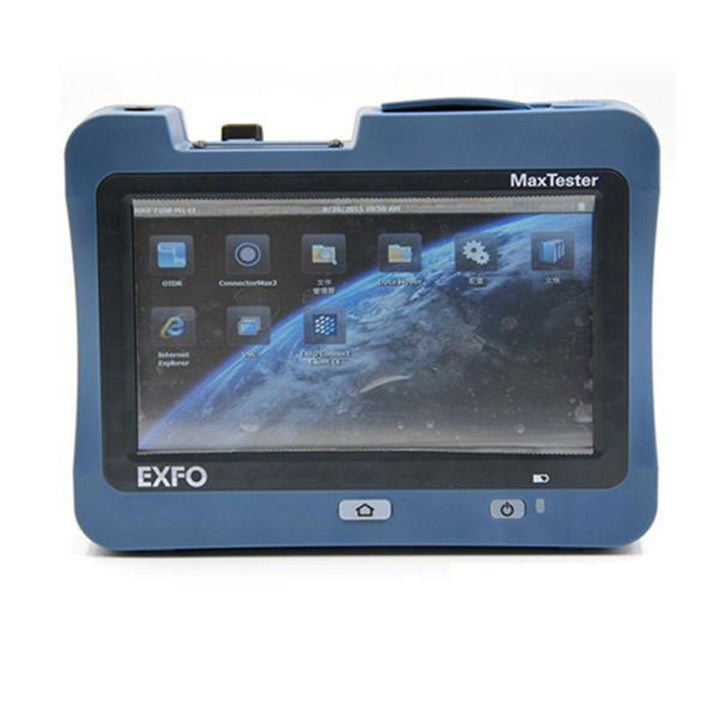

• Display: 7-inch outdoor-enhanced touchscreen (largest in handheld class)
• Connector: Swap-Out design — field-replaceable without service center
• Software: iOLM (intelligent Optical Link Mapper), onboard PDF reporting（Options）
• Warranty: 1 year

Applications

• FTTx last-mile installation and troubleshooting
• Short access-network testing
• FTTA fiber-DAS installations
• CATV/HFC network testing

Why Choose the MAX-715D-SM1 otdr?

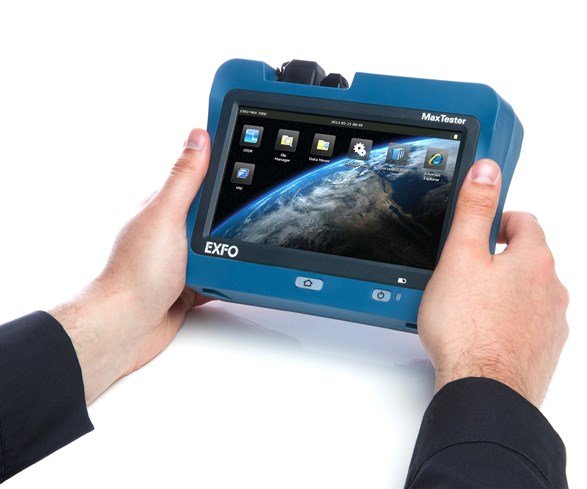

The MaxTester 700D Series builds on EXFO's proven tablet-inspired platform. The intuitive Windows-like GUI ensures a fast learning curve, while the OTDR 2 environment delivers icon-based functions, instant boot-up, automatic macrobend detection, and improved auto/real-time modes. Plug-and-play hardware options — VFL, power meter, USB tools — make every technician's job easier in the field.

SWAP-OUT Connector Technology

The MAX-715D-SM1 features EXFO's exclusive Swap-Out connector — field-replaceable without returning the unit to a service center. An onboard connector health checker diagnoses port condition so you replace only when necessary, keeping your calibration plan on track and minimizing downtime.

Connector Options

Select your preferred fiber connector type at checkout:

• APC/SC — Angled Physical Contact, SC interface
• APC/FC — Angled Physical Contact, FC interface
• UPC/SC — Ultra Physical Contact, SC interface
• UPC/FC — Ultra Physical Contact, FC interface

Frequently Asked Questions

Q: What connector types are compatible with the MAX-715D-SM1 otdr?
A: The MAX-715D-SM1 uses EXFO's Swap-Out connector system. Available options include APC/SC, APC/FC, UPC/SC, and UPC/FC — select your preferred type when ordering.

Q: Can I replace the connector in the field?
A: Yes. The Swap-Out design allows field replacement without sending the unit to a service center, and your calibration date remains valid after swapping.

Q: Is the MAX-715D-SM1 suitable for PON/FTTx testing?
A: Absolutely. It is purpose-built for FTTx last-mile and short access-network testing, with iOLM providing one-touch pass/fail results on complex fiber links.

Q: What is the difference between APC and UPC connectors?
A: APC (Angled Physical Contact) connectors have an 8° angled end-face that reduces back-reflection, making them ideal for high-speed and long-haul networks. UPC (Ultra Physical Contact) connectors have a flat end-face with a lower return loss than standard PC, suitable for most standard fiber networks.

Q: Does the MAX-715D-SM1 include reporting software?
A: Yes. Industry-leading onboard PDF reporting and post-processing are included for all users but it's options need pay extra cost.
