COMWAY

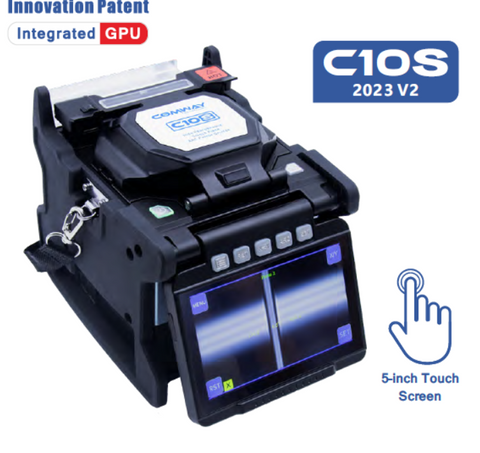

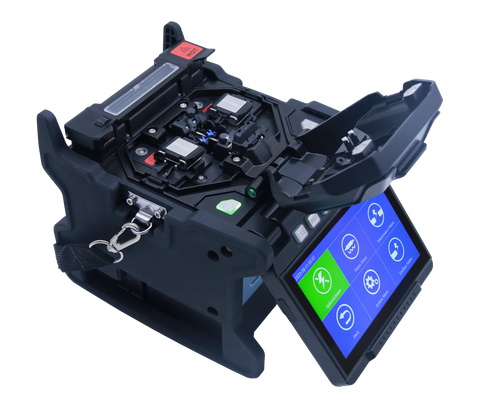

COMWAY C10S 2023 V2 Fusion Splicer & splicing machine

COMWAY C10S 2023 V2 Fusion Splicer & splicing machine

1 total reviews

Regular price $4,500.00
Regular price $4,800.00 Sale price $4,500.00
Sale Sold out
Shipping calculated at checkout.
Best COMWAY C10S 2023 v2 Fiber Fusion Splicer & Splicing Machine Price Onlline Store

COMWAY FUSION SPLICER C10S

  • Born for 5G Construction: Supports Splicing of Fiber G.654E
  • Multi-Function: Fiber Endface Melter & Fusion Splicer
  • Professional Backbone Machine: 6 Motors Core Alignment
  • Ultra High Precision: 750X Single Axis View (Zoom Up),with touch screen
  • More Efficiency: 5sec. Splicing Time, 8sec. Heating Time
  • Durable Design: Waterproof, Dust-Proof, Anti-Shock
  • Anti-Theft & Security: Remote Locker & GPS (Option)

Specifications

Size & Weight D170 x W135 x H149(mm); 2.0kg (2.5kg with battery)
Fiber Alignment 6 Motors Core Alignment
Fiber Type SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice Mode Single fiber
Fiber Diameter Cladding dia. 80~150μm; Coating dia. 100~3000μm
Cleave Length 250μm cladding dia. 8~16mm; Over 250μm cladding dia. 16mm
Splicing Programs Max. 200
Splicing Time 5 Sec. [SM Fast] program; 10 Sec. [SM G652] program
Heating Programs Max. 30
Heating Time Adjustable, 8 Sec. with micro sleeves 12 Sec. with slim 60mm and 40mm sleeves
Splice Progector 10~60mm
Splice Image Capture Max. 800
Splice Data Storage Max. 20000
Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB
Regurn Loss 60dB
Loss Estimation Yes
Operation Condition Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10~+50ºC; Wind velocity: up to 15m/s
Storage Condition Humidity: 0~95%; Temperature: -40~+80ºC (battery -20~+40ºC)
Tension 1.96~2.25N
Screen 5 inch touch screen
Fiber Magnification X/Y: 750X(Zoom Up); X&Y: 300X
Port High speed USB
Electrode life 5000 ARC discharges
Power supply AC100-240V, 50/60Hz
Battery Parameters 8400mAh high capacity battery, over 350 circles splicing and heating




ID Electrode, only the origin electrode is adaptive to the fusion splicer, guarantees the splicing quality and the machine's performance.

Fiber Optic Fusion Splicer Machine COMWAY C10S

Package Includes:

  1. Fusion Splicer C10S 2023 V2
  2. User Guide
  3. Stripper
  4. Extra Electrodes
  5. High Precision Cleaver CC03
  6. Carrying Case
  7. High Capacity Battery
  8. AC Adapter
  9. Cooling Tray
  10. USB Cable
  11. DC Charging Cable
  12. AC Adapter Cable
  13. Hand Strap
  14. Shoulder Strap
  15. Alcohol Bottle

View full details
