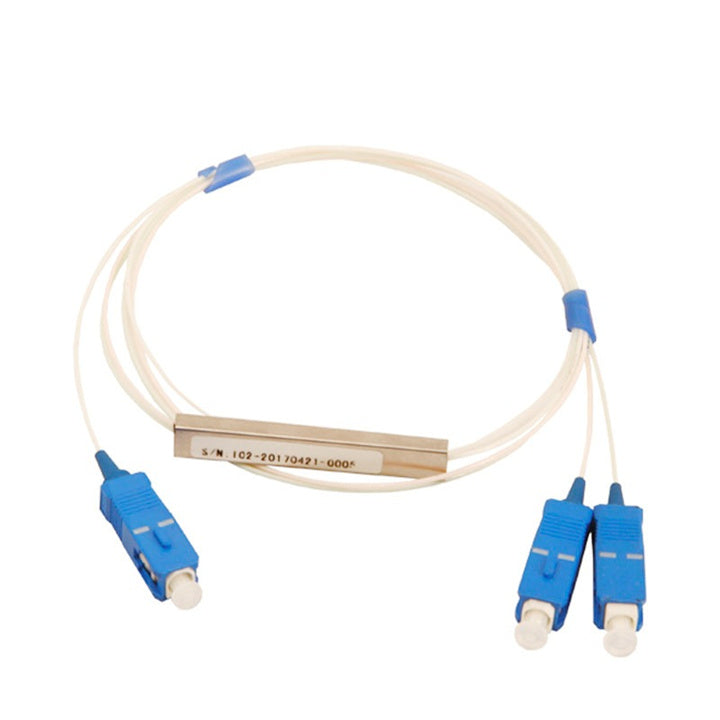

0.9mm Steel Tube Fiber Optic PLC Splitter 1x2 Mini Blockless 1*2 SC/UPC Connector Fiber Splitter

0.9mm Steel Tube Fiber Optic PLC Splitter 1x2 Mini Blockless 1*2 SC/UPC Connector Fiber Splitter

Regular price $36.00
Regular price Sale price $36.00
Sale Sold out
Shipping calculated at checkout.

0.9mm Steel Tube Fiber Optic PLC Splitter 1x2 Mini Blockless 1*2 SC/UPC Connector Fiber Splitter

Features

*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

SC/UPC Connector Fiber Splitter For Sale
Specification

11xN (with connector)

(Number   of Channels)

1×2

1×4

1×8

1×16

1×32

1×64

2×2

2×4

2×8

2×16

2×32

2×64

(Operating   Wavelenth)

1260 to 1650

P   Level Insertion Loss

4

7.4

10.5

13.7

17

20.3

4.4

7.6

10.8

14.1

17.4

20.7

S   Level Insertion Loss

4.2

7.6

10.7

14

17.3

20.7

4.6

7.9

11.2

15

18.1

21.7

(Uniformity)

0.4

0.6

0.8

1

1.2

1.6

0.8

1

1.2

1.5

1.8

2

(PDL)

0.2

0.3

0.3

0.3

0.3

0.5

0.3

0.3

0.3

0.3

0.3

0.5

(Return   Loss)

more than 55

(Directivity)

more than 55

(Type   of fiber)

ITU   G657A

(Operating   temperature)

-40 to 85

(Pigtail   length)

1m or 1.5m   or customized


Ordering Information

PLCS
Port Type

Cable Type

Fiber Length

Connector Type

Package Style

PLC Splitter

1*4

1*8

1*16

1*32

1*64

2*32

Others Specify

0.25mm Bare fiber

Ribbon Fiber

Fan-out with 0.9mm Loose Tube

2.0mm Cable

3.0mm Cable

1 meter

1.5 meter

specify

FC/APC

FC/PC

SC/APC

SC/PC

ST/UPC

LC/APC

Others Specify

Stainless steel sleeve

Plastic Module

19 1U Rack Mount

Others Specify



Warranty : This is a consumable without warranty.

If you need big quantity or
any question please do not hesitate contact us email jack@splicermarket.com .
