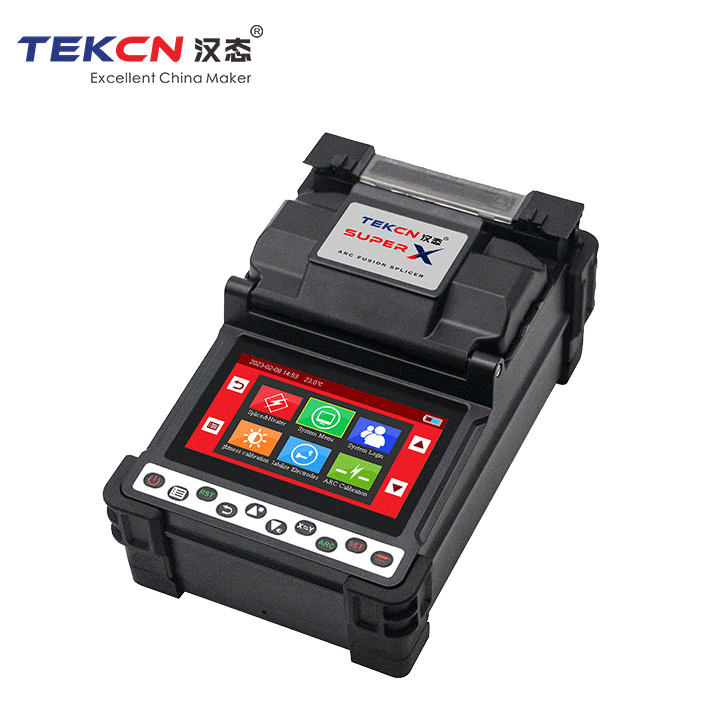

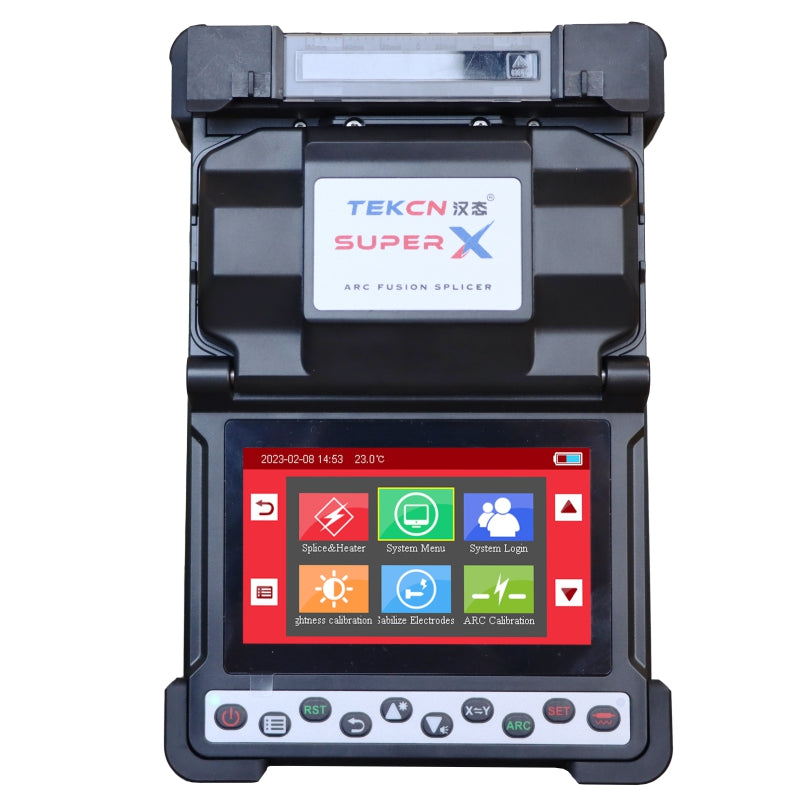

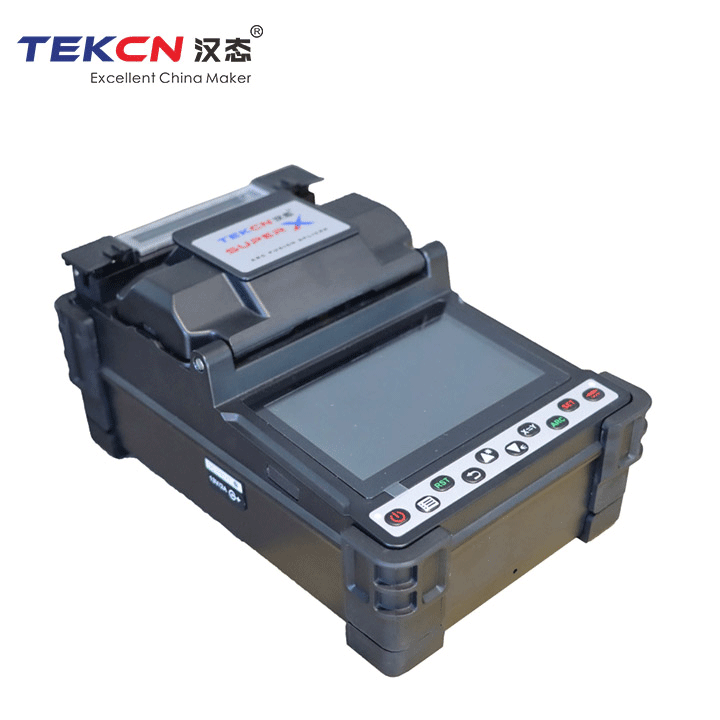

TEKCN Super X Fusion Splicer – Award-Winning FTTx Performance, Built for Any Environment
The TEKCN Super X is not just another FTTx splicer — it’s the machine that made history as the first Chinese brand to win China Telecom’s bid for core alignment, 5G fiber (G.654), and ribbon fiber fusion splicers. That’s not a marketing claim; it’s a verified government procurement achievement that speaks to the Super X’s real-world reliability and performance. With its innovative Double V-Groove design, 3-in-1 multifunctional fiber holder, and proven operation from -20°C to 50°C at altitudes up to 5,000m, the Super X is engineered to perform where others fail.
Why Choose the TEKCN Super X?
- China Telecom 5G Bid Winner: First Chinese brand to win real core-to-core, 5G fiber (G.654), and ribbon fiber fusion splicer procurement bids from China Telecom — validated by the world’s largest telecom operator
- Exclusive Double V-Groove Design: Unique dual V-groove system ensures reliable fiber alignment even if the fiber isn’t perfectly seated — no special skill or experience required, making it ideal for new technicians
- 3-in-1 Multifunctional Fiber Holder: One holder compatible with bare fiber, drop cable, jumper/patch cord, and pigtail — eliminating the need to swap holders between different fiber types on the job
- 4-Motor PAS Alignment: Four-motor Profile Alignment System delivers consistent 0.02dB SM splice loss across all standard fiber types
- Extreme Environment Tested: Verified operation at altitudes up to 5,000m and temperatures as low as -20°C (storage to -40°C) — tested in real high-altitude and low-temperature field conditions
- Auto Fiber Identification: Automatically identifies fiber types (SM/MM/NZ/DS/BI) and selects optimal splicing parameters
- ID Electrode Anti-Counterfeit: QR-coded original electrodes with 5,000+ discharge life ensure authentic ARC performance and protect against fake electrodes
- Mini Handheld Design: Compact 1.1kg body with button + touchscreen dual operation for fast, intuitive use in any workspace
- Designed for FTTx & CATV: Optimized for last-mile fiber deployment with 7-second splice and 15-second heat times
Ideal Applications
- FTTH / FTTx last-mile fiber deployment
- CATV network fiber installation and maintenance
- High-altitude fiber projects (up to 5,000m)
- Cold-climate fiber deployment (-20°C operating)
- Mixed-fiber projects requiring a single versatile fiber holder
- Teams with varying technician skill levels (beginner-friendly double V-groove)
TEKCN Super X vs. COMWAY C6S – FTTx Splicer Comparison
| Feature | TEKCN Super X | COMWAY C6S |
|---|---|---|
| Alignment Method | 4-Motor PAS | PAS (High Precision) |
| Double V-Groove | Yes (exclusive) | No |
| 3-in-1 Fiber Holder | Yes | No |
| Auto Fiber ID | Yes | No |
| Min. Operating Temp | -20°C | -10°C |
| Max. Altitude | 5,000m | 5,000m |
| Splice Loss (SM) | 0.02dB | 0.02dB |
| Splice Time | 7 sec | 5 sec |
| Battery | 4000mAh (~240 cycles) | 5600mAh (~350 cycles) |
| Weight | 1.1kg | 2.0kg |
| China Telecom Certified | Yes | No |
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Alignment | 4-Motor PAS (Profile Alignment System) |
| Fiber Types | SM (G.652), MM (G.651), DS (G.653), NZ/NZDS (G.655), BI (G.657) |
| Fiber Holder | 3-in-1: bare fiber, drop cable, jumper/patch cord, pigtail |
| Cladding Diameter | 80–150μm |
| Coating Diameter | 100–1,000μm |
| Cleave Length | 8–16mm |
| Splice Loss | SM: 0.02dB | MM: 0.01dB | DS: 0.04dB | NZ/NZDS: 0.04dB | BI: 0.02dB |
| Return Loss | >60dB |
| Splice Time | 7 sec (SM Fast) |
| Heating Time | 15 sec |
| Splice Programs | 100 modes (user-definable) |
| Heating Programs | 20 modes (user-definable) |
| Fiber Magnification | 130X dual-axis simultaneous | 300X single-axis (X or Y) |
| Display | 4.3-inch 480×272 touchscreen |
| Data Storage | Max. 10,000 splice records | Max. 300 images (auto loop) |
| Battery | 4000mAh, 240+ splice & heat cycles | 3-hour full charge (80% in 2 hours) |
| Electrode Life | ≥5,000 discharges (ID anti-counterfeit QR code) |
| Operating Conditions | -20°C to +50°C | 0–95% humidity | 0–5,000m altitude | Wind up to 15m/s |
| Storage Conditions | -40°C to +80°C | Battery: -10°C to +40°C |
| Dimensions & Weight | 208 × 137 × 102mm | 1.1kg (1.36kg with battery) |
| Protection | Waterproof, Dustproof, Windproof, Anti-shock |
| Warranty | 1 Year |
Frequently Asked Questions
Q: What is the Double V-Groove design and why does it matter?
A: The TEKCN Super X features an exclusive Double V-Groove system that guides and holds the fiber in place even if it’s not perfectly positioned at the bottom of the groove. This means technicians can splice reliably without needing extensive training or experience — making it ideal for large FTTx rollouts with mixed-skill teams.
Q: What does the 3-in-1 fiber holder support?
A: The Super X’s multifunctional 3-in-1 fiber holder is compatible with bare fiber, drop cable, jumper/patch cord, and pigtail — all in one holder. This eliminates the need to carry and swap multiple holders on the job, saving time and reducing the risk of losing accessories in the field.
Q: What does it mean that TEKCN won China Telecom’s 5G bid?
A: China Telecom is the world’s largest telecom operator and runs one of the most rigorous equipment procurement processes in the industry. TEKCN becoming the first Chinese brand to win bids for core alignment, 5G fiber (G.654), and ribbon fiber splicers from China Telecom is a significant validation of the Super X’s real-world performance and reliability.
Q: How does the Super X perform in extreme environments?
A: The Super X has been tested and verified at altitudes up to 5,000m and temperatures as low as -20°C (operating) and -40°C (storage). It is also rated waterproof, dustproof, windproof, and anti-shock for reliable performance in harsh outdoor field conditions.
Q: What warranty does the TEKCN Super X come with?
A: The Super X comes with a 1-year manufacturer warranty. For support or bulk pricing, contact us at info@splicermarket.com.
