High Precision 30dB Handheld SM OTDR TC-110
High Precision 30dB Handheld SM OTDR TC-110
Couldn't load pickup availability
TEKCN TC-110 Handheld 1310/1550nm 30/28dB
High Precision SM OTDR
Product Description
TC-110 handheld OTDR is a high precision instrument for measuring optical fiber.
The product appearance is ergonomically designed. It's with 1310/1550nm wavelength and 30/28dB dynamic range, it's with high precision and long measurament distance.
Features
• Compact, lightweight, Portable 3.5inch LCD touch screen
• Dynamic range up to 30dB in single mode
• Testing distance up to 100 km at 1550nm
• Event editing function
• TF&SD data interface, USD data output
• 8 hours battery life with full charged
• VFL function
| Technical Specifications: | |
|
Type |
Index |
|
Dynamic Range |
30/28 dB |
|
Wavelength ( ± 20 nm) |
1310/1550 |
|
Optical interface |
FC/UPC or SC/UPC |
|
Display screen |
3.5-inch TFT LCD touch screen |
|
Pulse width |
5, 10, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480, and Auto |
|
Distance range (km) |
0.3, 1, 3, 5, 10, 30, 60, and 120 |
|
Measurement time |
15s, 30s, 1 min, 2 min, and 3 min |
|
Event dead zone |
1.2 m |
|
Attenuation dead zone |
8 m |
|
Data storage capacity |
SD card (4 GB) > 10000 test curves |
|
Data interface |
SD card interface |
|
Communication interface |
Communication interface |
|
Visible light |
Wavelength |
650 nm |
|
Output power (dBm) |
N -3 |
|
|
Test distance (km) |
3 |
|
|
Communication ight detection |
Available |
|

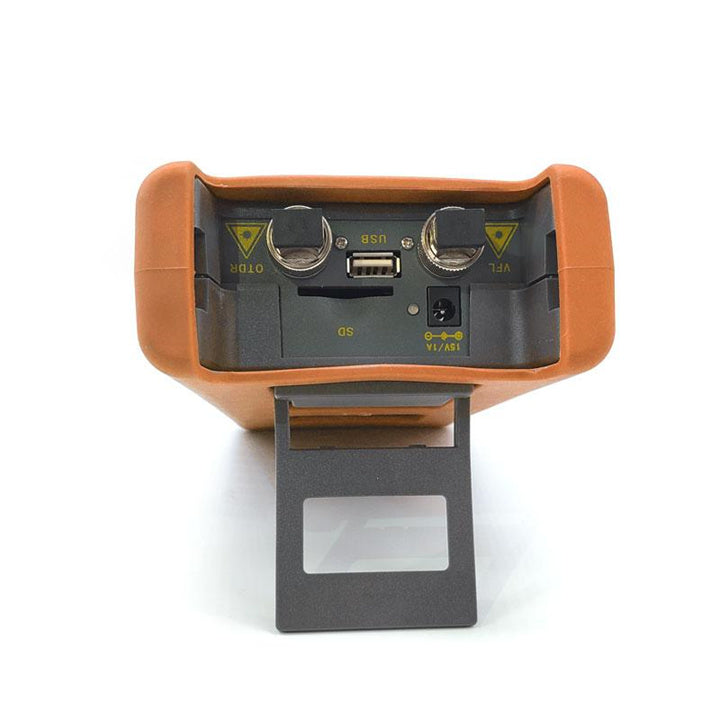

❶ Power adapter interface
❷ Charging indicator
❸ SD card interface
❹ Optical interface OTDR
❺ USB interface
❻ Optical interface VLS Q Warning symbol
Application:
The OTDR Is widely used for installation, troubleshooting, reconstruction, and maintenance of the optical cables and fibers used in various communication systems such as metropolitan area network (MAN), wide area network (WAN), and CATV.
