COMWAY

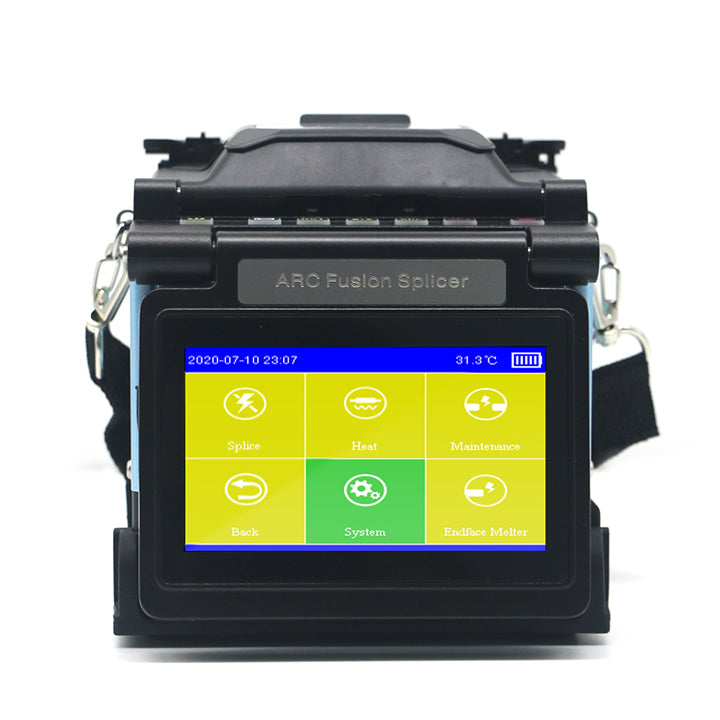

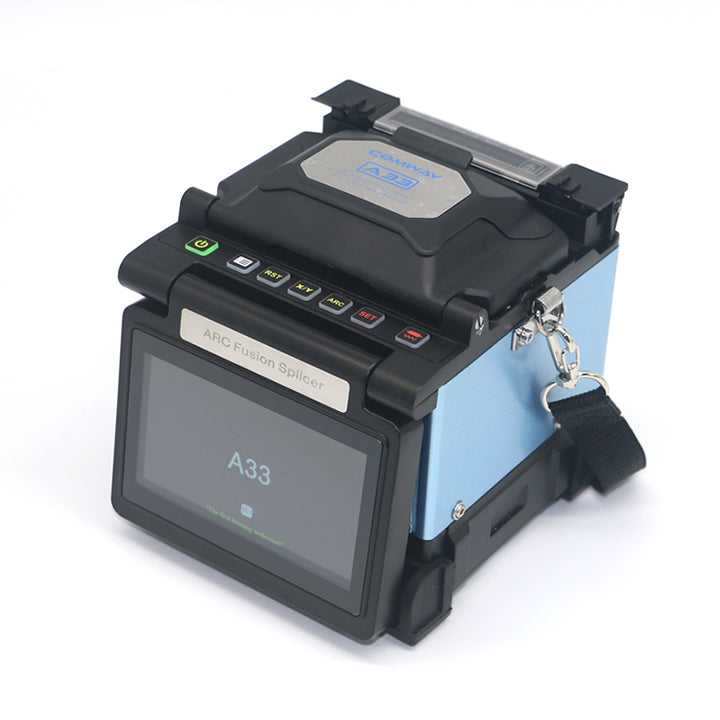

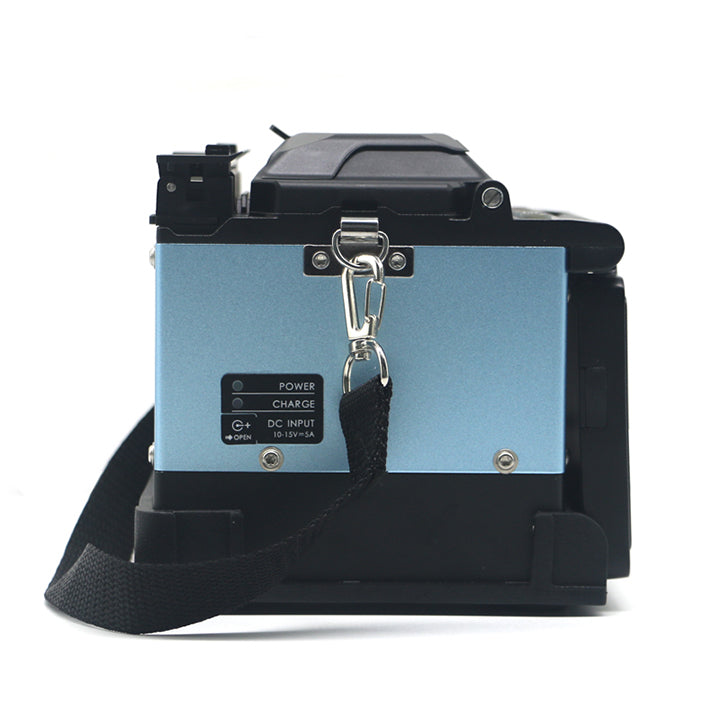

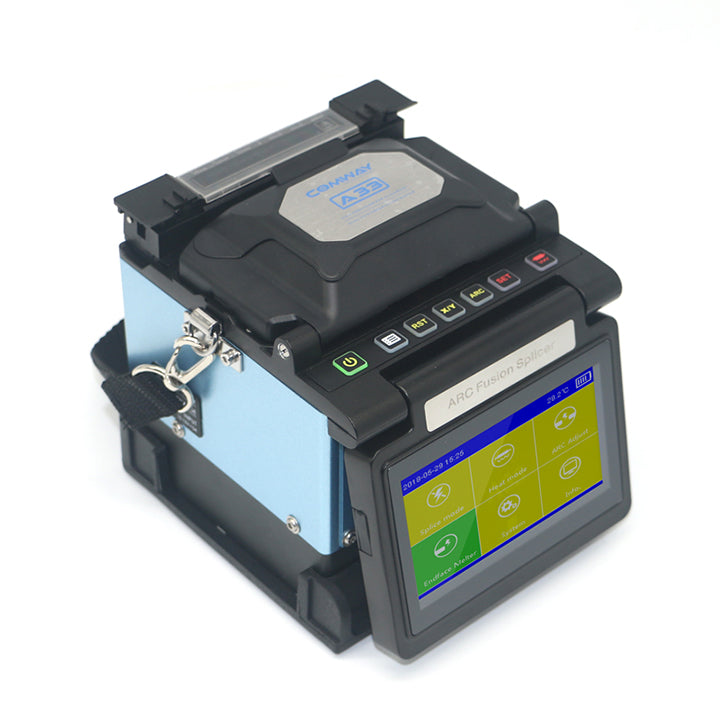

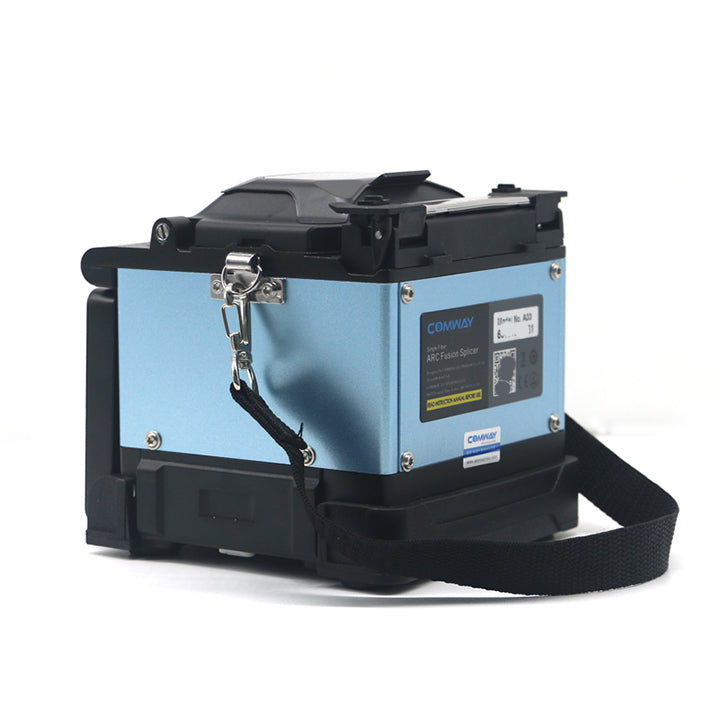

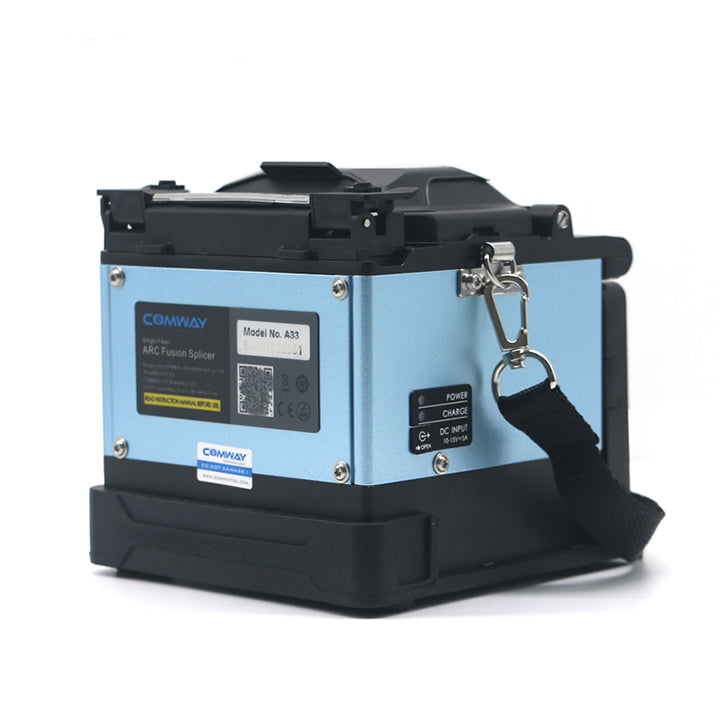

COMWAY A33 FTTh Mini Fusion Splicer

COMWAY A33 FTTh Mini Fusion Splicer

$1,500.00
$1,800.00 $1,500.00
Sale Sold out
Shipping calculated at checkout.

Splicing Machine COMWAY A33 - 4 Motors Core Alignment Fusion SplicerBest Splicing Machine COMWAY A33

COMWAY FUSION SPLICER A33

  • Multi-Function: Fiber Endface Melter & Fusion Splicer
  • Portable Perfect for FTTh Project: 1.5kg Light Weight Design
  • More Efficiency: 5sec. Splicing Time, 15sec. Heating Time
  • Durable Design: Waterproof, Dust-Proof, Anti-Shock
  • High Sensitivity 4.3inch Touchscreen

Specifications

Size & Weight D136 x W141 x H136(mm); 1.5kg (1.8kg with battery)
Fiber Alignment High precision PAS alignment
Fiber Type SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice Mode Single fiber
Fiber Diameter Cladding dia. 80~150μm; Coating dia. 100~3000μm
Cleave Length 250μm cladding dia. 8~16mm; Over 250μm cladding dia. 16mm
Splicing Programs Max. 100
Splicing Time 5 Sec. [SM Fast] program; 12 Sec. [SM G652] program
Heating Programs Max. 30
Heating Time Adjustable, 8 Sec. with micro sleeves 12 Sec. with slim 60mm and 40mm sleeves
Splice Progector 10~60mm
Splice Image Capture Max. 800
Splice Data Storage Max. 20000
Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB
Splice Image Capture Max. 300, Automatic cycle storage
Regurn Loss 60dB
Loss Estimation Yes
Operation Condition Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10~+50ºC; Wind velocity: up to 15m/s
Storage Condition Humidity: 0~95%; Temperature: -40~+80ºC (battery -20~+40ºC)
Tension 2N
Screen 4.3 inch high resolution touch screen
Fiber Magnification X/Y: 500X(Zoom Up); X&Y: 300X
Port High speed USB
Electrode life 5000 ARC discharges
Power supply AC100-240V, 50/60Hz
Battery Parameters 4000mAh high capacity battery, over 240 circles splicing and heating



ID Electrode, only the origin electrode is adaptive to the fusion splicer, guarantees the splicing quality and the machine's performance.

Splicing Machine COMWAY A33

Package Includes:

  1. Fusion Splicer A33
  2. Quick Start Guide
  3. Stripper
  4. Drop Cable Stripper
  5. High Precision Cleaver C108
  6. Carrying Case
  7. High Capacity Battery
  8. AC Adapter
  9. Extra Electrodes
  10. Cooling Tray
  11. AC Adapter Cable
  12. Hand Strap
  13. Alcohol Bottle
