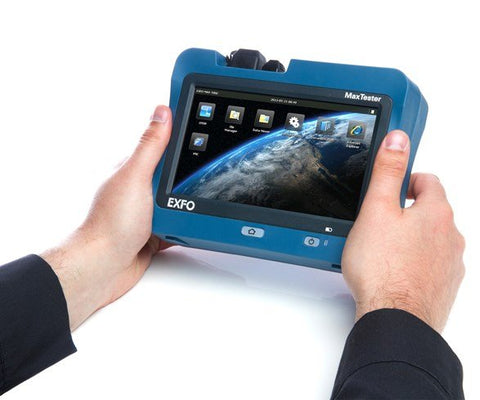

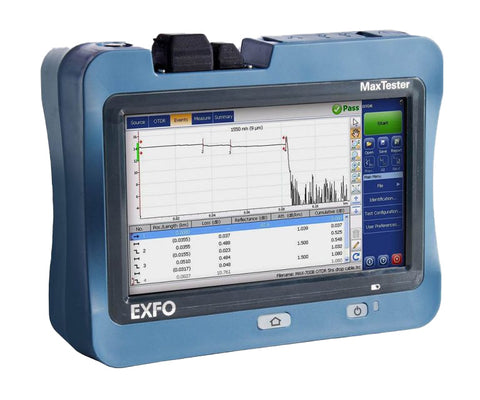

The MaxTester 715B (MAX-715B) is one of the first tablet-inspired OTDR within the 700B series. The MaxTester 715B OTDR is optimized for the point-to-point testing and troubleshooting of FTTx architectures and is ideal for testing short fibers.
![EXFO MaxTester 715B OTDR - Splicermarket.com](https://cdn.shopifycdn.net/s/files/1/0609/4304/0761/files/exfo-maxtester-715b_480x480.jpg?v=1652681181)
KEY FEATURES:
* Handy, lightweight, powerful, tablet-inspired design
* 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
* 8-12-hour autonomy
* 9-Dead zones: EDZ 1 m, ADZ 4 m
* 10-Dynamic range of 30/28 dB
* 11-Rugged design built for outside plant
* iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
![EXFO MaxTester 715B OTDR Machine - Splicermarket.com](https://cdn.shopifycdn.net/s/files/1/0609/4304/0761/files/Exfo-maxtester-715b-otdr_480x480.jpg?v=1652681371)
APPLICATIONS:

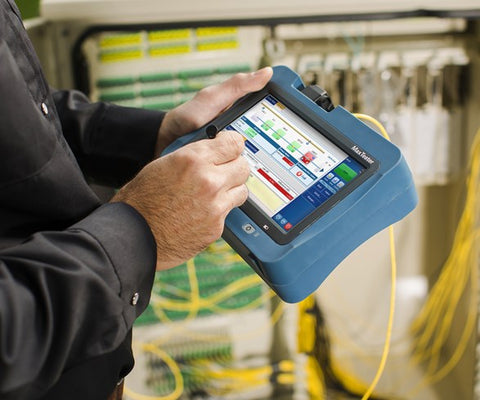

FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing
![Best EXFO MaxTester 715B OTDR Machine - Splicermarket.com](https://cdn.shopifycdn.net/s/files/1/0609/4304/0761/files/best-EXFO-715b-MaxTester_480x480.jpg?v=1652681416)
Specification
TECHNICAL SPECIFICATIONS |
MAXTESTER 715B |
Display |
Two USB 2.0 ports |
Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
Batteries |
Rechargeable lithium-polymer battery |
Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
Wavelength |
1310/1550nm |
Dynamic range |
30/28dB |
Event dead zone |
1m |
Attenuation dead zone |
4m |
Distance range |
0.1 to 160 km |
Pulse width |
5 ns to 20 us |
Linearity |
±0.05dB |
Loss threshold |
0.01dB |
Loss resolution |
0.001dB |
Sampling resolution |
0.04 to 5m |
Sampling points |
Up to 256 000 |
![Exfo otdr MAXTESTER 715B For Sale - Splicermarket.com](https://cdn.shopifycdn.net/s/files/1/0609/4304/0761/files/EXFO-MaxTester-715b-price_480x480.jpg?v=1652681482)

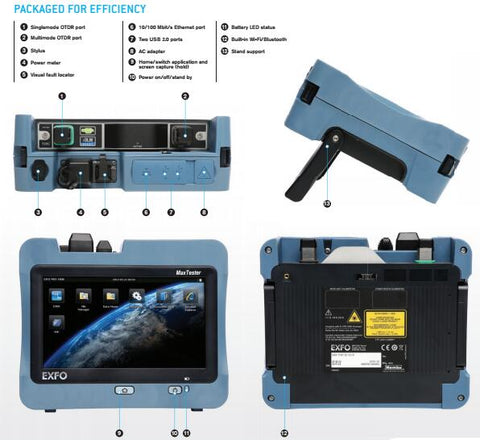

THE ENTRY-LEVEL SOLUTION DESIGNED FOR ALL YOUR TESTING NEEDS

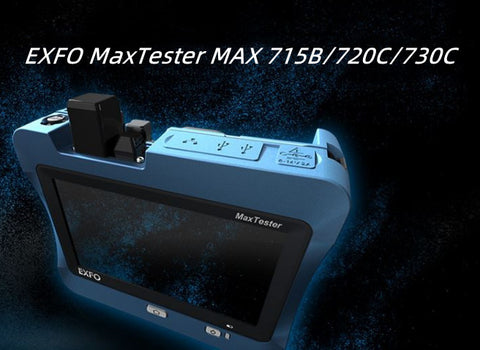

Other models available:
![Cheap Price EXFO MaxTester MAX 720C 730C OTDR](https://cdn.shopifycdn.net/s/files/1/0609/4304/0761/files/MaxTester-730C-OTDR_480x480.jpg?v=1652756486)

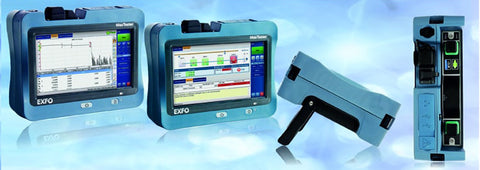

- MaxTester 720C LAN/WAN access OTDR—optimized for multimode and singlemode access network installation and maintenance
- MaxTester 730C PON/Metro OTDR—optimized for FTTx/MDU and short metro fiber deployments and troubleshooting
![EXFO MaxTester 715B / 720C /730C Otdr - Splicermarket.com](https://cdn.shopifycdn.net/s/files/1/0609/4304/0761/files/what-is-EXFO-MaxTester-715b_480x480.jpg?v=1652681790)
Packaging & Delivery
Selling Units:
Single item
Single package size:
42X20X36 cm
Single gross weight:
7.000 kg
Package Type:
Black Soft Bag and then carton box.
