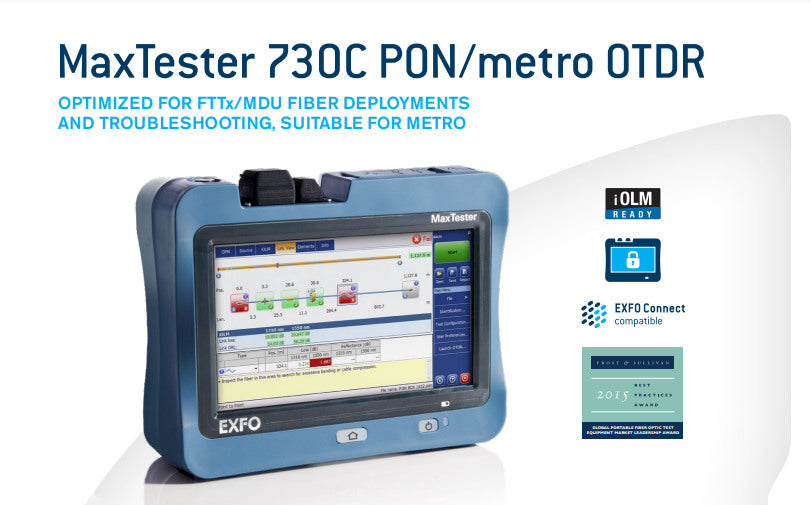

What is the MaxTester 730C ?
The MaxTester 730C (MAX-730C) is designed for testing through FTTH/PON splitters for end-to-end characterization. This Handheld OTDR is ideal for FTTH/PON testing, live fiber troubleshooting and metro range testing.
The Exfo MAX-730C advantage:
7-inch, outdoor-enhanced touchscreen
Characterize and troubleshoot links up to 100 km with a dynamic range of 39 dB
Optimized to test through optical splitters and characterize FTTH links
Find more problems closer to the splitter than other OTDRs thanks to the highest resolution for PON testing and the shortest PON dead zone available
Key Features
12-hour autonomy
Handy, lightweight, powerful, tablet-inspired design
Rugged design built for outside plant
7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry
Dynamic range: 39/38/39 dB
Dead zones: EDZ 0.6 m, ADZ 2.5 m
Introduction and application of MaxTester 730C
FTTx/PON testing through splitters (up to 1x128)
Live fiber troubleshooting
Metro links testing (P2P)
Access network testing (P2P)
Specifications
|
Display |
Two USB 2.0 ports |
|
Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
|
Batteries |
Rechargeable lithium-polymer battery |
|
Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
|
Wavelength |
1310/1550nm |
|
Dynamic range |
39/38dB |
|
Event dead zone |
1m |
|
Attenuation dead zone |
4m |
|
Distance range |
0.1 to 160 km |
|
Pulse width |
5 ns to 20 us |
|
Linearity |
±0.05dB |
|
Loss threshold |
0.01dB |
|
Loss resolution |
0.001dB |
|
Sampling resolution |
0.04 to 5m |
|
Sampling points |
Up to 256 000 |
