PON power meter FHP2P01 PON power meter

PON power meter FHP2P01 PON power meter

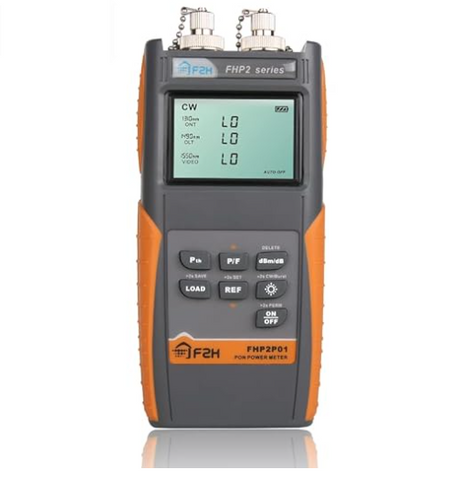

FHP2P01 PON power meter is a small size, low loss and good quality handed-held optical power meter. It is designed for the testing, installation and maintenance of FTTX PON network, which can be used for APON, BPON, EPON and GPON network. FHP2P01 has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm. It can directly show the status of pass, warning or failure by threshold testing. FHP2P01 is the ideal tool for PON setting and maintenance.



Features:

Handed-held, Easy-to-carry and use

P/F testing and normal testing mode

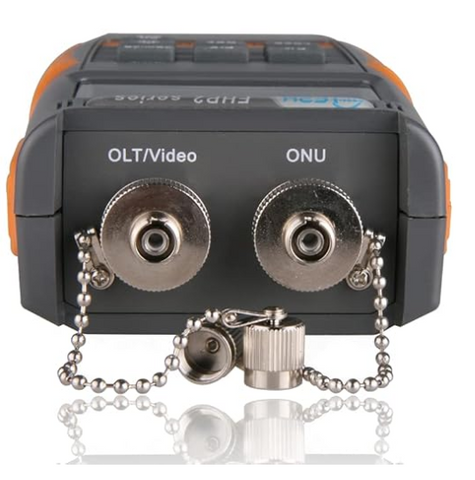

Two testing ports with " ONU " " OLT/Video "

Support 1310nm upstream CW/brust signal and 1490nm /1550nm downstream signal

Design for networks of APON, BPON,EPON and GPON

Threshold programmable

Huge data storage capability

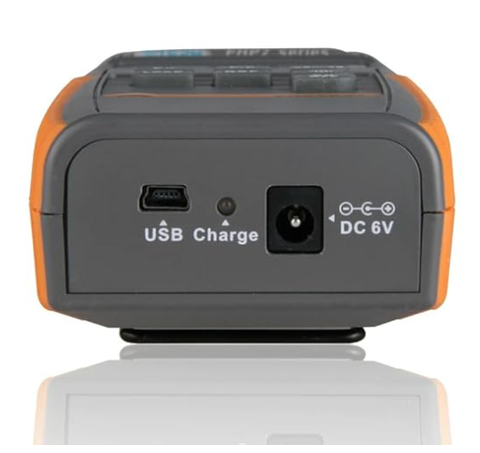

USB integrated

Built-in battery charger

2pcs of AAA battery as power supply

Provided Software for communicating with upper-computer



Specifications:

Calibrated Wavelength

1310nm (Burst)

1310nm (CW)

1490 nm

1550 nm

Linearity

± 0.2@1550 ≥ -40dBm

Isolation Rate

>40@1490nm

>40@1310nm

>40@1310nm

>40@1550nm

>30@1550nm

>30@1490nm

Measuring Range (dBm)

-30~+16 (1310nm)

-40~+16 (1490nm)

-50~+16 (1550nm)

Insertion Loss(dB)

1.5

Broadband

1260~1360 (1310nm)

1480~1500 (1490nm)

1539~1565 (1550nm)

Accuracy

0.5db+-1nW @ 1550 nm

Threshold

10 groups(configure via PC-software)

Data storage

900

Accessories adaptors

FC/PC,SC/PC (standard)

ST/PC (optional)
